C27 and C32 Generator Sets Engines Disassembly and Assembly Page 15

Disassembly and Assembly
RENR9716-02 15
Disassembly and Assembly Section
NOTICE
When an electronic unit injector is replaced, the new
electronic inj
ector code must be programmed into the
engine’s personality module software by using the cal-
ibration menu on the Electronic Service Tool. If the
new electroni
c injector code is not entered, the char-
acteristics of the previous electronic unit injector is as-
sumed.
If it is not possible to immediately reprogram the elec-
tronic injector code into the personality module soft-
ware, the eng
ine will not be severely harmed. The new
electronic injector code should be reprogrammed as
quickly as possible in order to optimize engine perfor-
mance.
6. Position electronic unit injector (2) in the cylinder
head.
7. Install spacer (5), clamp (6), and bolt (4). Tighten
the bolt to a torque of 55 ± 10 N·m (41 ± 7 lb ft).
8. Install bridge assemblies (3).
9. Connect har
ness assembly (1). Tighten the nuts
toatorqueof2.5±0.25N·m(22±2lbin).
End By:
a. Install the rocker arms and the rocker arm shaft.
Refer to Dis
assembly and Assembly, “Rocker Arm
and Shaft - Install”.
i02300212
Electron ic U nit In jector Sleeve
-Remove
SMCS Code: 1713-011
Removal Procedure
Table 7
Required Tools
Tool
Part
Number Part Descr
iption
Qty
A
9U-6891
Injector Tool Group
1
Start By:
a. Remove the electronic unit injectors. Refer to
Disassembly and Assembly, “Electronic Unit
Injector - Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Drain the coolant from the cooling system into a
suitable container for storage or disposal. Refer
to Operation and Maintenance Manual, “Cooling
System Coolant - Change”.

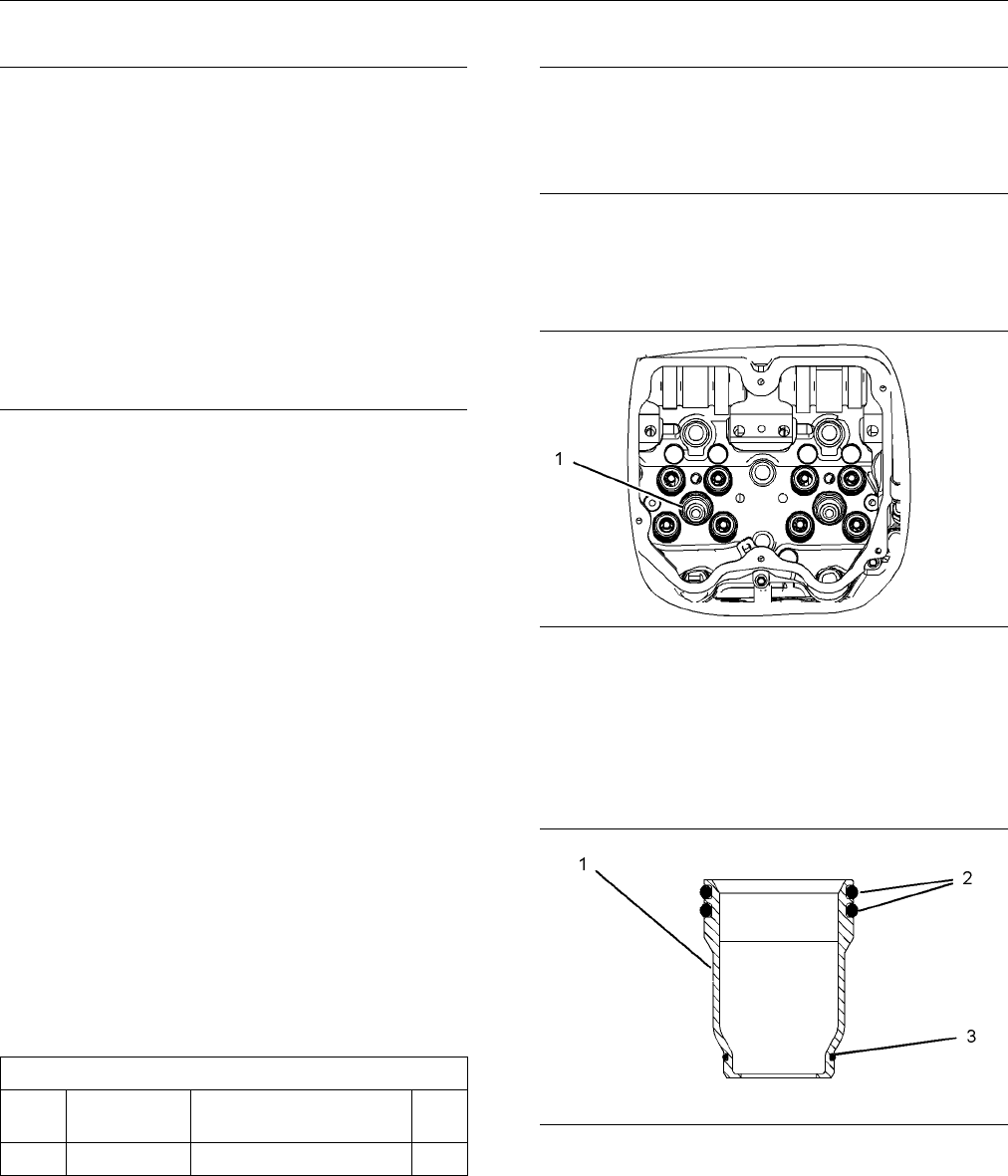

g01043124
Illustration 43
2. Install Tooling (A) in electronic unit injector sleeve
(1).
3. Tighten the nut on Tooling (A) until the electronic
unit injector sleeve is pulled free of the cylinder
head.
g01073635
Illustration 44
4. Remove O-ring seals (2) and O-ring seal (3) from
electronic unit injector sleeve (1).
