C27 and C32 Generator Sets Engines Disassembly and Assembly Page 59

Disassembly and Assembly
RENR9716-02 59
Disassembly and Assembly Section

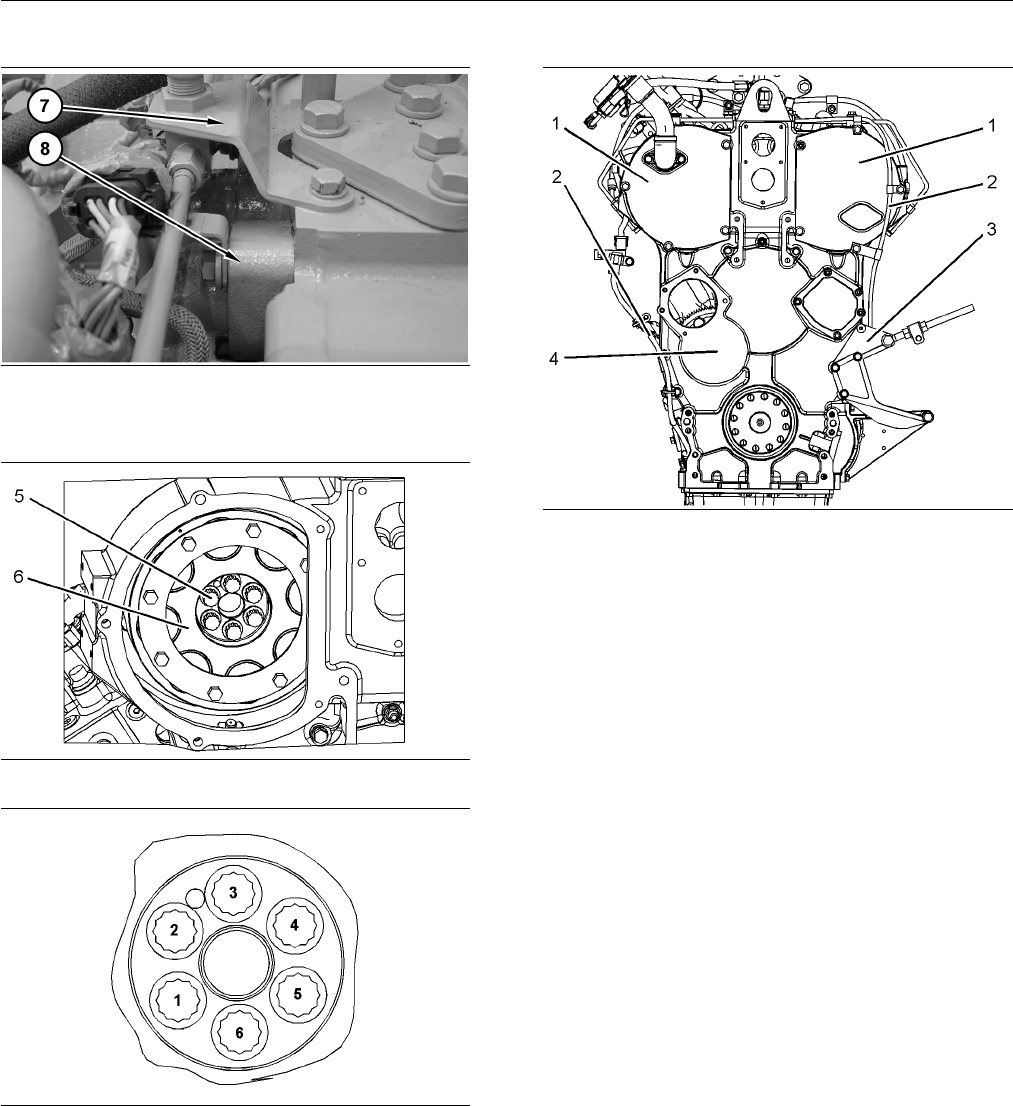

g01221953
Illustration 174
6. Connect elbows (8) and bracket (7).
g01221941
Illustration 175
g01151441
Illustra
tion 176
7. Install dampers (6) and bolts (5).
8. Tighten the bolts to a torque of 240 ± 40 N·m
(177 ± 30 lb ft). Tighten the bolts in the following
sequence
:1,4,2,5,3,6,1,4.
g01221893
Illustration 177
9. Install alternator bracket (3) on front housing (4).
10. Install covers (1).
11. Connect hose assemblies (2) to front housing (4).
End By:
a. Install the camshaft position sensor. Refer to
Disassembly and Assembly, “Camshaft Position
Sensor - Remove and Install”.
b. Install the crankshaft position sensor. Refer to
Disassembly and Assembly, “Crankshaft Position
Sensor - Remove and Install”.
c. Install the alternator. Refer to Disassembly and
Assembly, “Alternator - Remove and Install”.
d. Install the front engine support. Refer to
Disassembly and Assembly, “Engine Support
(Front) - Remove and Install”.
e. Install the crankshaft front seal. Refer to
Disassembly and Assembly, “Crankshaft Front
Seal - Install”.
f. Install the water pump. Refer to Disassembly and
Assembly, “Water Pump - Install”.
g. Install the water temperature regulator housing.
Refer to Disassembly and Assembly, “Water
Temperature Regulator Housing - Remove and
Install”.
