C27 and C32 Generator Sets Engines Disassembly and Assembly Page 35

Disassembly and Assembly
RENR9716-02 35
Disassembly and Assembly Section
i02576096
Cooling System Package
(Radiator, Aftercooler, Fuel
Cooler) - Rem o
ve
SMCS Code: 1063-011; 1353-011; 1712-011
Removal Procedure
Table 26
Required Tool
s
Tool
Part
Number
Part Descript
ion
Qty
A
189-0410
Shackle As 2
Start By:
a. Remove the fan. Refer to Disassembly and
Assembly, “Fan - Remove and Install”.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
1. Drain the coolant from the cooling system into
a suitable container for storage or for disposal.
Refer to Operation and Maintenance Manual,
“Cooling System Coolant (ELC) - Change”.

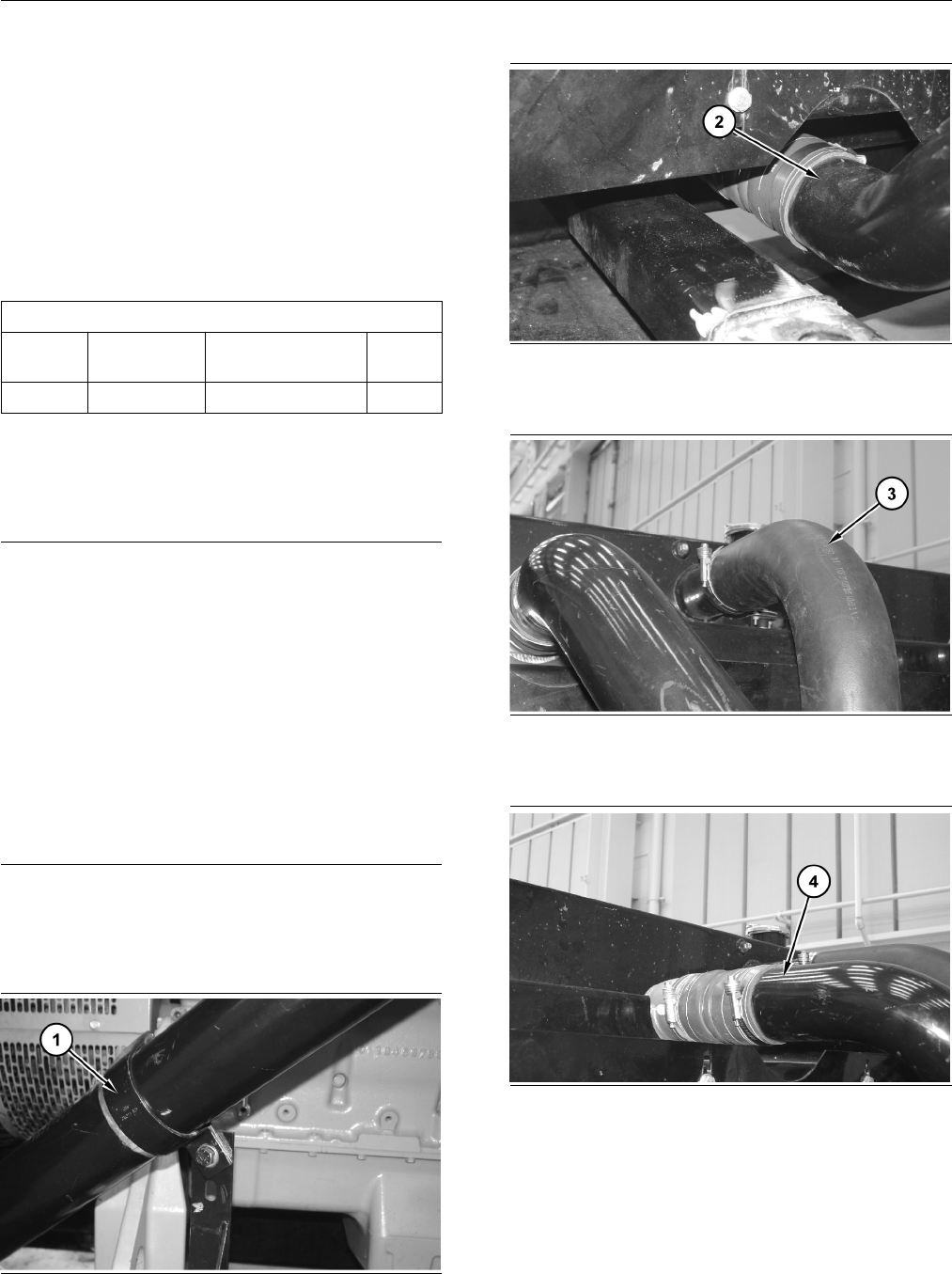

g01290908
Illustration 87
2. Remove clamp (1). Repeat for the opposite side.
g01290915
Illustration 88
3. Disconnect bottom aftercooler tube (2).
g01290916
Illustration 89
4. Disconnect top radiator hose (3).
g01290917
Illustration 90
5. Disconnect top aftercooler tube (4).
