C27 and C32 Generator Sets Engines Disassembly and Assembly Page 36

Disassembly and Assembly
36 RENR9716-02
Disassembly and Assembly Section
g01290930
Illustration 91

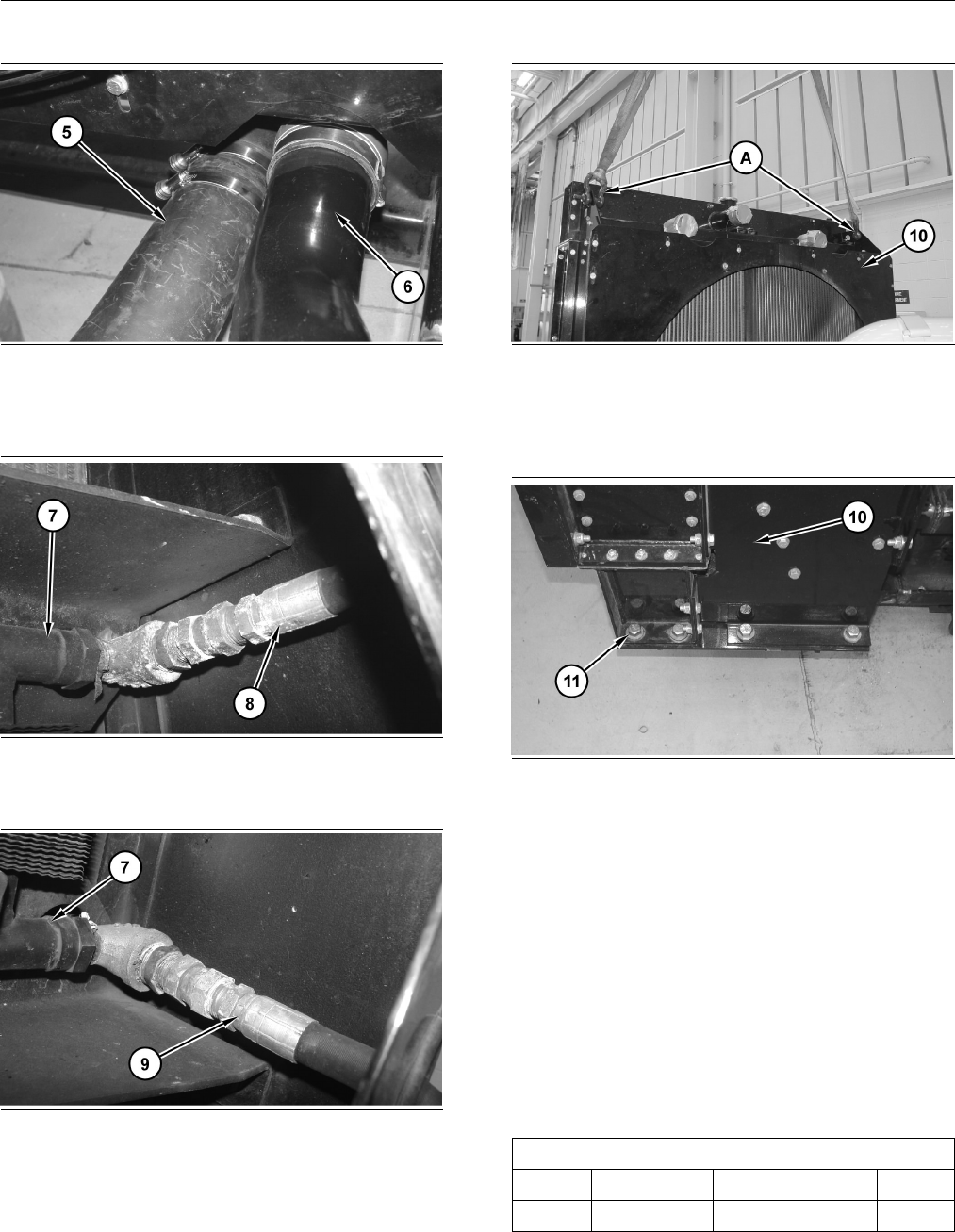

6. Disconnect bottom radiator hose (5). Disconnect
bottom a ftercooler tube (6).
g01290934
Illustrat
ion 9 2
7. Disconnect hose assembly (8) from fuel cooler (7).
g01290939
Illustration 93
8. Disconnect hose assembly (9) from fuel cooler (7).
g01290940
Illustration 94
9. Attach Tooling (A) and a suitable lifting device
onto cooling package (10). The weight of cooling
package (10) is approximately 544 kg (1200 lb).
g01290941
Illustration 95
10. Remove bol
ts (11). Repeat for the opposite side.
Remove cooling package (10).
i02576308
Cooling System Packag e
(Radiator, Afterco oler, Fu el
Cooler) - Install
SMCS Code: 1063-012; 1353-012; 1712-012
Installation Procedure
Table 27
Required Tools
Tool Part Number Part Description
Qty
A 189-0410
Shackle As
2
