C27 and C32 Generator Sets Engines Disassembly and Assembly Page 43

Disassembly and Assembly
RENR9716-02 43
Disassembly and Assembly Section
NOTICE
Care must be taken to ensure that fluids are contained
during perform
ance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compar
tment or disassembling any compo-
nent containing fluids.
Refer to Speci
al Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.

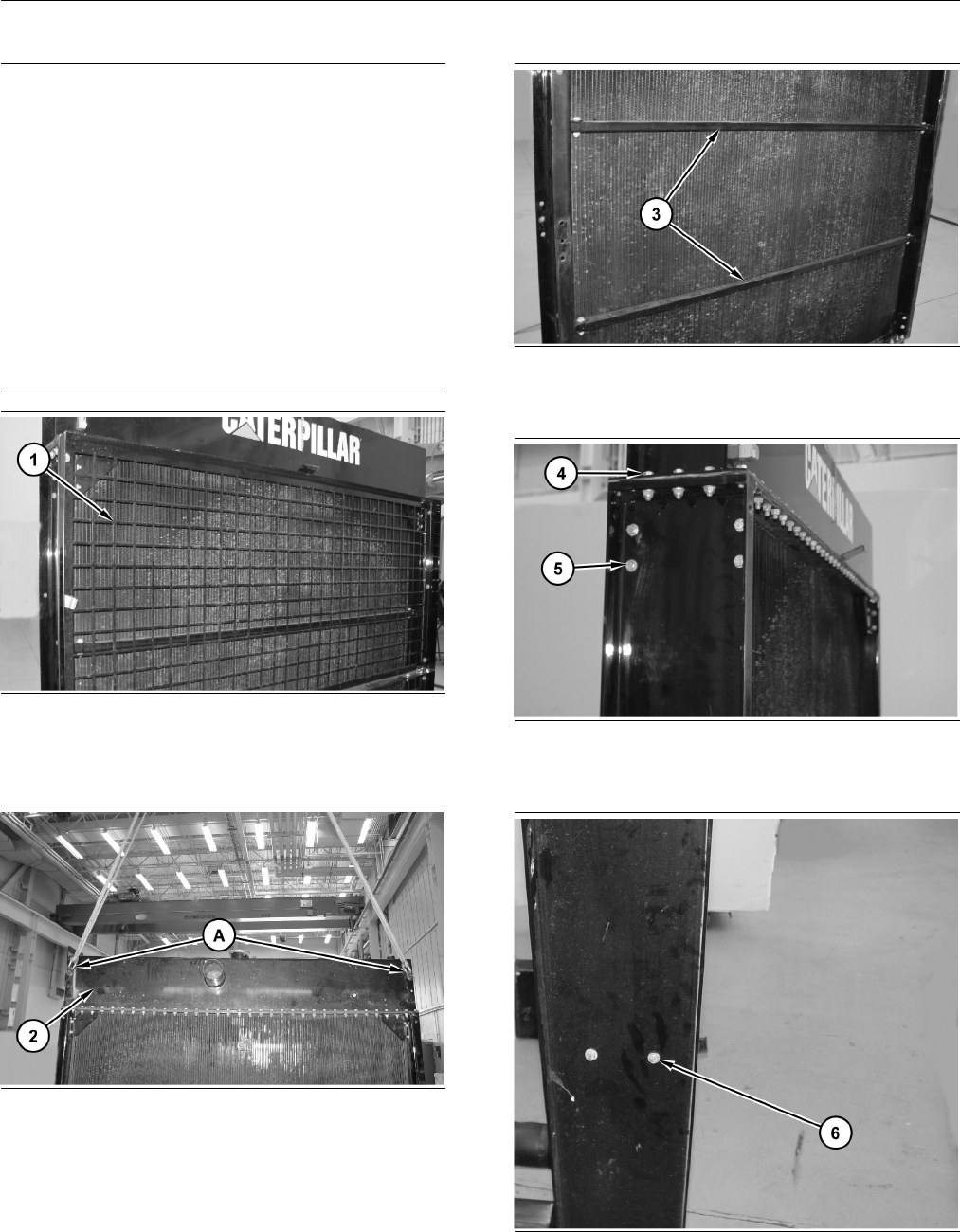

g01292911
Illustration 125
1. Remove the upper and the lower radiator guards
(1).
g01292912
Illustration 126
2. Attach Tooling (A) and a suitable lifting device onto
radiator top tank (2). The weight of the radiator is
approximately 227 kg (500 lb).
g01294577
Illustration 127
3. Remove the upper and the lower braces (3).
g01294578
Illustration 128
4. Remove bolts (4) and remove bolts (5).
g01294579
Illustration 129
5. Remove bolts ( 6).
