C27 and C32 Generator Sets Engines Disassembly and Assembly Page 23

Disassembly and Assembly
RENR9716-02 23
Disassembly and Assembly Section
Installation P
rocedure
Table 14
Required Tools
Tool Part Number Part Description Qty
A
5S-1330
Valve Spring
Compressor
1
NOTICE
Keep all parts clean from contaminants.
Contaminants m
ay cause rapid wear and shortened
component life.
Note: A small amount of grease can be used to hold
the retainer locks in position during installation.
1. Lubricate the valves with clean engine oil. Install
the valves in the cylinder head.

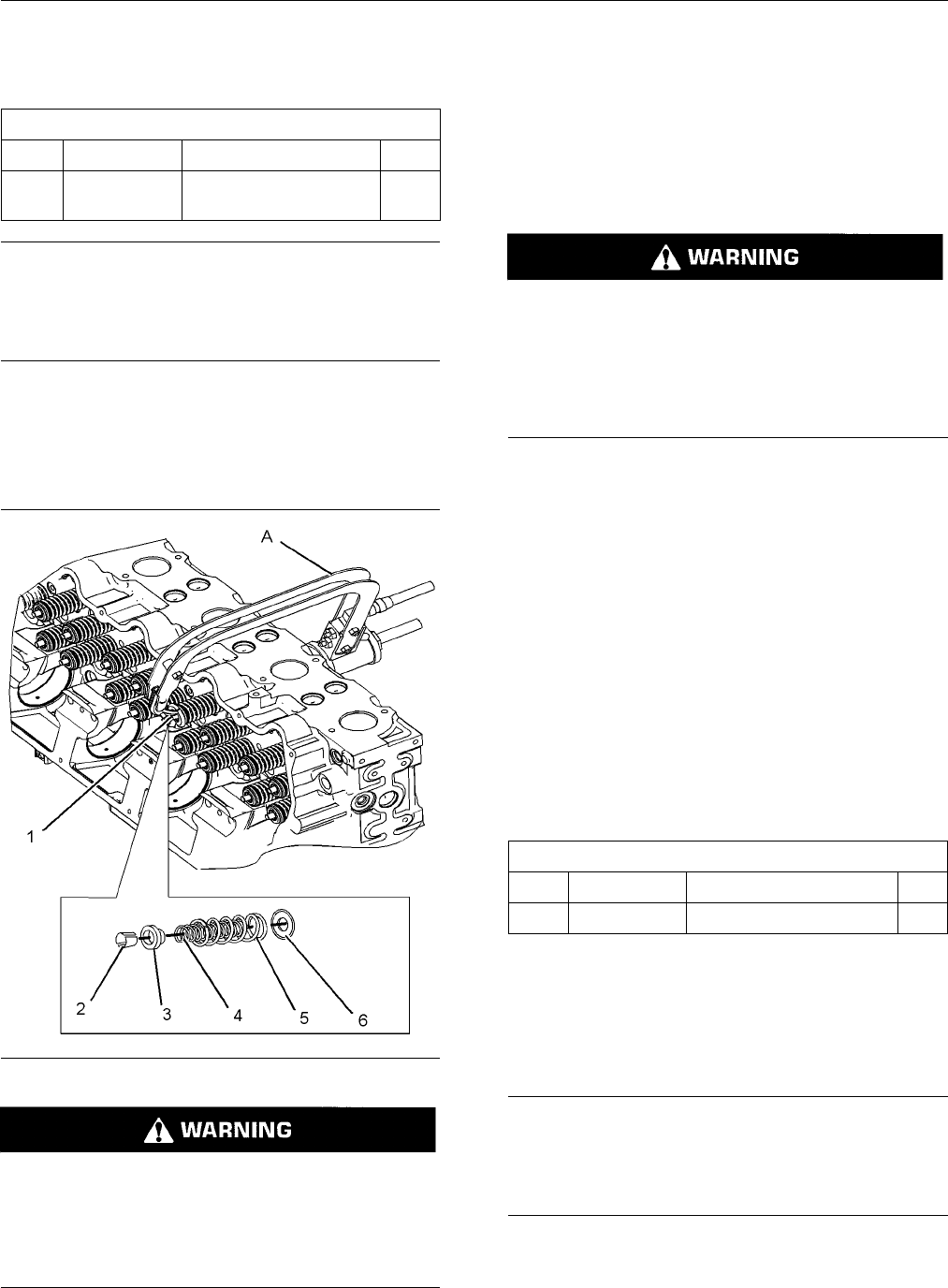

g01015263
Illustration 60
Improper assembly o f parts that are spring loaded
can cause bodily injury.
To prevent possible injury, follow the established
assembly procedure and wea r protective equip-
ment.
2. Install washer (6) on the valve guide.
3. Install inner valve spring (4) and outer valve spring
(5) on valve (1)
.
4. Install valve rotator (3) on valve (1).
5. Use Tooling (A) to compress inner valve spring
(4) and outer valve spring (5). Install valve spring
keepers (2) on
valve (1).
The valve spring keepers can be thrown from
the valve when the valve spring compressor is
released. En
sure that the valve spring keepers
are properly installed on the valve stem. To help
prevent personal injury, keep away from the front
of the valve s
pring keepers and v alve springs
during the installation of the valves.
6. Carefully re
move Tooling (A).
End By:
a. Install the cylinder head. Refer to Disassembly
and Assembly, “Cylinder Head - Install”.
i02109151
Inlet and Exhaust Valve Guides
- Rem ove and Insta ll
SMCS Code: 1104-010
Removal Procedure
Table 15
Required Tools
Tool Part Number Part Description Qty
A
(1)
9U-6895
Valve Guide Driver
1
(1)
Part of 9U-7530 Engine Tool Group
Start By:
a. Remove the i
nlet and exhaust valves. Refer to
Disassembly and Assembly, “Inlet and Exhaust
Valves - Remove and Install”.
NOTICE
Keep all pa
rts clean from contaminants.
Contaminants may cause rapid wear and shortened
component
life.
