C27 and C32 Generator Sets Engines Disassembly and Assembly Page 38

Disassembly and Assembly
38 RENR9716-02
Disassembly and Assembly Section

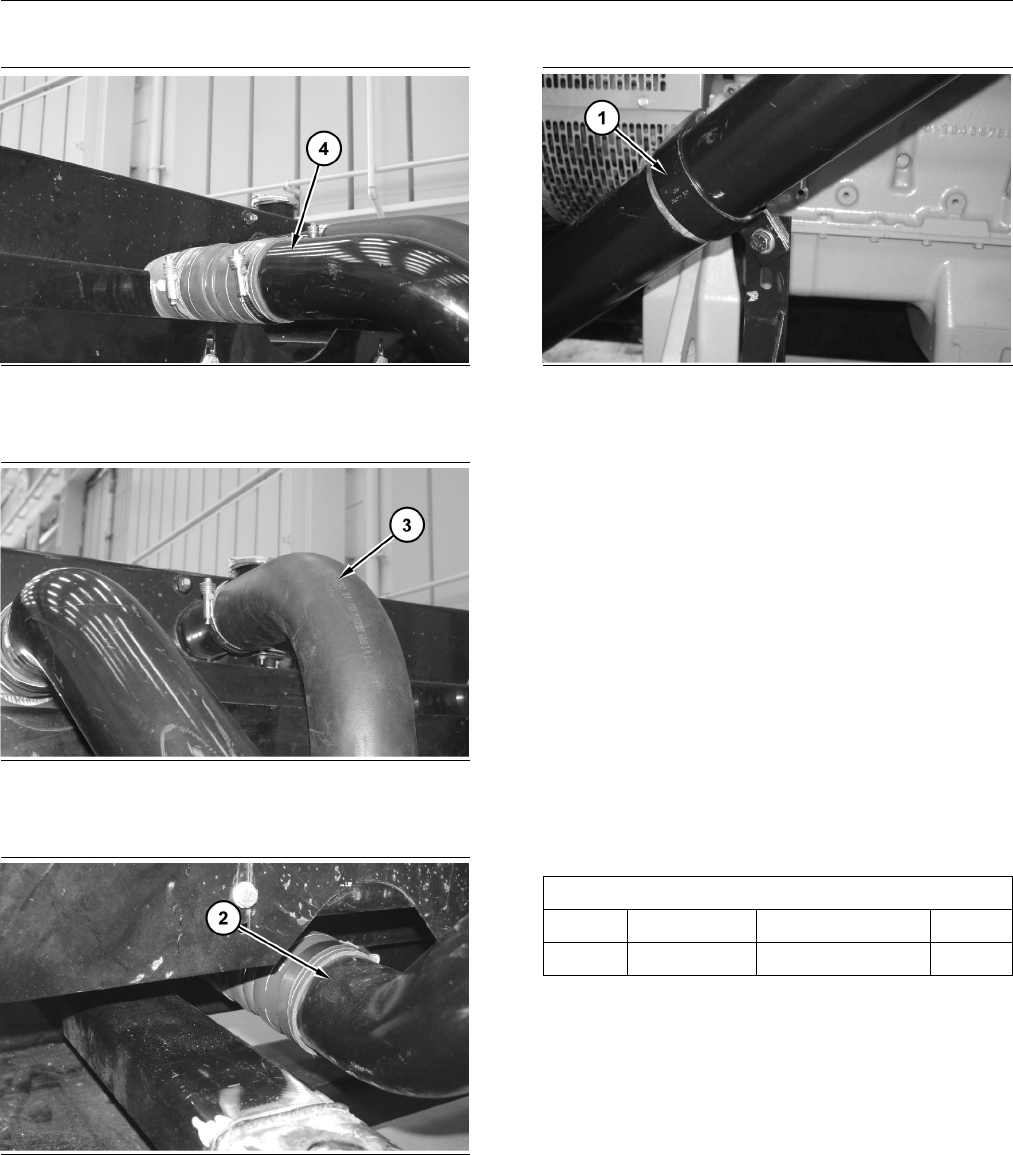

g01290917
Illustration 101
6. Connect top aftercooler tube (4).
g01290916
Illustration 102
7. Connect top radiator hose (3).
g01290915
Illustration 103
8. Connect bottom aftercooler tube (2).
g01290908
Illustration 104
9. Install clamp (1). Repeat for the opposite side.
10. Fill the cooling system with coolant. Refer to
Operation and Maintenance Manual, “Cooling
System Coolant (ELC) - Change”.
End By:
a. Install the fan. Refer to Disassembly and
Assembly, “Fan - Remove and Install”.
i02584900
Aftercoole
r-Remove
SMCS Code: 1063-011
Removal Procedure
Table 28
Required To
ols
Tool Part Number Part Description
Qty
A 189-0410
Shackle As
2
Start By:
a. Remove the fan. Refer to Disassembly and
Assembly, “Fan - Remove and Install”.
