C27 and C32 Generator Sets Engines Disassembly and Assembly Page 39

Disassembly and Assembly
RENR9716-02 39
Disassembly and Assembly Section
NOTICE
Care must be taken to ensure that fluids are contained
during perform
ance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compar
tment or disassembling any compo-
nent containing fluids.
Refer to Speci
al Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
1. Drain the coolant from the cooling system into
a suitable container for storage or for disposal.
Refer to Oper
ation and Maintenance Manual,
“Cooling System Coolant (ELC) - Change”.

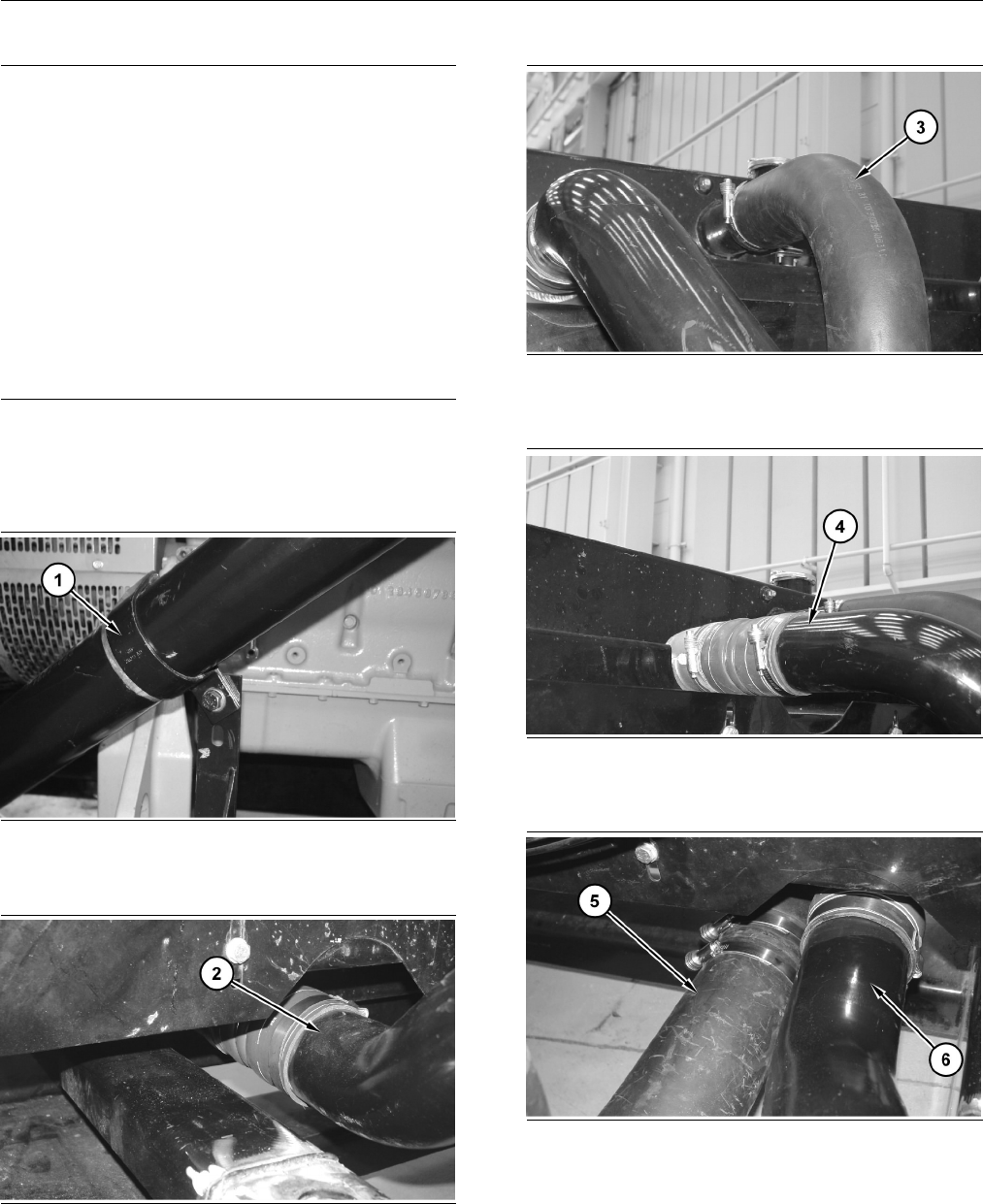

g01290908
Illustration 105
2. Remove clamp (1). Repeat for the opposite side.
g01290915
Illustr
ation 106
3. Disconnect bottom aftercooler tube (2).
g01290916
Illustration 107
4. Disconnect top radiator hose (3).
g01290917
Illustration 108
5. Disconnect top aftercooler tube (4).
g01290930
Illustration 109
6. Disconnect bottom radiator hose (5). Disconnect
bottom aftercooler tube (6).
