C27 and C32 Generator Sets Engines Disassembly and Assembly Page 55

Disassembly and Assembly
RENR9716-02 55
Disassembly and Assembly Section
i02444556
Cranksh aft Front Seal - Install
SMCS Code: 1160
-012
Installation P
rocedure
Table 43
Required Tools
Tool
Part
Number Part Description Qty
5P-1733
Seal Locator 1
5P-1737 Bolt 3
9S-8858 Nut (Seal Installer) 1
B
6V-6142
Seal Installer 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Clean the outside diameter of the crankshaft.
g01221389

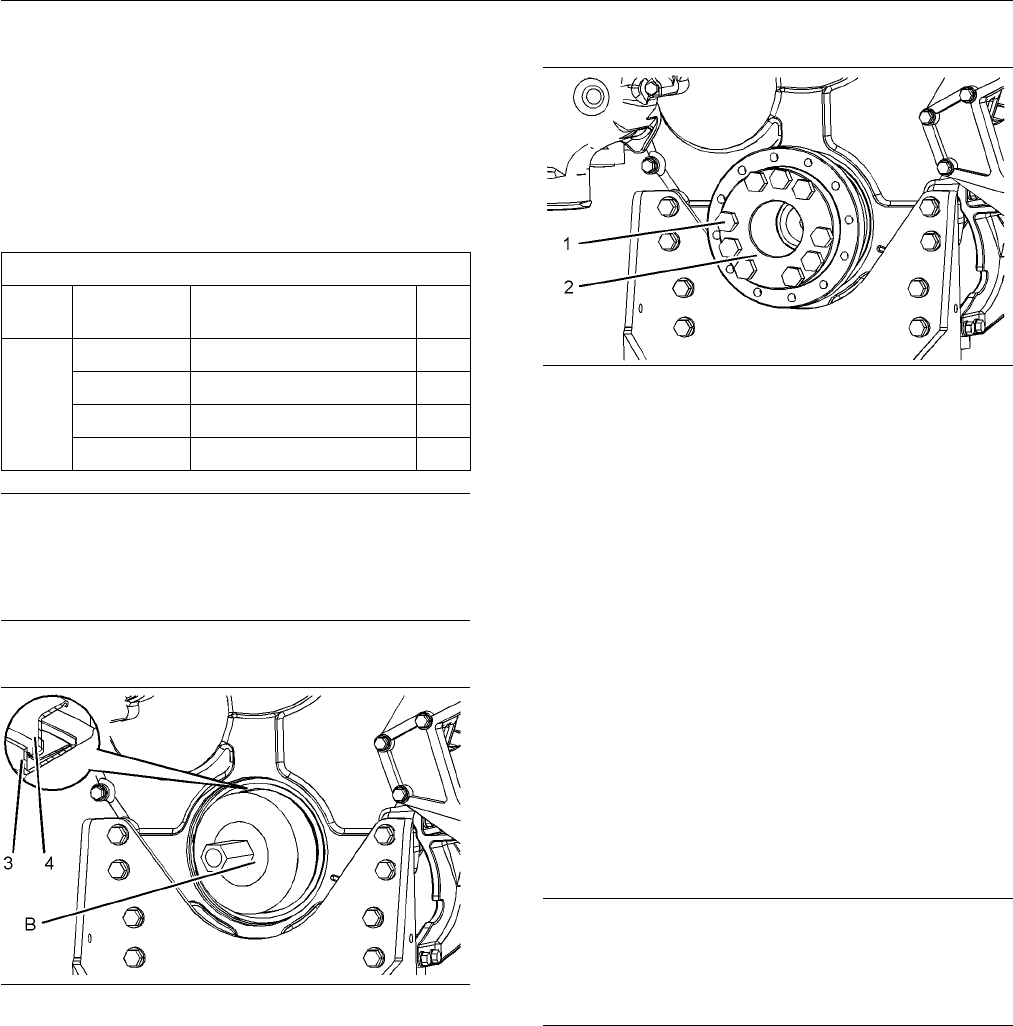

Illustration 163
2. Use Tooling (B) to install crankshaft front seal (4)
and crankshaft wear sleeve (3) as a unit.
Note: Install the crankshaft front seal with the arrow
that shows the direction of crankshaft rotation toward
the front of the engine.
g01221272
Illustration 164
3. Install adapter (2) and bolts (1).
End By:
a. Install the crankshaft vibration damper and pulley.
Refer to Disassembly and Assembly, “Vibration
Damper and Pulley - Remove and Install”.
i02292422
Gear Group (
Front) - Remove
SMCS Code: 1206-011
Removal Procedure
Start By:
a. Remove the f
ront housing. Refer to Disassembly
and Assembly, “Housing (Front) - Remove”.
NOTICE
Keep all par
ts clean from contaminants.
Contaminants may cause rapid wear and shortened
component l
ife.
