C27 and C32 Generator Sets Engines Disassembly and Assembly Page 77

Disassembly and Assembly
RENR9716-02 77
Disassembly and Assembly Section
1. Install the No. 7 camshaft bearing (rear), as
follows:
a. Insert the large end of Tooling (B) into the No.
7 camshaft bor
e.
b. Position Tooling (C) over Tooling (A). Install
Tooling (A) th
rough the cylinder head on
Tooling (B).
c. Position cams
haft bearing (1) on Tooling (B).
Install Tooling (E) on Tooling (B).
Note: Refer t
oSpecifications, “Cylinder Head” for
appropriate information for the orientation of the
camshaft bearings in the cylinder head.
d. Use Tooling (A) in order to pull camshaft
bearing (1) into the camshaft bore.
Note: When the chamfer of Tooling (E) contacts the
face of the camshaft bore, the camshaft bearing is
properly in
stalled.

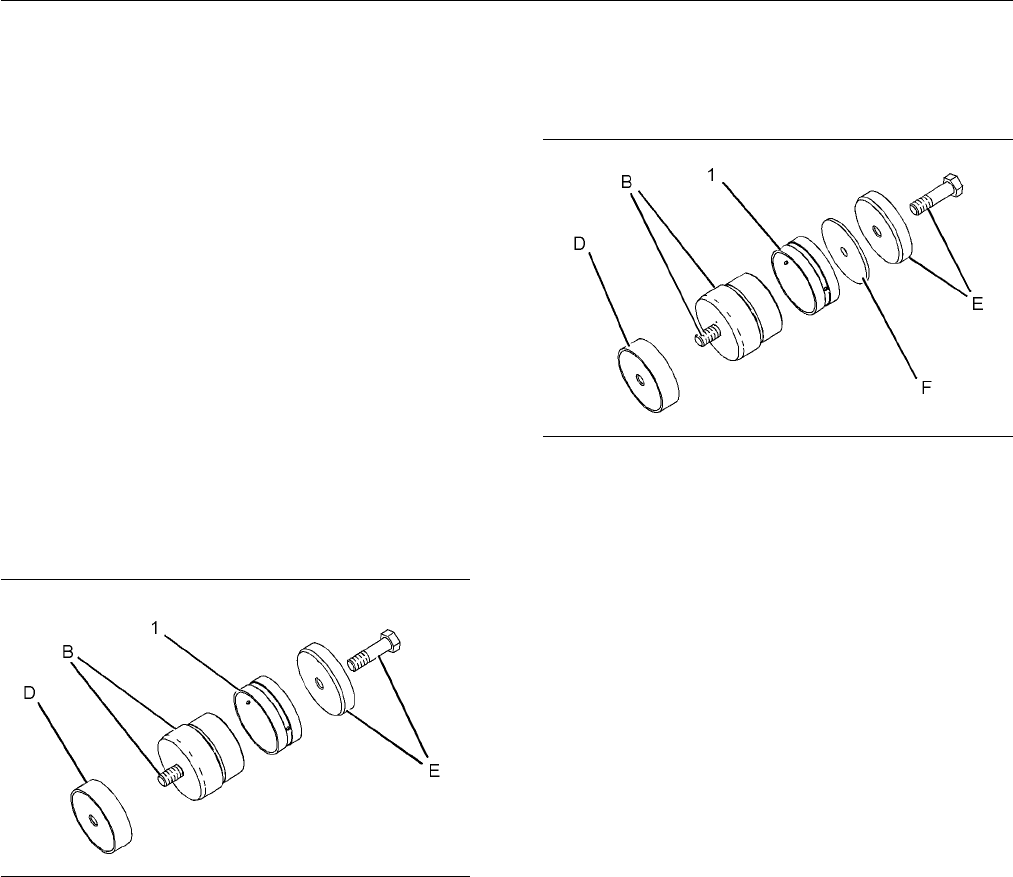

g01159756
Illustration 235
2. Install the No. 6 through No. 2 camshaft bearings,
as follows:
a. Insert the large end of Tooling (B) into the
camshaft bore.
Note: Use Tooling (D) to align Tooling (A) and Tooling
(B) with the camshaft bearing bores. Install Tooling
(D) in the inside diameter of any installed camshaft
bearing between Tooling (A) and Tooling (B).
b. Install Tooling (A) on Tooling (B). Position
camshaft bearing (1) on Tooling (B). Install
Tooling (E) on Tooling (B).
Note: Refer to Specifications, “Cylinder Head” for
appropriate information for the location and the
orientation of the camshaft bearings in the cylinder
head.
c. Use Tooling (A) in order to pull camshaft
bearing (1) into the camshaft bore.
Note: When the chamfer of Tooling (E) contacts the
face of the cams
haft bore, the camshaft bearing is
properly installed.
g01159758
Illustration 236
3. Install the No. 1 camshaft bearing (front), as
follows:
a. Insert the large end of Tooling (B) into the No.
1 camshaft bore. Assemble Tooling (A) and
Tooling (D) on Tooling (B).
b. Position camshaft bearing (1) on Tooling (B).
Install Tooling (E) and Tooling (F) on Tooling
(B).
Note: Refer to Specifications, “Cylinder Head” for
appropriate information for the location and the
orientation of the camshaft bearings in the cylinder
head.
Note: Tooling (F) is used to seat the No. 1 camshaft
bearing to the correct depth in the camshaft bore.
c. Use Tooling (A) in order to pull the No. 1
camshaft bearing into the No. 1 camshaft bore.
When the chamfer of Tooling (E) contacts
the face of the camshaft bore, the camshaft
bearing is properly installed.
End By:
a. Install the camshaft. Refer to Disassembly and
Assembly, “Camshaft - Install”.
