Caterpillar 3516B and 3516B High Displacement Engines for Caterpillar Built Machines Troubleshooting Page 87

Troubleshooting
RENR5622 87
Troubleshooting Section

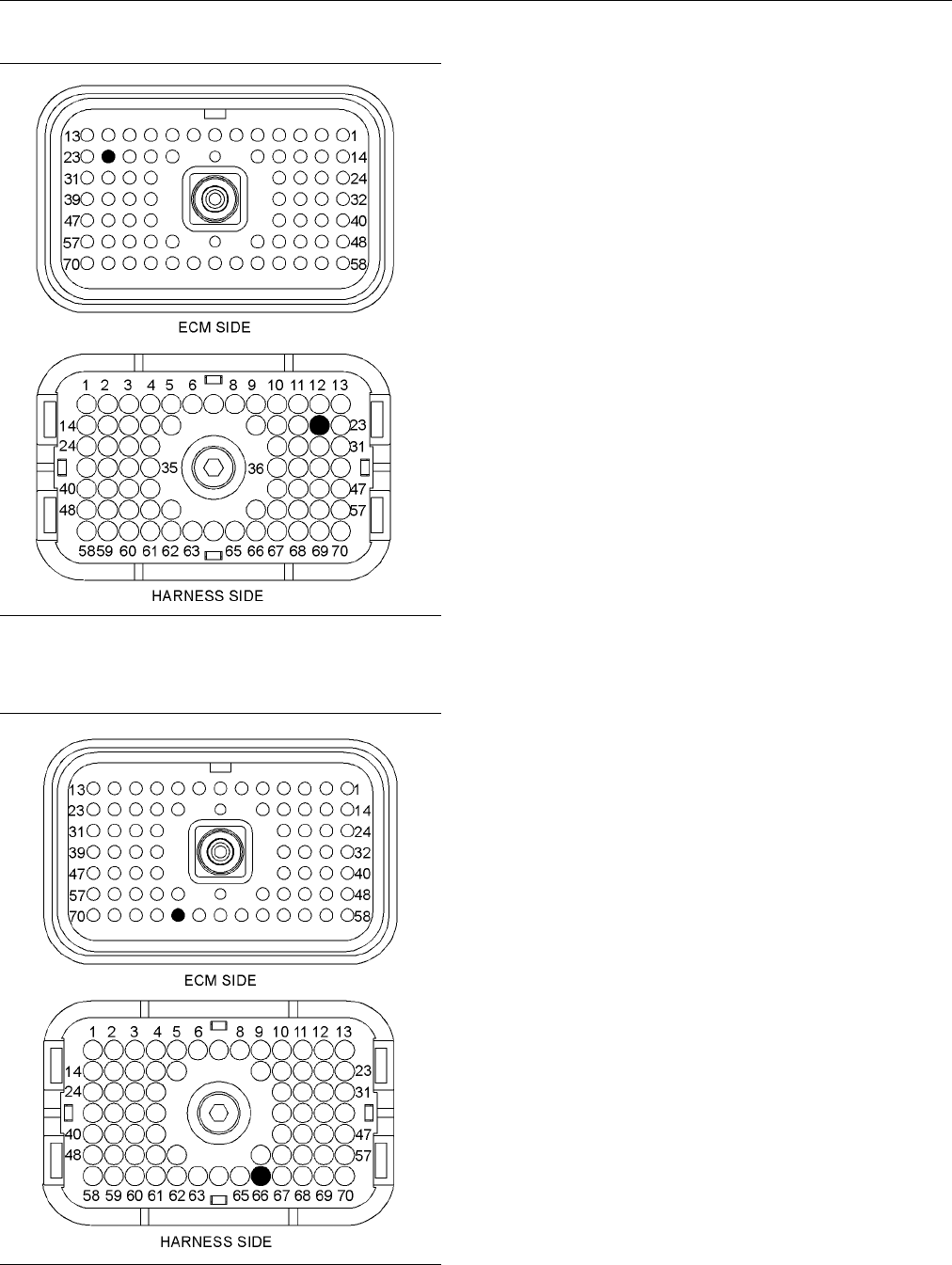

g01203954
Illustrat
ion 30
P1 E CM connector
(P1-22) Low oil level
g01203955
Illustration 31
P2 E CM connector
(P2-66) Digital return
Test Step 1. Inspect E lectrical Connectors
and Wiring
A. Turn the keyswitch to the OFF position.
B. Thoroughly in
spect the ECM connectors J1/P1
and J2/P2. Inspect the connector for the low oil
level switch. Refer to Troubleshooting, “Inspecting
Electrical C
onnectors” for details.
C. Perform a 45 N (10 lb) pull test on each of the
wires in the E
CM connector that are associated
with the circuit.
D. Check the ECM
connector (allen head screw)
for the proper torque. Refer to Troubleshooting,
“Inspecting Electrical Connectors” for details.
E. Check the harness and the wiring for abrasion
and for pinch points.
Expected Result:
All connect
ors, pins, and sockets are completely
coupled and/or inserted. The harness and wiring are
free of corrosion, of abrasion, and of pinch points.
Results:
•
OK – The harn
ess and wiring are OK. Proceed
to Test Step 2.
•
Not OK – The r
e is a problem in the connectors
and/or wiring.
Repair: Re
pair the connectors or wiring and/or
replace the connectors or wiring. Ensure that all of
thesealsareproperlyinplaceandensurethatthe
connector
s are completely coupled.
Verify that the repair eliminates the problem.
STOP.
Test Step 2
. Check the Level of the
Engine Oi
l
A. Ensure that the correct engine oil dipstick is
installe
d.
B. Check the engine oil level.
Expected Result:
The engin
eoilisatthecorrectlevel.
Results:
•
OK – The engine oil level is correct. Proceed to
Test Step 3.
•
Not OK – The engine oil level is low.
Previous page
Next page
