Caterpillar 3516B and 3516B High Displacement Engines for Caterpillar Built Machines Troubleshooting Page 16

Troubleshooting
16 RENR5622
Troubleshooting Section
Connecting Cat ET and the
Communication
Adapter II
g01115382

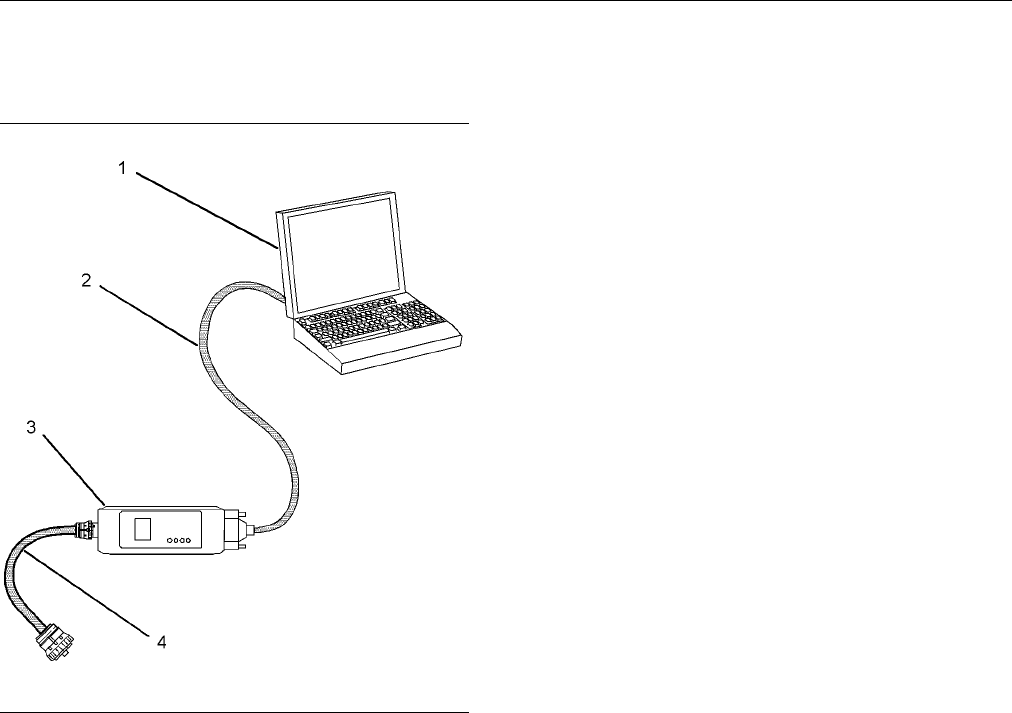

Illustration 10
(1) Personal computer (PC)
(2) 196-005 5 Adapter Cable A s
(3) 171-4401 Communication Adapter As
(4) 207-684 5 Adapter Cable A s
Note: Items (2), (3), and (4) are part of the 171-4400
Communication Adapter Gp.
Use the following procedure in order to connect Cat
ET and the Communication Adapter II.
1. Remove the electrical power to the ECM.
2. Connect cable (2) between the “COMPUTER”
end of communication adapter (3) and the RS232
serial port of PC (1).
Note: The 237-7547 Adapter Cable As is required
to connect to the USB port on computers that are not
equipped with a RS232 serial port.
3. Connect cable (4) between the “DATA LINK” end
of communication adapter (3) and the service tool
connector.
4. Restore electrical power t o the ECM. If Cat ET and
the communicat
ion adapter do not communicate
with the Electronic Control Module (ECM), refer
to troubleshooting without a diagnostic code
Troubleshoot
ing, “Electronic Service Tool Will Not
Communicate with ECM”.
i02415084
Diagnostic Code List
SMCS Code: 19
01
Cross-Refer
ence Information for
Diagnostic Codes
Table 4 is a list of the diagnostic codes for the engine.
The diagnostic codes are cross-referenced with the
appropriate
functional test or the procedure that can
be used to troubleshoot the code.
Further exp
lanations of diagnostic codes are
described after Table 4.
