Caterpillar 3516B and 3516B High Displacement Engines for Caterpillar Built Machines Troubleshooting Page 122

Troubleshooting
122 RENR5622
Troubleshooting Section
The connection of any e lectrical equipment and
the disconnection of any electrical equipment may
cause an explosion hazard which may result in in-
jury or death. Do not connect any electrical equip-
ment or disconnect any electrical equipment in an
explosive atmosphere.
Test Step 1. Check Connectors for
Moisture and Corrosion

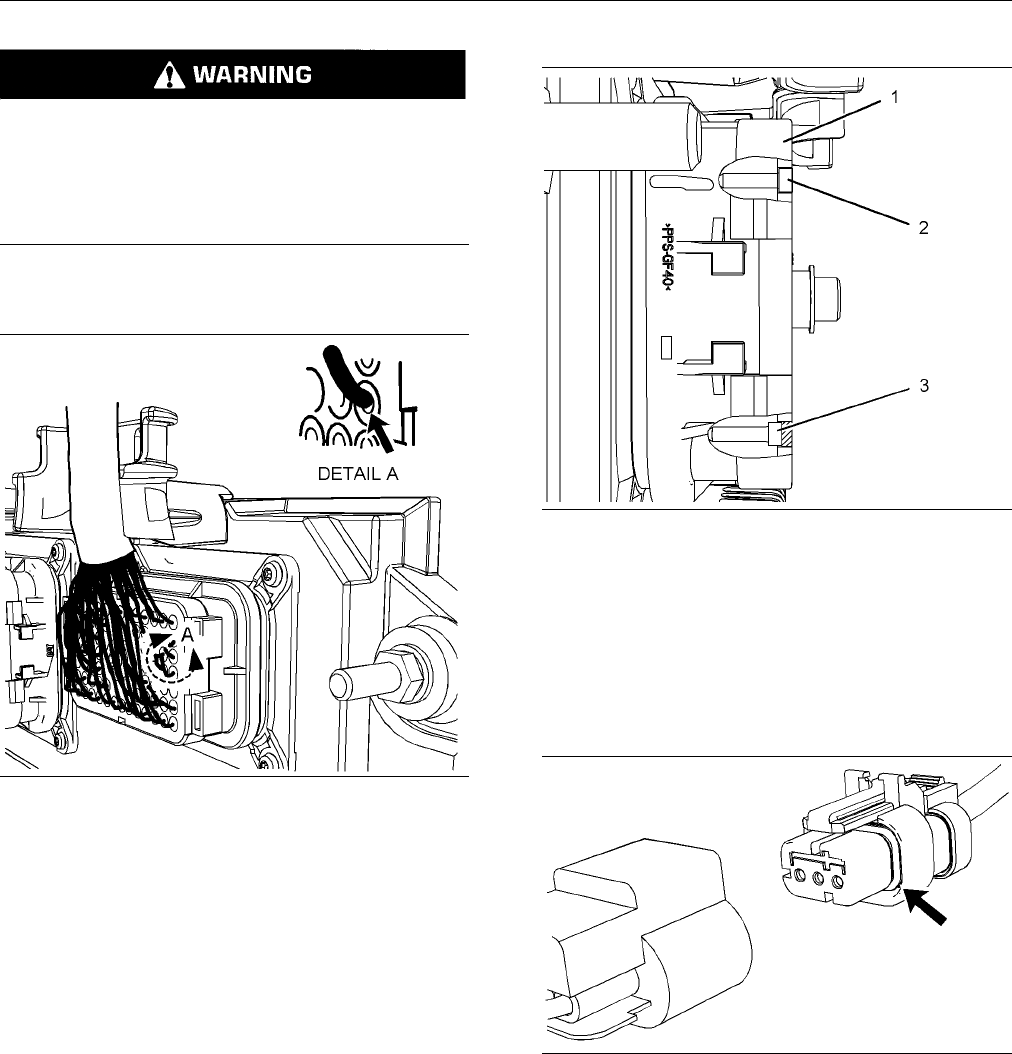

g01131211
Illustration 48
Leaky seal at the con nector (typical example)
A. Inspect all wiring harnesses. Ensure that the
routing of the wiring harness allows the wires to
enter the face of each connector at a perpendicular
angle. Otherwise, the wire will deform the seal
bore. Refer to Illustration 48. This will create a
path for the entrance of moisture. Verify that the
seals for the wires are sealing correctly.
g01131276
Illustration 49
Diagram for the installation of a connector plug (typical e xamp le)
(1) Electronic C ontrol M odule (ECM) connector
(2) C o rre ct ly inserted plug
(3) I ncorrectly inserted plug
B. Ensure that the sealing plugs are in place. If any
of the plugs are missing, replace the plug. Ensure
that the plugs are inserted correctly into the
connector. Refer to Illustration 49.
g01131019
Illustration 50
Seal for a three-pin connector (typical example)
