C27 and C32 Generator Sets Operation and Maintenance Manual Page 56

Operation and Maintenance Manual
56 SEBU8088-06
Operation Section
Engine Stopping
Engine Stopping
i02237582
Emergenc y Stopping
SMCS Code: 1000; 7418
NOTICE
Emergency shutoff controls are for EMERGENCY use
ONLY. DO NOT use emergency shutoff devices or
controls for normal stopping procedure.
Ensure that any components for the external system
that support the engine operation are secured after
the engine is stopped.
NOTICE
Do not start the engine until the problem necessitating
the emergency stop has been located and corrected.
Emergency Stop Button
g00104303

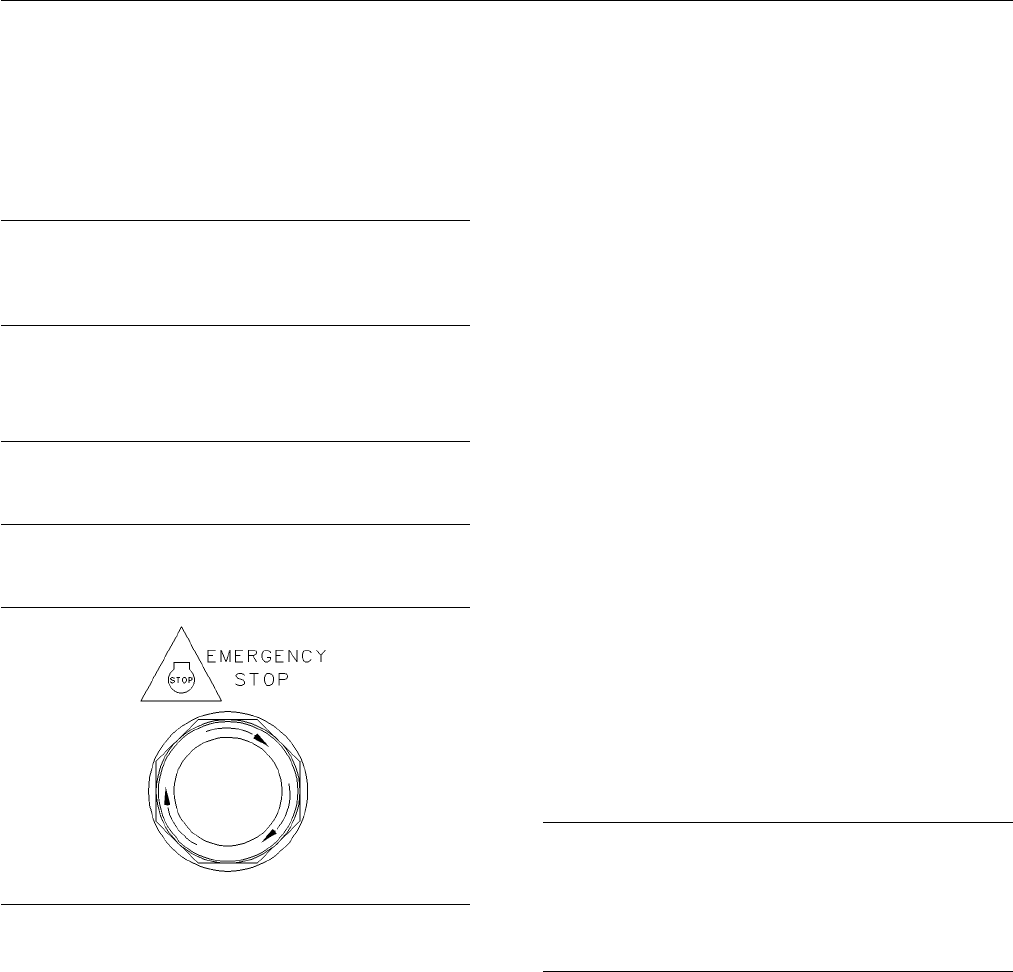

Illustration 47
Typical em
ergency stop button
The emergency stop button is in the OUT position for
normal eng
ine operation. Push the emergency stop
button. The engine will not start when the button is
locked. Turn the button clockwise in order to reset.
i02443872
Manual Stop Pro cedu re
SMCS Code: 1000; 7418
Note: Individu
al applications will have different
control systems. Ensure that the shutoff procedures
are understood. Use the following general guidelines
in order to sto
p the engine.
1. Remove the load, when possible. Reduce the
engine speed (
rpm) to idle.
2. Press the “STOP” button on the control panel. The
controller h
as a programmed 5 minute cooldown.
i02885872
After Stopping Engine
SMCS Code: 1000
•
Check the engine crankcase oil level. Maintain the
oil level between the “ADD” and “FULL” marks
on the “ENGINE STOPPED” side of the oil level
gauge.
•
If necessary, perform minor adjustments. Repair
any leaks and tighten loose bolts.
•
Note the service hour meter reading. Perform the
maintenance that is scheduled in this Operation
and Maintenance Manual, “Maintenance Interval
Schedule” (Maintenance Section).
NOTICE
Follow the guidelines for antifreeze/coolant mixtures
that are recommended in this Operation and Mainte-
nance Manual, “Refill Capacities and Recommenda-
tions”topic.Failuretodosocancauseenginedam-
age.
•
Allow the engine to cool. Check the coolant level.
•
Loosen the cooling system filler cap slowly in
order to relieve any pressure. Remove the cooling
system filler cap.
•
If freezing temperatures are expected, check the
coolant for protection against freezing. The cooling
system must be protected against freezing to the
lowest expected outside temperature. Add the
proper coolant/water mixture, if necessary.
•
Perform all required periodic maintenance on all
driven equipment. Refer to the instructions that are
provided by the OEM of the driven equipment.
