C27 and C32 Generator Sets Operation and Maintenance Manual Page 13

Operation and Maintenance Manual
SEBU8088-06 13
Safety Section
General Hazard Information
Pressurized Air and Water
Pressurized ai
r and/or water can cause debris
and/or hot water to be blown out. This could result in
personal injury.
When pressurized air and/or pressurized water is
used for cleaning, wear protective clothing, protective
shoes, and ey
eprotection.Eyeprotectionincludes
goggles or a protective face shield.
The maximum a
ir pressure for cleaning purposes
must be below 205 kPa (30 psi). The maximum
water pressure for cleaning purposes must be below
275kPa(40ps
i).
Fluid Penetr
ation

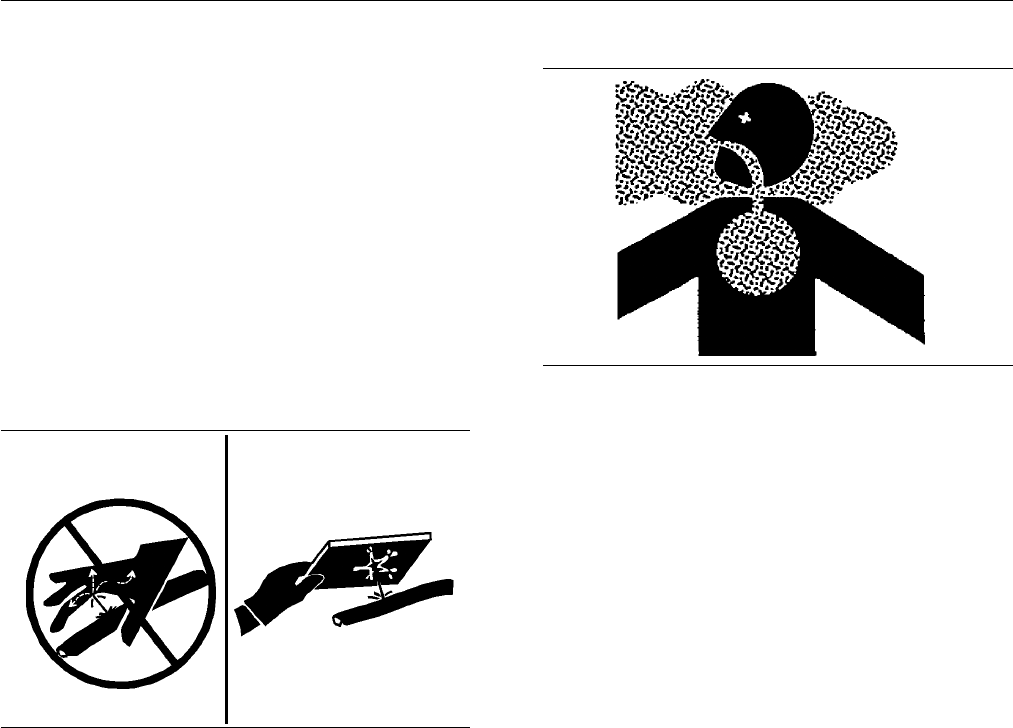

g00687600
Illustration 7
Always use a board or cardboard when you check
for a leak. Leaking fluid that is under pressure can
penetrate body tissue. Fluid penetration can cause
serious injury and possible death. A pin hole leak can
cause severe injury. If fluid is injected into your skin,
you must get treatment immediately. Seek treatment
from a doctor that is familiar with this type of injury.
Contain ing Fluid Spillage
Care must be taken in order to ensure that fluids
are contained during performance of inspection,
maintenance, testing, adjusting and repair of the
engine. Prepare to collect the fluid with suitable
containers before opening any compartment or
disassembling any component that contains fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tools Catalog” for the following items:
•
Tools that are suitable for collecting fluids and
equipment that is suitable for collecting fluids
•
Tools that are suitable for containing fluids and
equipment that is suitable for containing fl uids
Obey all local regulations for the disposal of liquids.
Asbestos Information
g00702022
Illustratio
n8
Caterpillar equipment and replacement parts that are
shipped fro
m Caterpillar are asbestos free. Caterpillar
recommends the use of only genuine Caterpillar
replacement parts. Use the following guidelines
when you han
dle any replacement parts that contain
asbestos or when you handle asbestos debris.
Use ca utio
n. Avoid inhaling dust that might be
generated when you handle components that contain
asbestos fibers. Inhaling this dust can be hazardous
to your hea
lth. The components that may contain
asbestos fibers are brake pads, brake bands, lining
material, clutch plates, and some gaskets. The
asbestos
that is used in these components is usually
bound in a resin or sealed in some way. Normal
handling is not hazardous unless airborne dust that
contains
asbestos is generated.
If dust that may contain asbestos is present, there
are seve
ral guidelines that should be followed:
•
Never use compressed air for cleaning.
•
Avoid brushing materials that contain asbestos.
•
Avoid gri
nding materials that contain asbestos.
•
Useawetmethodinordertocleanupasbestos
materia
ls.
•
A vacuum cleaner that is equipped with a high
efficien
cy particulate air filter (HEPA) can also be
used.
•
Use ex ha
ust ventilation on permanent machining
jobs.
•
Wear an a
pproved respirator if there is no other
way to control the dust.
