C27 and C32 Generator Sets Operation and Maintenance Manual Page 102

Operation and Maintenance Manual
102 SEBU8088-06
Maintenance Section
Fuel System Primary Filter/Water Separator - Drain
i01463757
Fuel System Primary
Filte r/Water
Separator - Drain
SMCS Code: 1260-543; 1263-543

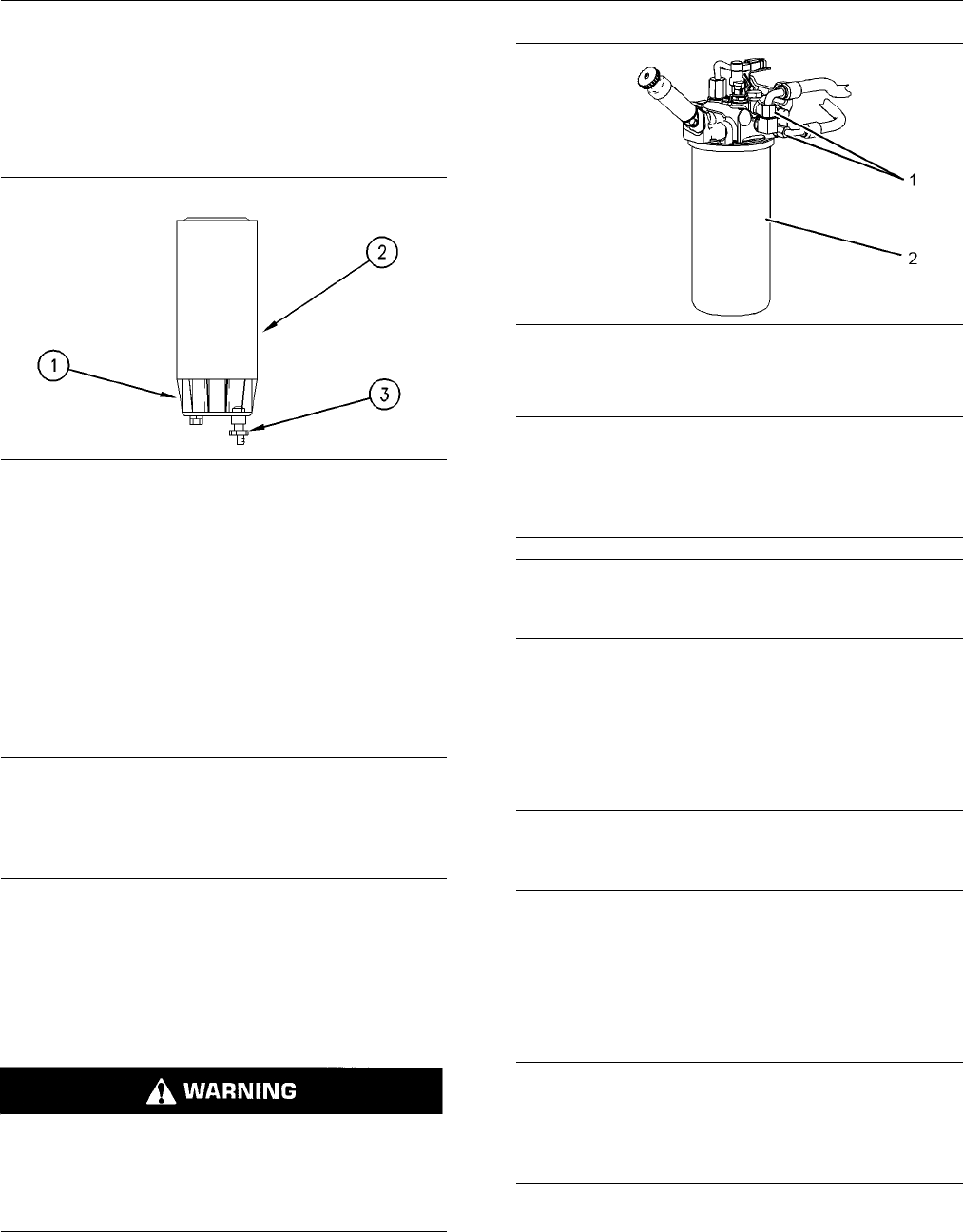

g00668636
Illustrati
on 67
(1) Bowl
(2) Elem ent
(3) Drain
Bowl (1) should be monitored daily for signs of water.
If water is present, drain the water from the bowl.
1. Open drain (3). The drain is a self-ventilated drain.
Catch the draining water in a suitable container.
Dispose of t
he water properly.
2. Close drain (3).
NOTICE
The water separator is under suction during normal
engine operation. Ensure that the drain valve is tight-
ened secure
ly to help prevent air from entering the fuel
system.
i02326422
Fuel System Secondary Filter -
Replace
SMCS Code: 1261-510-SE
Fuel leaked or spilled onto hot surfaces or elec-
trical components can cause a fire. To help pre-
vent possi
ble injury, turn the start switch off when
changing fuel fi lters or water separator elements.
Clean up fuel spills immediately.
g01162207
Illustration 68
(1) Fuel supply connections
(2) Fuel filter
NOTICE
Do not allow dirt to enter the fuel system. Thoroughly
clean the are
a around a fuel system component that
will be disconnected. Fit a suitable cover over any dis-
connected fuel system components.
NOTICE
Use a suitable container to catch any fuel that might
spill. Clean up any spilled fuel immediately.
1. It may be necessary to relieve residual fuel
pressure from the fuel system before removing
the fuel filter.
Loosen one of the fuel supply connections (1) in
order to purge any residual pressure.
NOTICE
Do not loosen fuel lines or fittings at the fuel manifold
or ECM. The engine components may be damaged.
2. Remove the used fuel filter.
3. Clean the gasket sealing surface of the fuel filter
base. Ensure that all of the old gasket is removed.
4. Apply clean diesel fuel to the new fuel filter gasket.
NOTICE
Do not fill the secondary fuel filter with fuel before in-
stalling. The fuel would not be filtered and could be
contaminated. Contaminated fuel will cause acceler-
ated wear to fuel system parts.
