High Water Temp
erature – Theenginecoolant
temperature rises above the setpoint for high water
temperature shutdown that is programmed into the
GSC+. When the
high water temperature fault occurs,
the high water temperature indicator FLASHES. The
engine is shutdown and the engine is not allowed to
start until t
he fault is corrected.
Engine Overspeed – The engine speed exceeds
the setpoint
for engine overspeed that is programmed
into the GSC+. When the engine overspeed fault
occurs, the engine overspeed indicator FLASHES.
The engine i
s shutdown and the engine is not allowed
to start until the fault is corrected.
Overcrank –
The engine does not start within the
setpoint for total cycle crank time that is programmed
into the GSC+. Whe n the overcrank fault occurs, the
overcrank i
ndicator FLASHES. The engine is not
allowed to start until t he fault is corrected.
Note: The G
SC+ can be programmed to override
the shutdown for low oil pressure and high water
temperature faults. When the operator overrides
the shutdo
wn faults, the GSC+ responds to the
faults as though the faults are alarm faults. The
corresponding dedicated shutdown indicator is ON
CONTINUO
USLY and will not be flashing. The
engine continues to run and can be restarted when
necessary. When the dedicated shutdown indicator
is ON CONT
INUOUSLY, the setpoint for shutdown
has been exceeded, but the GSC+ is programmed
to override the shutdown fault. The GSC+ does not
treat th
e shutdown fault as a shutdown fault. The
GSC+ treats the shutdown fault as an alarm fault.
At the factory, the GSC+ is programmed to treat a
low oil
pressure fault and a high water temperature
fault as shutdown faults. The operator or the service
technician must decide to override these shutdown
faults
. The operator or the service technician must
program the GSC+ to treat the shutdown faults as
alarm faults. For programming procedures, refer
to the
Systems Operation, Testing and Adjusting,
RENR2484, “Electronic Modular Control Panel II+
(EMCP II+)”.
Display

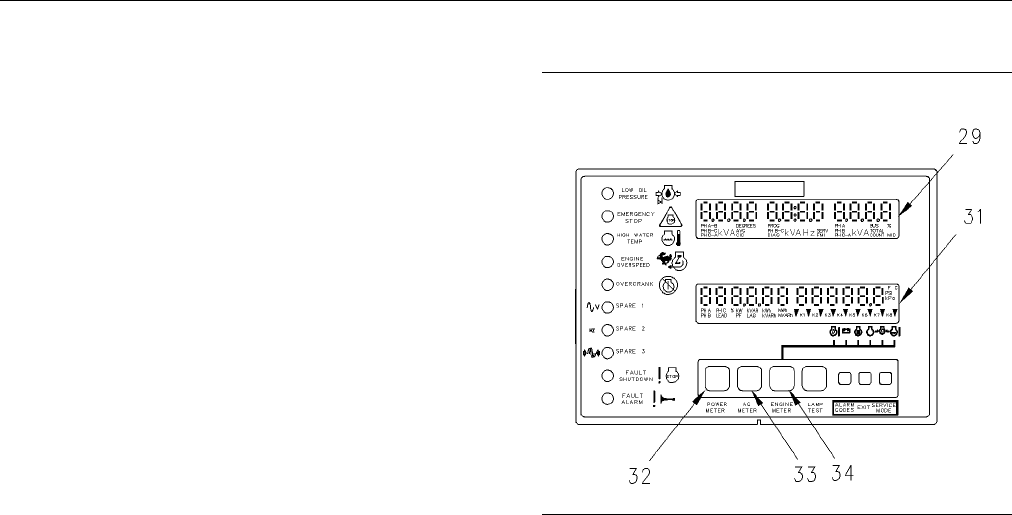

g00634182
Illustration 39
Display Area of the GSC+
(29) Upper display
(31) Lower display
(32) The power meter key
(33) The AC meter key
(34) The engine meter key
The display consists of the upper display and
the lower display. Both displays are used for
programming functions when in service mode. For
more information, see the Systems Operation,
Testing and Adjusting, RENR2484, “Electronic
Modular Control Panel II+ (EMCP II+)”.
Upper display
The EMCP II+P upper display (29) displays voltage
and frequency. The voltage and frequency alternate
between the generator output and the bus. The word
“bus” or “gen” appears in the right side of the window.
This word indicates which parameter is displayed.
Several options are available on the upper display
for AC metering. These options can be viewed one
at a time by pressing the AC meter key (33) on the
keypad. The options are listed below.
•
Average voltage, generator frequency, and total
current
•
Line to line voltage, generator frequency, and line
current for any one phase
•
Line to line voltage for all three phases at once
•
Line current for all three phases at once
