C27 and C32 Generator Sets Operation and Maintenance Manual Page 22

Operation and Maintenance Manual
22 SEBU8088-06
Product Information Section
Model Views and Specifi cations
g01185614

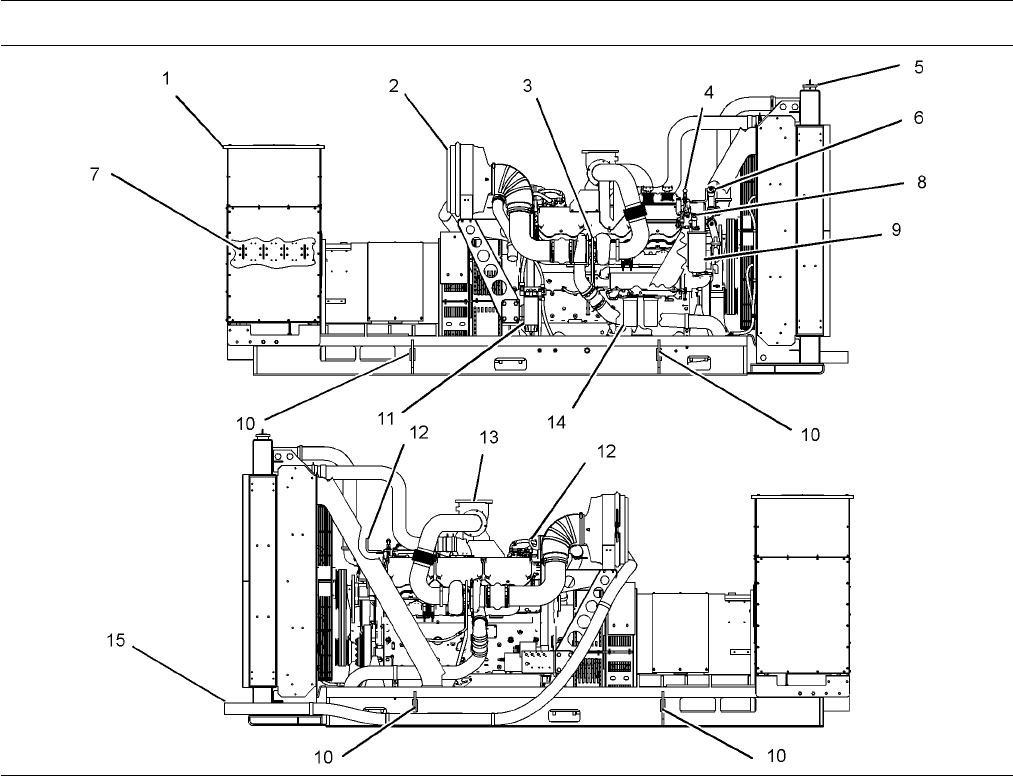

Illustration 1 5
Typical example of a C32 generator set
(1) Control panel
(2) Air cleaner
(3) Oil level gauge
(4) Excess fuel return
(5) Radiator cap
(6) Oil filler
(7) Terminal strips
(8) Fuel priming pump
(9) Fuel filter
(10) Package lifting eye
(11) Water separator
(12) Engine lifting eye
(13) Exhaust
(14) Oil filter
(15) Fumes disposal tube
i02572751
Product Description
SMCS Code: 1000; 4450
Caterpillar C27 and C32 Generator Sets provide the
following features:
Engine Description
•
Four cycle
•
Direct fuel injection
•
Mechanical Electronic Unit Injector (MEUI)
•
Turbocharged
•
Air-To-Air Aftercooler (ATAAC)
Electronic Engine Features
Caterpillar C27 and C32 engines are designed with
electronic controls. The integral on board computer
controls the operation of the engine. Current
operating conditions are monitored. The Electronic
Control Module (ECM) controls the response of the
engine to these conditions and to the demands of the
operator. These conditions and operator demands
determine the precise control of fuel injection by the
ECM. The electronic engine control system provides
the following features:
•
Engine and auxiliary monitoring
•
Engine speed governing
