C27 and C32 Generator Sets Operation and Maintenance Manual Page 46

Operation and Maintenance Manual
46 SEBU8088-06
Operation Section
Features and Controls
Alarm Module

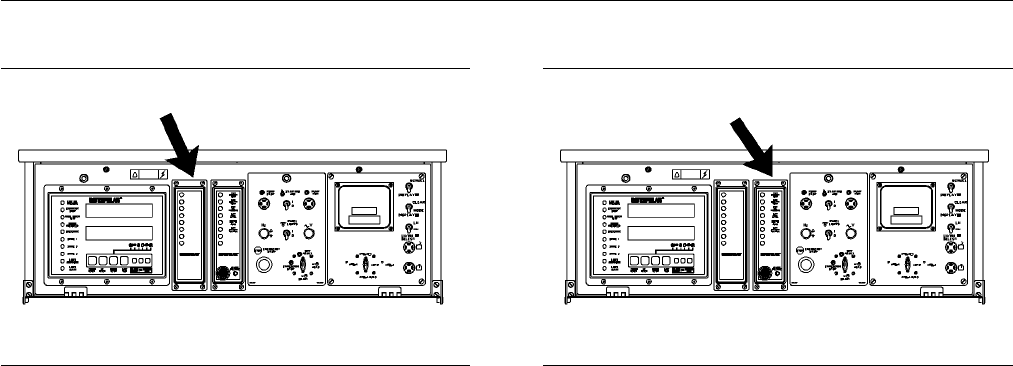

g00635769
Illustration 41
The Location of the Alarm Module (AL M) on the EMCP II+P
Control P anel
The alarm module (ALM) is optional. The ALM is
located in the center of the control panel. The function
of the alarm module is to provide a visual and audible
warning of engine conditions before these conditions
become severe enough that the engine will shut
down or will be unable to start.
One basic alarm module is used to satisfy the
requirements for a standby NFPA 99 alarm module,
standby NFPA 110 alarm module, NFPA 99 remote
annunciator panel, and prime power alarm. This is
accomplished by using different inputs to the module
and different decals on the front of the module in
order to indicate alarms or shutdown conditions.
For all wiring and installation information, refer to
the Systems Operation, Testing and Adjusting,
RENR2484, “Electronic Modular Control Panel II+
(EMCP II+)”. Refer to the above manual for a listing
of indicators and alarm (horn) functions.
The front of the alarm module consists of the
following indicators.
•
Four amber indicators, which can (depending
on module configuration) indicate High Coolant
Temperature, Low Coolant Temperature or Low
Coolant Level, Low Oil Pressure, Generator On
Load, Charger Malfunction, Low Oil Level and Low
Fuel Level
•
Four red indicators, which can (depending on
module configuration) indicate a Not In AUTO
condition, Low DC Voltage, Air Damper Closed,
Low Oil Pressure Shutdown, Overcrank Shutdown,
High Coolant Temperature Shutdown, and
Overspeed Shutdown
•
An audible alarm and Acknowledge/Silence switch
For more detailed information, refer to the Systems
Operation, Testing and Adjusting, RENR2484,
“Electronic Mod ular Control Panel II+ (EMCP II+)”.
Custom Alarm Module
g00635777
Illustratio
n42
The Location of the Custom Alarm Modu le (CAM) on the EMCP
II+P Control Panel
The Custom Alarm Module (CAM) is located in
the center of the control panel. The function of the
custom alar
m module is to provide a visual and
audible warning of the conditions of the customer
supplied inputs before these conditions become
severe eno
ugh that the engine will shut down or will
be unable to start. The CAM has eight indicators,
an audible horn, acknowledge/silence switch and
the lamp te
st switch. Four of the indicator lamps
are yellow. These yellow indicator lamps are
used to indicate a fault shutdown. For all wiring
and insta
llation information, refer to the Systems
Operation, Testing and Adjusting, RENR2484,
“Electronic Modular Control Panel II+ (EMCP II+)”.
Refer to t
he above manual for the names of input
signals.
Note: If
an optional alarm module is ordered, the
audible horn, acknowledge/silence switch and lamp
test switch will come standard with the optional alarm
module.
The front of the alarm module consists of the
followi
ng indicators.
•
Four amber indicators, which are used to display
alarm co
nditions
•
Four yellow indicators, which are used to display
shutdo
wn conditions
