C27 and C32 Generator Sets Operation and Maintenance Manual Page 28

Operation and Maintenance Manual
28 SEBU8088-06
Product Information Section
Product Identification Information
Engine Serial N
umber
____________________________________
Engine Arrangement Number ___________________________
Modification Number ______________________________________
Engine Low Idl
erpm
______________________________________
Engine Full Load rpm _____________________________________
Performance Specification Number ____________________
Part N umber fo
r the Primary Fuel Filter
_______________
Part Number for the Water Separator Element
_________________________________________________________________
Part Number for the Secondary Fuel Filter Element
_________________________________________________________________
Part Number for the Lubrication Oil Filter Element
_________________________________________________________________
Part Number for the Auxiliary Oil Filter Element
_________________________________________________________________
Part Number for the Supplemental Coolant Additive
Maintenance
Element (If Equipped)
___________________
Total Lubrication System Capacity _____________________
Total Cooling System Capacity _________________________
Part N umber f
or the Air Cleaner Element
____________
Part Number for the Fan Drive Belt __ __________________
Part Number for the Alternator Belt _ ___________________
Model Number
of the Generator
________________________
Serial Number of the Generator ________________________
Arrangement Number of the Generator _______________
Part N umber f
or the Control Panel
_____________________
i01553111
Generator L
ead Connectio ns
SMCS Code: 4450
Lead Numbering
The Wye Configurations and the Delta Configurations
are the most common generator lead connections.
The followi
ng three-phase connection diagrams
illustrate the p roper connection and lead identification.
The leads are nu
mbered clockwise from the top
and from the outside inward. The diagrams that
are contained in the “Wye Configuration Diagrams”
section show l
ead numbering for the six lead
generators and for the twelve lead generators. The
diagrams contained in the “Delta Configuration
Diagrams” se
ction show lead numbering for the six
lead generators and for the twelve lead generators.
Wye Confi gura
tion Diagrams
6 Lead
g00611486

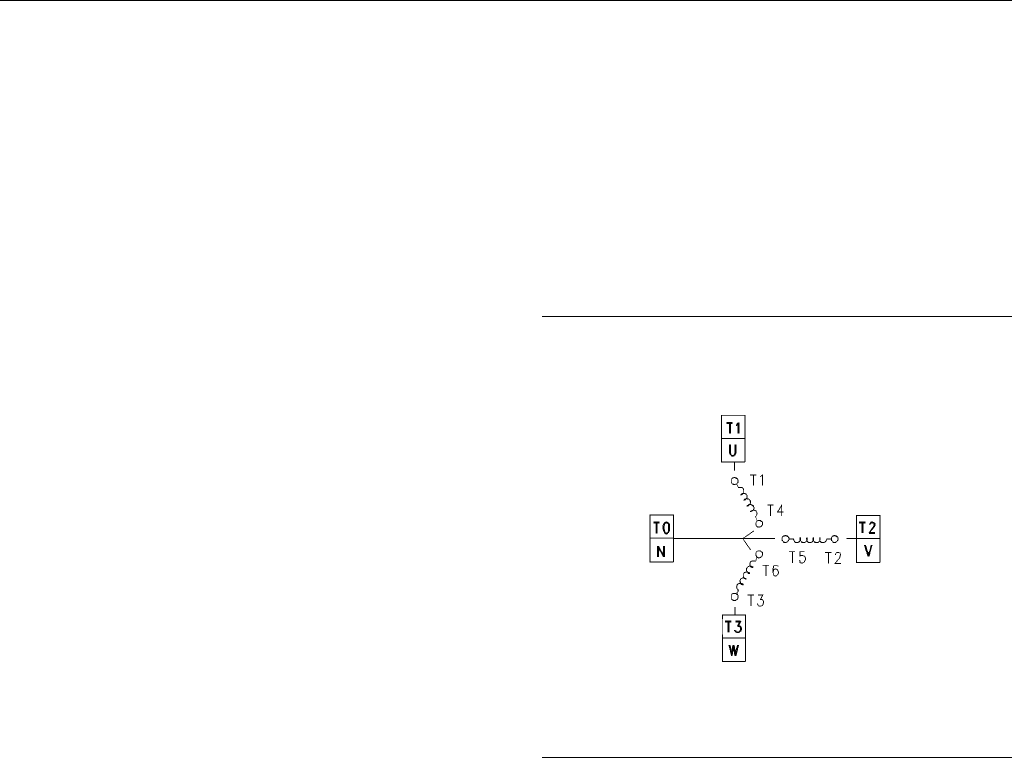

Illustration 20
6 Lead W ye C onfiguration
Term inals T4, T5 and T6 become a neutral connection when the
terminals are tied together.
