Conversion to Caterpillar undercarriage is

a commonly accepted practice among

many owners of competitive track-type

tractors, loaders and excavators.

Why Consider Undercarriage

Conversion?

Customers convert to Cat undercarriage

for many reasons including:

• Lower cost per hour

• Dealer Undercarriage Management

Program (CTS)

• Caterpillar product innovations

• Consistent parts quality

• Expertise of Caterpillar dealer

• Full quality repair, service

• Unmatched parts availability

• Caterpillar dealer is their One Safe

Source for undercarriages

• Better parts price than many OEMs

Converting a machine to Cat undercar-

riage can be as simple as wrapping a track

group on the competitive machine, or as

extensive as changing the track, sprocket

and rolling components. Some competi-

tive machines require no modification at

all while a few require extensive modifica-

tion. (Reference IRM UC96-12)

Determining Basic Convertibility

In The Field

Basic convertibility is defined as install-

ing a Cat track group with minimum, if

any, modification to the machine. This

may or may not require a change to Cat

sprockets. Basic convertibility can be

quickly and easily determined in the field

using only four measurements.

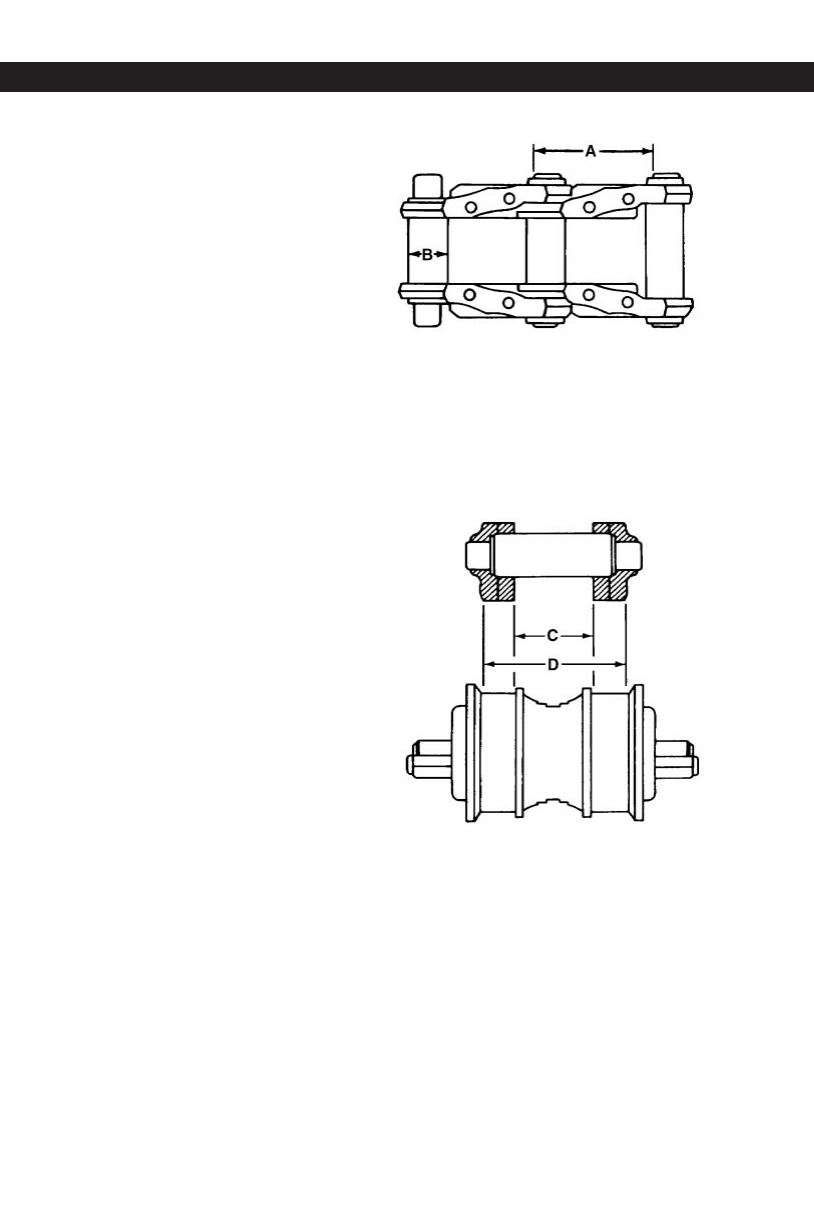

Track Group Convertibility

Measure

A. — Pitch

B. — Bushing O.D.

Result

These two dimensions determine if change

to Cat sprocket is required.

Measure

C. — Inside Rail Spread

D. — Outside Rail Spread

Result

These two dimensions determine if change

to Cat rolling components is required.

Pitch may vary by + or - .03" (.8 mm) and

the Cat bushing O.D. may be smaller by

.12" (3 mm). Rail spreads must fit within

outside roller flanges and clear inside

flange if double flange rollers are used.
