TRACK MANAGEMENT

Management & Merchandising

Crescent Track Seals (noncurrent)

This type of seal provides adequate seala-

bility. Reuse crescent seals because of

established wear patterns between the seal

and the end of the bushing.

Always reuse crescent track seals at

bushing turn time.

CTS Inspection Report

The Custom Track Service Inspection

Report provides a convenient format for

recording information and computed

values that are important to report under-

carriage condition to the user. It also acts

as a history record of past conditions and

recommendations. The exact format is not

as important as accurately calculating and

completely recording all data. The

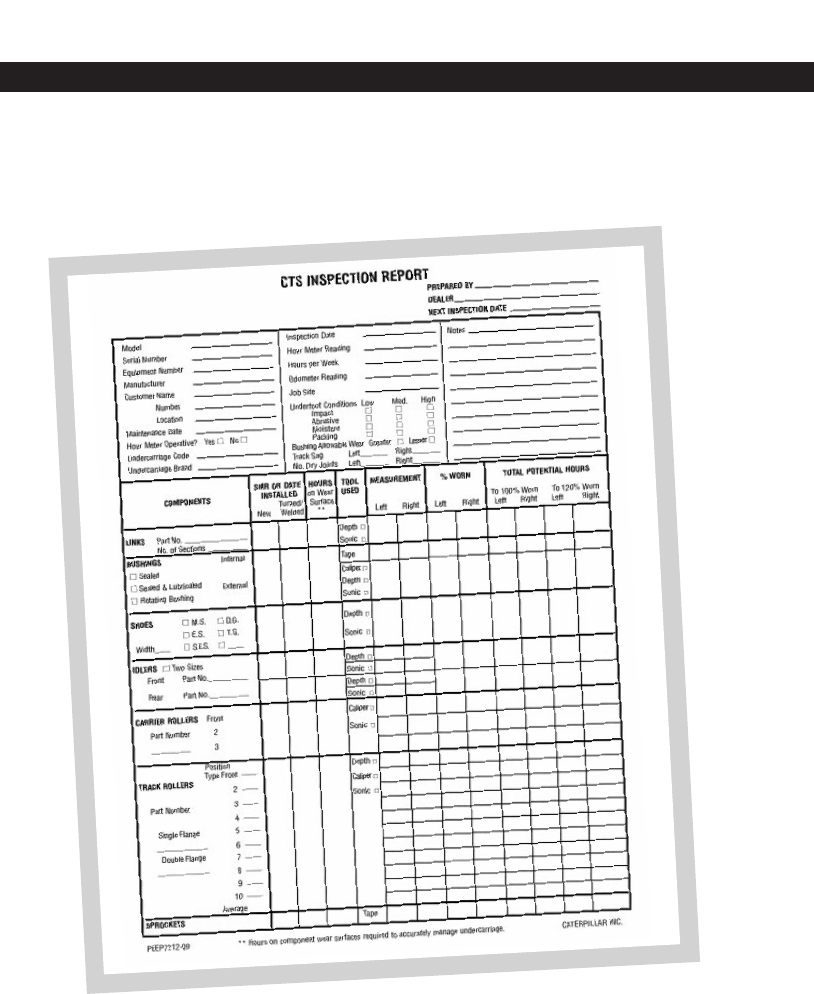

Caterpillar form shown here is used for

illustrative purposes because it contains

most of the important elements required to

perform the above functions. A discussion

on it and the use of Total Life Scales and

Recommendation Checklist, printed on the

back of the Caterpillar form follows.
