Caterpillar Custom Track Service Handbook Page 645

Service Handbook

Page of 826

/ 826

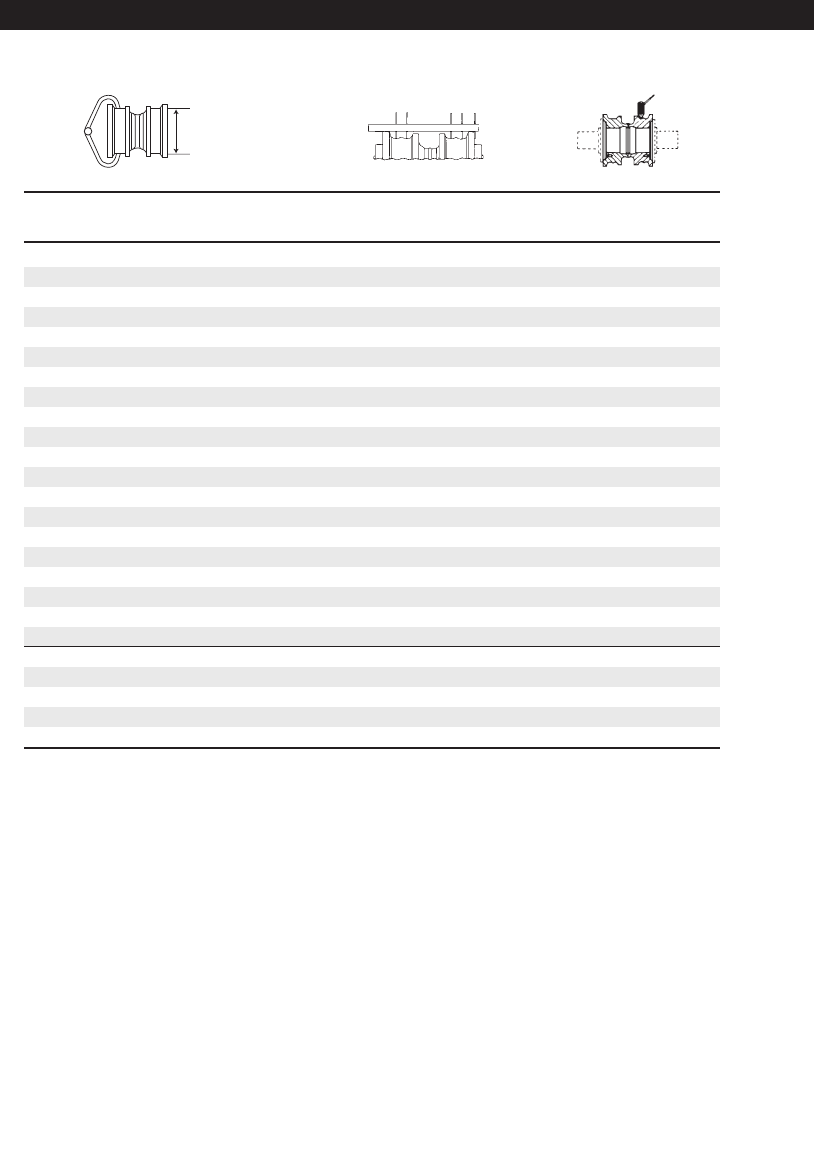

Track Rollers

9S Rim

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

8.01 (203.5) 0 0.65 (16.5) 1.88 (47.8)

7.97 (202.5) 6 0.67 (17.0) 1.86 (47.2)

7.93 (201.5) 12 0.69 (17.5) 1.84 (46.7)

7.89 (200.5) 18 0.71 (18.0) 1.82 (46.2)

7.85 (199.5) 24 0.73 (18.5) 1.80 (45.7)

7.81 (198.5) 30 0.75 (19.0) 1.78 (45.2)

7.77 (197.5) 36 0.77 (19.5) 1.76 (44.7)

7.73 (196.5) 42 0.79 (20.0) 1.74 (44.2)

7.69 (195.5) 48 0.81 (20.5) 1.72 (43.7)

7.65 (194.5) 54 0.83 (21.0) 1.70 (43.2)

7.61 (193.5) 60 0.85 (21.5) 1.68 (42.7)

7.57 (192.5) 66 0.87 (22.0) 1.66 (42.2)

7.53 (191.5) 72 0.89 (22.5) 1.64 (41.7)

7.49 (190.0) 76 0.91 (23.0) 1.62 (41.1)

7.45 (189.0) 80 0.93 (23.5) 1.60 (40.6)

7.41 (188.0) 84 0.95 (24.0) 1.58 (40.1)

7.37 (187.0) 88 0.97 (24.5) 1.56 (39.6)

7.33 (186.0) 92 0.99 (25.0) 1.54 (39.1)

7.29 (185.0) 96 1.01 (25.5) 1.52 (38.6)

7.25 (184.0) 100 1.03 (26.0) 1.50 (38.1)

7.21 (183.0) 104 1.05 (26.5) 1.48 (37.6)

7.17 (182.0) 108 1.07 (27.0) 1.46 (37.1)

7.13 (181.0) 112 1.09 (27.5) 1.44 (36.6)

7.09 (180.0) 116 1.11 (28.0) 1.42 (36.1)

7.05 (179.0) 120 1.13 (28.5) 1.40 (35.6)

Flange diameter is 9.31" (236 mm)

Undercarriage Code: 433, 452

644

225, 219, 215 S.A., FB221, FB217, DL221 — 7.50" (190 mm) & 6.91" (175.5 mm)

Excavators

11.Exc.(608-709) 7/14/03 7:33 AM Page 644
