Caterpillar Custom Track Service Handbook Page 200

Service Handbook

Page of 826

/ 826

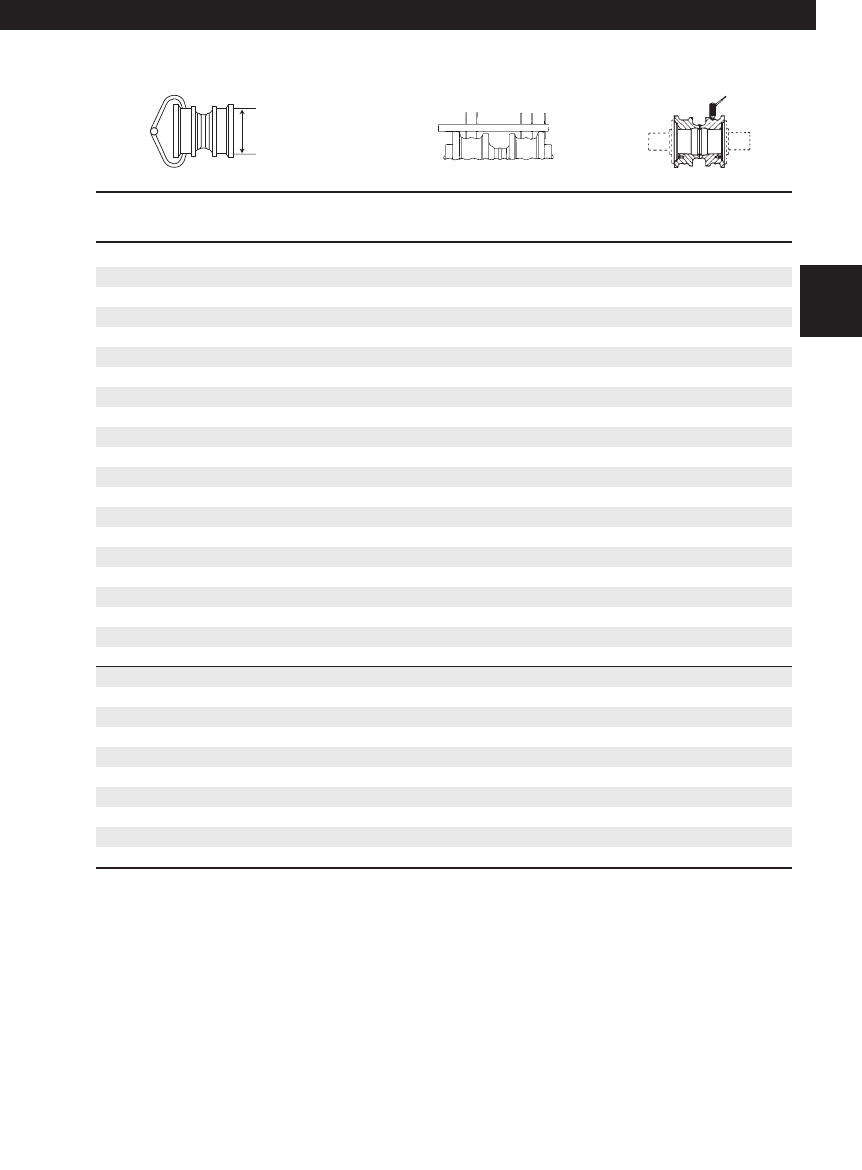

Track Rollers

Double Flange

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

9.49 (241.0) 0 0.67 (17.0) 2.37 (60.2)

9.39 (238.5) 6 0.72 (18.5) 2.32 (58.9)

9.29 (236.0) 12 0.77 (19.5) 2.27 (57.7)

9.19 (233.5) 18 0.82 (21.0) 2.22 (56.4)

9.09 (231.0) 24 0.87 (22.0) 2.17 (55.1)

8.99 (228.5) 30 0.92 (23.5) 2.12 (53.8)

8.89 (226.0) 36 0.97 (24.5) 2.07 (52.6)

8.79 (223.5) 42 1.02 (26.0) 2.02 (51.3)

8.69 (220.5) 48 1.07 (27.0) 1.97 (50.0)

8.59 (218.0) 54 1.12 (28.5) 1.92 (48.8)

8.49 (215.5) 60 1.17 (29.5) 1.87 (47.5)

8.39 (213.0) 66 1.22 (31.0) 1.82 (46.2)

8.29 (210.5) 72 1.27 (32.5) 1.77 (45.0)

8.19 (208.0) 78 1.32 (33.5) 1.72 (43.7)

8.09 (205.5) 82 1.37 (35.0) 1.67 (42.4)

7.99 (203.0) 85 1.42 (36.0) 1.62 (41.1)

7.89 (200.5) 88 1.47 (37.5) 1.57 (39.9)

7.79 (198.0) 91 1.52 (38.5) 1.52 (38.6)

7.69 (195.5) 94 1.57 (40.0) 1.47 (37.3)

7.59 (193.0) 97 1.62 (41.0) 1.42 (36.1)

7.49 (190.0) 100 1.67 (42.5) 1.37 (34.8)

7.39 (187.5) 103 1.72 (43.5) 1.32 (33.5)

7.29 (185.0) 106 1.77 (45.0) 1.27 (32.3)

7.19 (182.5) 109 1.82 (46.0) 1.22 (31.0)

7.09 (180.0) 112 1.87 (47.5) 1.17 (29.7)

6.99 (177.5) 115 1.92 (49.0) 1.12 (28.4)

6.89 (175.0) 118 1.97 (50.0) 1.07 (27.2)

6.79 (172.5) 121 2.02 (51.5) 1.02 (25.9)

6.69 (170.0) 124 2.07 (52.5) 0.97 (24.6)

6.59 (167.5) 127 2.12 (54.0) 0.92 (23.4)

6.49 (165.0) 130 2.17 (55.0) 0.87 (22.1)

Flange diameter is 10.83" (275 mm)

Undercarriage Code: 178, 1785, 179, 180, 182, 183, 184

199

D8L, D8N, D8R, 578, 583R — 8.50" (215.9 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 199
