Caterpillar Custom Track Service Handbook Page 210

Service Handbook

Page of 826

/ 826

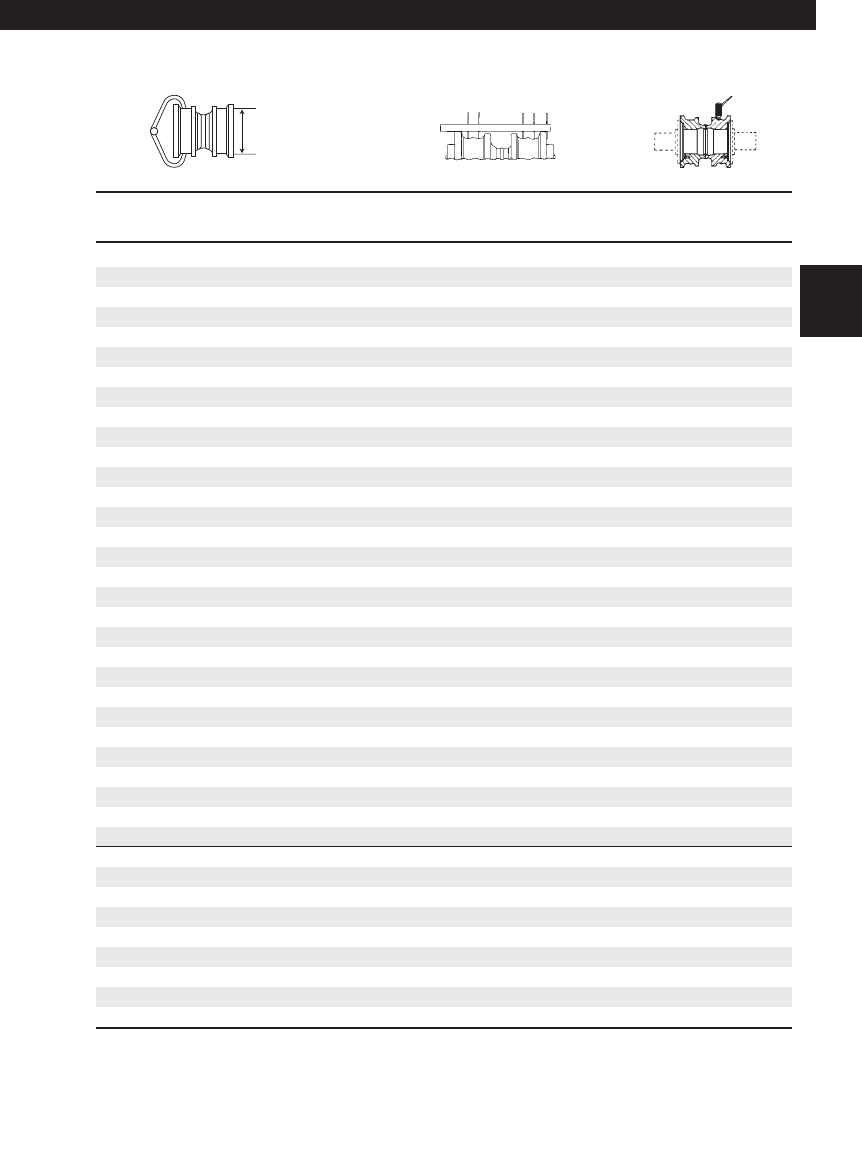

Track Rollers

Single Flange

Caliper Depth Gauge Ultrasonic

Inches (mm) % Worn Inches (mm) Inches (mm)

10.23 (260.0) 0 0.59 (15.0) 2.74 (69.6)

10.13 (257.5) 5 0.64 (16.5) 2.69 (68.3)

10.03 (255.0) 10 0.69 (17.5) 2.64 (67.1)

9.93 (252.0) 15 0.74 (19.0) 2.59 (65.8)

9.83 (249.5) 20 0.79 (20.0) 2.54 (64.5)

9.73 (247.0) 25 0.84 (21.5) 2.49 (63.2)

9.63 (244.5) 30 0.89 (22.5) 2.44 (62.0)

9.53 (242.0) 34 0.94 (24.0) 2.39 (60.7)

9.43 (239.5) 37 0.99 (25.0) 2.34 (59.4)

9.33 (237.0) 40 1.04 (26.5) 2.29 (58.2)

9.23 (234.5) 43 1.09 (27.5) 2.24 (56.9)

9.13 (232.0) 46 1.14 (29.0) 2.19 (55.6)

9.03 (229.5) 49 1.19 (30.0) 2.14 (54.4)

8.93 (227.0) 52 1.24 (31.5) 2.09 (53.1)

8.83 (224.5) 55 1.29 (33.0) 2.04 (51.8)

8.73 (221.5) 58 1.34 (34.0) 1.99 (50.5)

8.63 (219.0) 61 1.39 (35.5) 1.94 (49.3)

8.53 (216.5) 64 1.44 (36.5) 1.89 (48.0)

8.43 (214.0) 67 1.49 (38.0) 1.84 (46.7)

8.33 (211.5) 70 1.54 (39.0) 1.79 (45.5)

8.23 (209.0) 73 1.59 (40.5) 1.74 (44.2)

8.13 (206.5) 76 1.64 (41.5) 1.69 (42.9)

8.03 (204.0) 79 1.69 (43.0) 1.64 (41.7)

7.93 (201.5) 82 1.74 (44.0) 1.59 (40.4)

7.83 (199.0) 85 1.79 (45.5) 1.54 (39.1)

7.73 (196.5) 88 1.84 (46.5) 1.49 (37.8)

7.63 (194.0) 91 1.89 (48.0) 1.44 (36.6)

7.53 (191.5) 94 1.94 (49.5) 1.39 (35.3)

7.43 (188.5) 97 1.99 (50.5) 1.34 (34.0)

7.33 (186.0) 100 2.04 (52.0) 1.29 (32.8)

7.23 (183.5) 103 2.09 (53.0) 1.24 (31.5)

7.13 (181.0) 106 2.14 (54.5) 1.19 (30.2)

7.03 (178.5) 109 2.19 (55.5) 1.14 (29.0)

6.93 (176.0) 112 2.24 (57.0) 1.09 (27.7)

6.83 (173.5) 115 2.29 (58.0) 1.04 (26.4)

6.73 (171.0) 118 2.34 (59.5) 0.99 (25.1)

6.63 (168.5) 121 2.39 (60.5) 0.94 (23.9)

6.53 (166.0) 124 2.44 (62.0) 0.89 (22.6)

6.43 (163.5) 127 2.49 (63.0) 0.84 (21.3)

Flange diameter is 11.42" (290 mm)

Undercarriage Code: 195, 196

209

D9N, D9R — 9.45" (240 mm)

Elevated Sprocket Machines

04.Elev.(198-245) 7/11/03 3:45 PM Page 209
