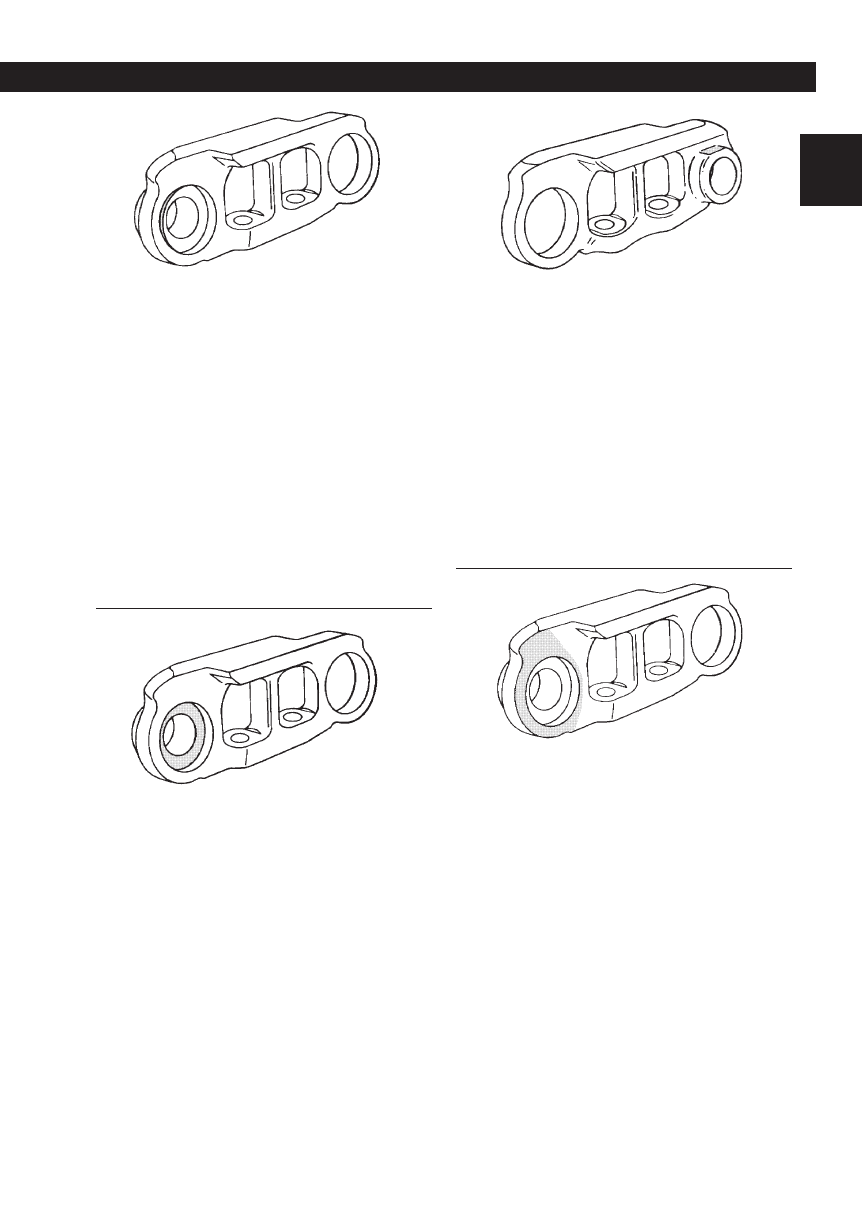

Elongation of Counterbore

CAUSES: Rotating contact with the

bushing end in pitch extended Sealed

Track (see Sealed Track bushing counter-

bore wear).

ACCELERATORS: None — a direct

function of pitch extension.

EFFECT: Reduces re-sealability of coun-

terbore even with new seals in Sealed

Track. Link is less rebuildable.

REMEDIES: Turn pins and bushings in

Sealed Track at service limit.

Depth Wear in Counterbore

CAUSES: Rotative contact between

Sealed Track seals or bushing end with

bottom of counterbore (See Sealed Track

Bushing End Wear).

ACCELERATORS: Abrasiveness, side

hill loads and turning, side thrust impact

and too wide shoes.

EFFECT: Same as Counterbore Elonga-

tion wear.

REMEDIES: Reduce or eliminate control-

lable accelerators and install new seals at

pin and bushing turn time.

Pin Boss Tip Worn

CAUSES: Sliding and roller contact with

roller flange tops (see roller flange wear).

ACCELERATORS: Nonuniform front to

rear roller wear when link is not 100 per-

cent worn.

EFFECT: Loss of pin retention and reduced

rail rebuildability.

REMEDIES: Swap rollers to balance wear

effect and rebuild rail, rollers as required.

Face Wear

CAUSES: Rotative contact between over-

lapping link faces following Sealed Track

link counterbore depth wear, seal wear and

bushing end wear, all which allow end

play.

ACCELERATORS: Same as “Depth Wear

in Counterbore.”

EFFECT: Reduces wear life of original

and/or rebuilt link and reduces rebuildabil-

ity. (Also see Uneven Wear On Rail Top,

position 1 & 3).

REMEDIES: Reduce or eliminate acceler-

ators. Sealed and Lubricated Track will

have very little face wear due to no coun-

terbore or bushing end wear keeping link

faces separated.

General Information

LINKS
