Programming Cat Electronic Truck Engine Page 115

Programming
Page 114
Minimum Idle Shutdown Outside Temperature
Maximum Idle Shutdown Outside Temperature
Description:

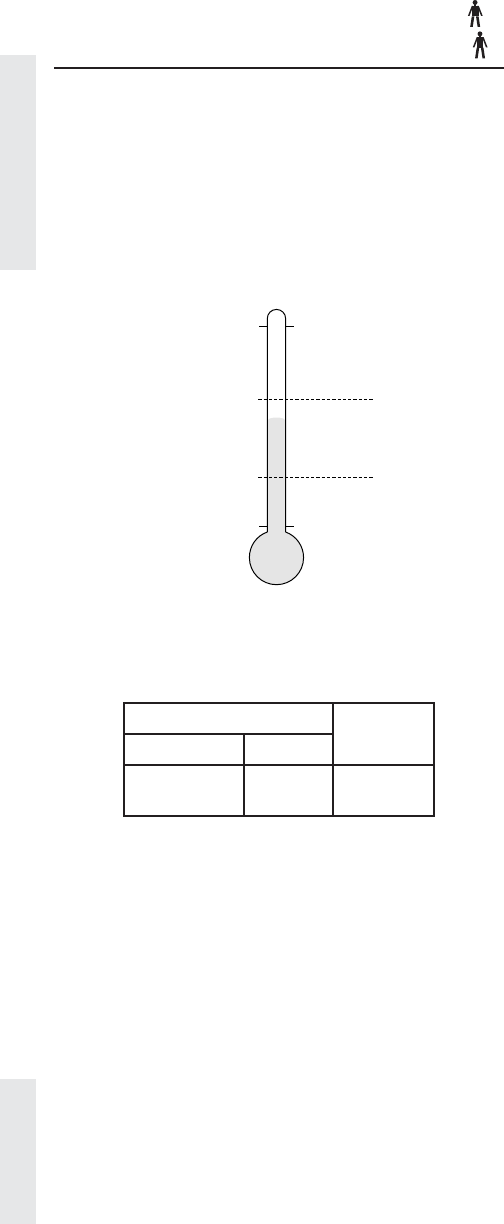

The Minimum and Maximum Idle Shutdown Temperature
settings allow the fl exibility of a defi ned temperature
range where the engine will always shutdown along
with temperature ranges where the driver can override
the shutdown, allowing the use of air conditioning or
heating. The Allow Idle Shutdown Override parameter
must be programmed to “Outside Temperature Based”
for these parameters to be programmed (See page ).
120 F
(49 C)
- 40 F
(- 40 C)
Maximum Idle Shutdown
Outside Temperature
Setting F ( C)
Minimum Idle Shutdown
Outside Temperature
Setting F ( C)
Engine ALWAYS Shuts
Down. Can NOT be
overridden.
Engine Shuts Down.
Can be overridden.
Engine Shuts Down.
Can be overridden.
Outside Air Tem
p
erature F ( C)
Available:
All on-highway engines covered in this handbook.
Range:
Range
Cat
Default
Minimum Maximum
-40 °F
(-40 °C)
120 °F
(49 °C)
120 °F
(49 °C)
Advantages:
The Outside Temperature Based Shutdown saves fuel by
allowing idle only when necessary for driver comfort.
Disadvantages:
If the Idle Shutdown time is programmed for a long time
(more than an hour) and the temperature drops in to the
“Always Shutdown” range the engine would shutdown
and could wake the driver.
Recommendations:
✔ Program the Minimum setting to a value where
it would be necessary to use the heater to be
comfortable and the Maximum setting to a value
where it would be necessary to use the air
conditioner to be comfortable.
111
Timer Parameters
