Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 85

OPERATORS MANUAL
TM 5-3805-261-10
ADVANCED OPERATION AND OPERATOR TIPS - CONTINUED 0006 00
0006 00-19
TRAVELING AND EARTH MOVING OPERATIONS - CONTINUED
Left-Hand Ditch Cleanup - Continued

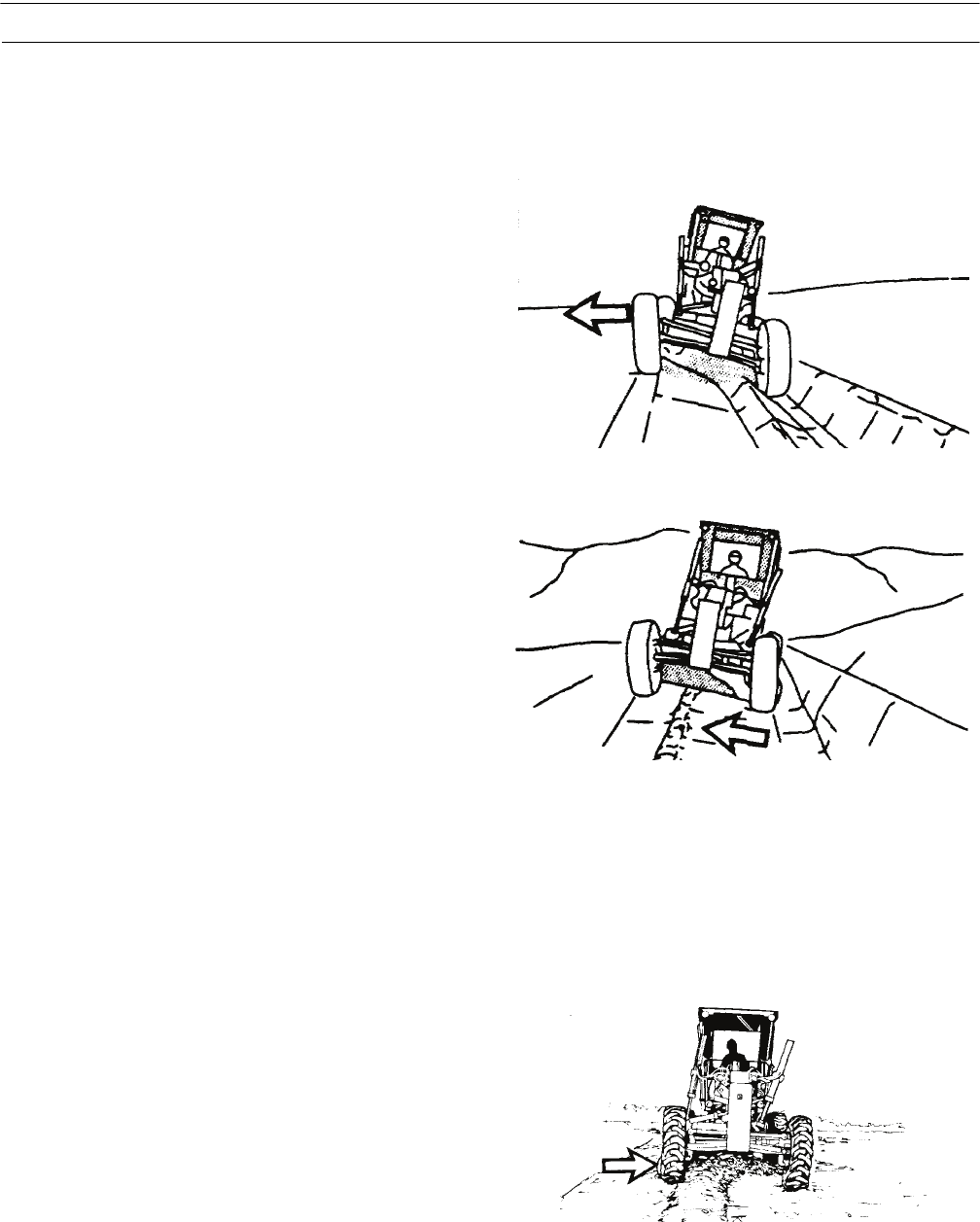

5. Lean the front wheels slightly to the right.
6. Another pass is required to move the material up the
slope and onto the shoulder. Spread the material and
finish the final grade.
Right-Hand Shoulder Cleanup
CAUTION
Make sure the blade is lowered to the ground before retracting the centershift lock pin. Failure to follow this
caution may result in damage to machine.
1. Set the centershift lock pin in the center position.
Move the centershift lock pin lever to the INDEX and
RUN position.
2. Set the blade so the right end is in line with the outer
edge of the right tire. The material must be delivered
between the wheels.
397-993
397-994
397-995
