Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 231

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-27
ASSEMBLY - CONTINUED
Keep all personnel away from machine while rear section is moving and while adjusting blade. Failure to
follow this warning may cause injury or death to personnel.
CAUTION
DO NOT turn on auxiliary pump for more than 30 seconds. Allow pump to cool for 1 minute between each use.
28. Turn on battery disconnect switch and start engine. Drive the rear section very slowly toward the front frame. DO NOT
STEER. Position the front frame relative to the rear frame with the blade control levers. Hold the appropriate blade lever
in the desired position and use the auxiliary pump switch to align the top pivot pin.
29. Shift the transmission to Neutral and shut down the engine.
30. If required, adjust screw jack lengths and use the blade control levers with auxiliary pump switch to align the bottom pin
hole.
31. Apply grease to pivot pins and pivot pin bores and carefully install the lower pivot pin (26).

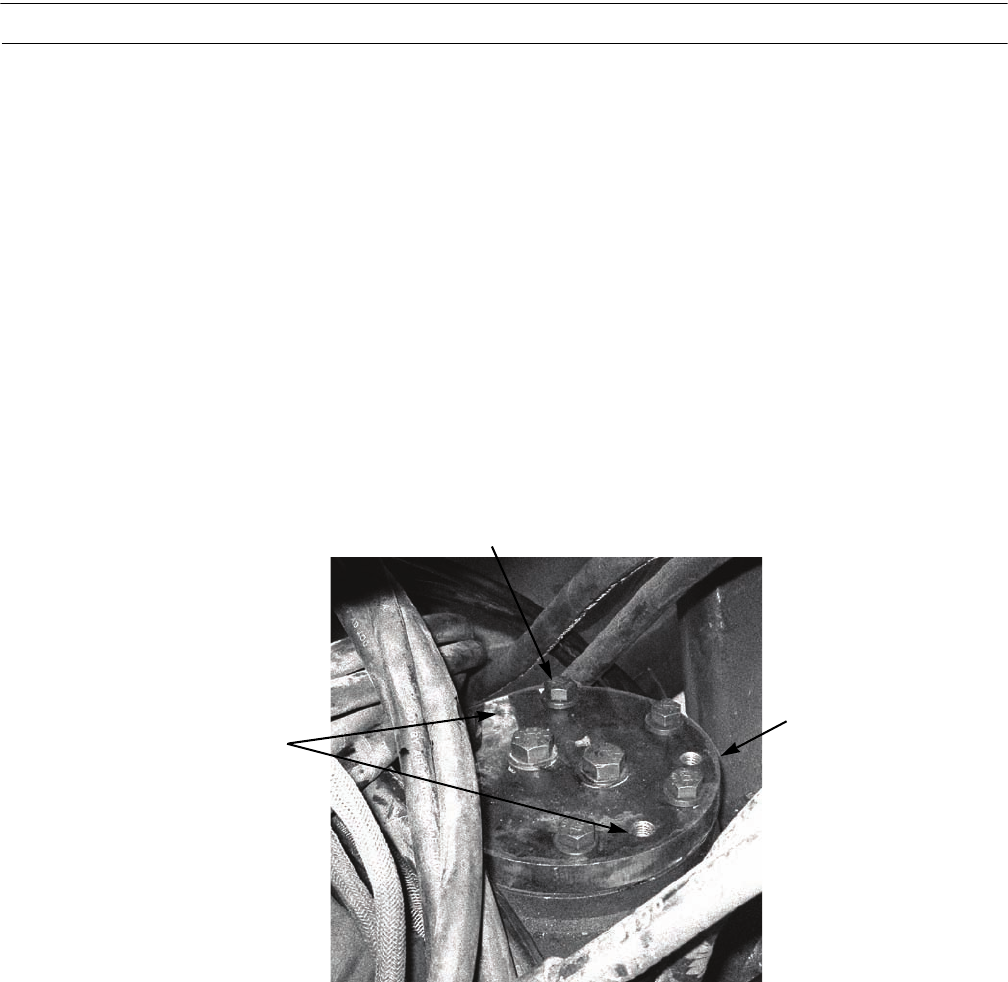

32. Install six washers (69) and bolts (68) on top of lower pivot pin (26). Gradually tighten bolts in a diagonal pattern.
Tighten bolts to 75 lb-ft (100 Nm).
397-1111
68,69
26
PUSHER
BOLT HOLES
