Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 179

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-35
95
(Con’t)
a. Remove two bolts and open right
rear engine access cover.
b. Check for loose connections and
damage to lines, fittings, and ether
cylinder. Ensure cylinder is securely
mounted. Be alert for odor of leak-
ing ether.
Damage or evidence of leaks
is noted, or ether cylinder is
missing, if required for mis-
sion.
c. Check and install protective cap
on fitting when ether cylinder is
not installed.
d. Close right rear engine access
cover. Install two bolts.
96 Weekly Exhaust
System
Check exhaust system pipes, clamps,
and muffler for looseness, leakage,
and damage.
Damage or leaks are noted.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:

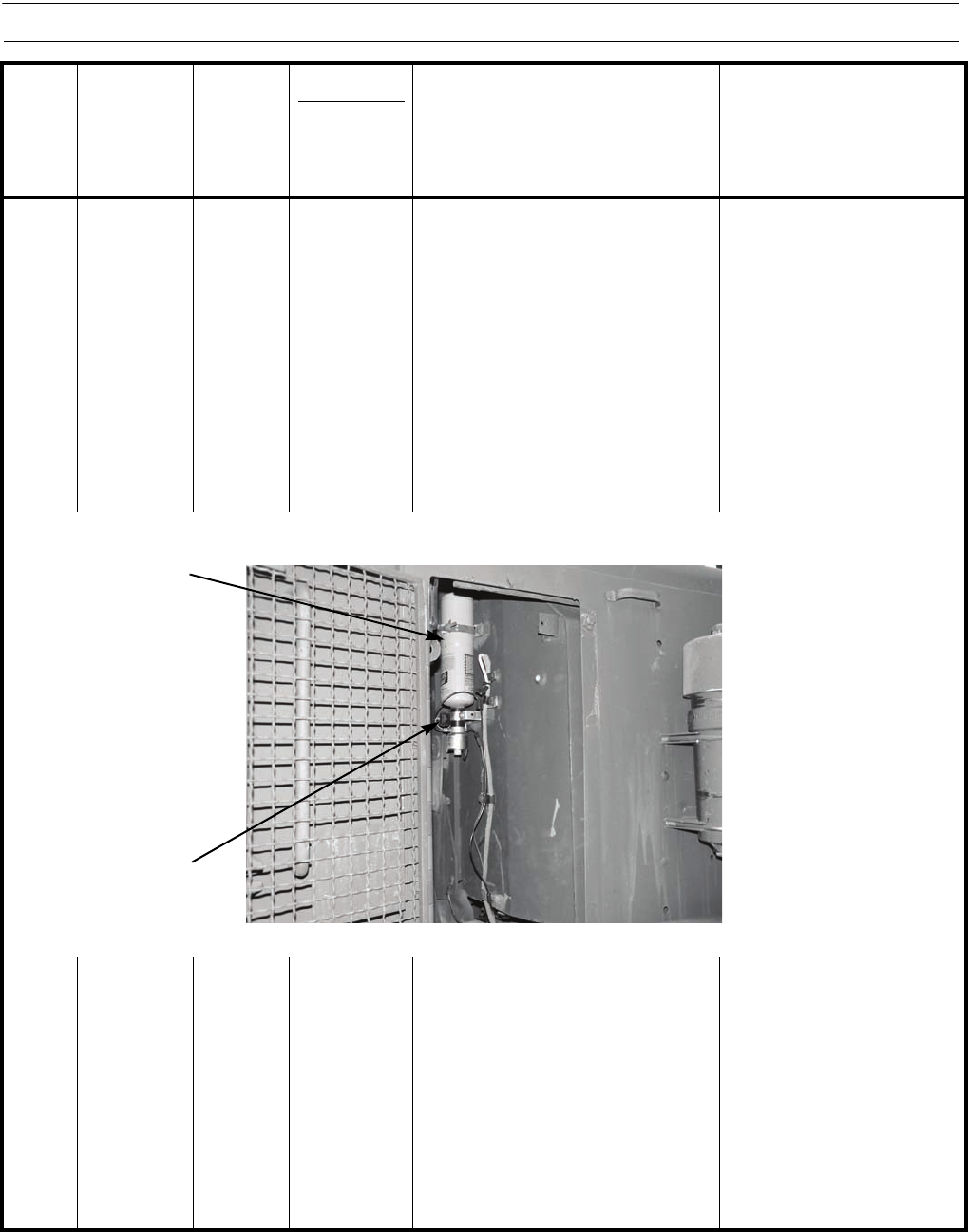

ETHER
PROTECTIVE
397-1058
BOTTLE
CAP
