Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 235

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-31
ASSEMBLY - CONTINUED

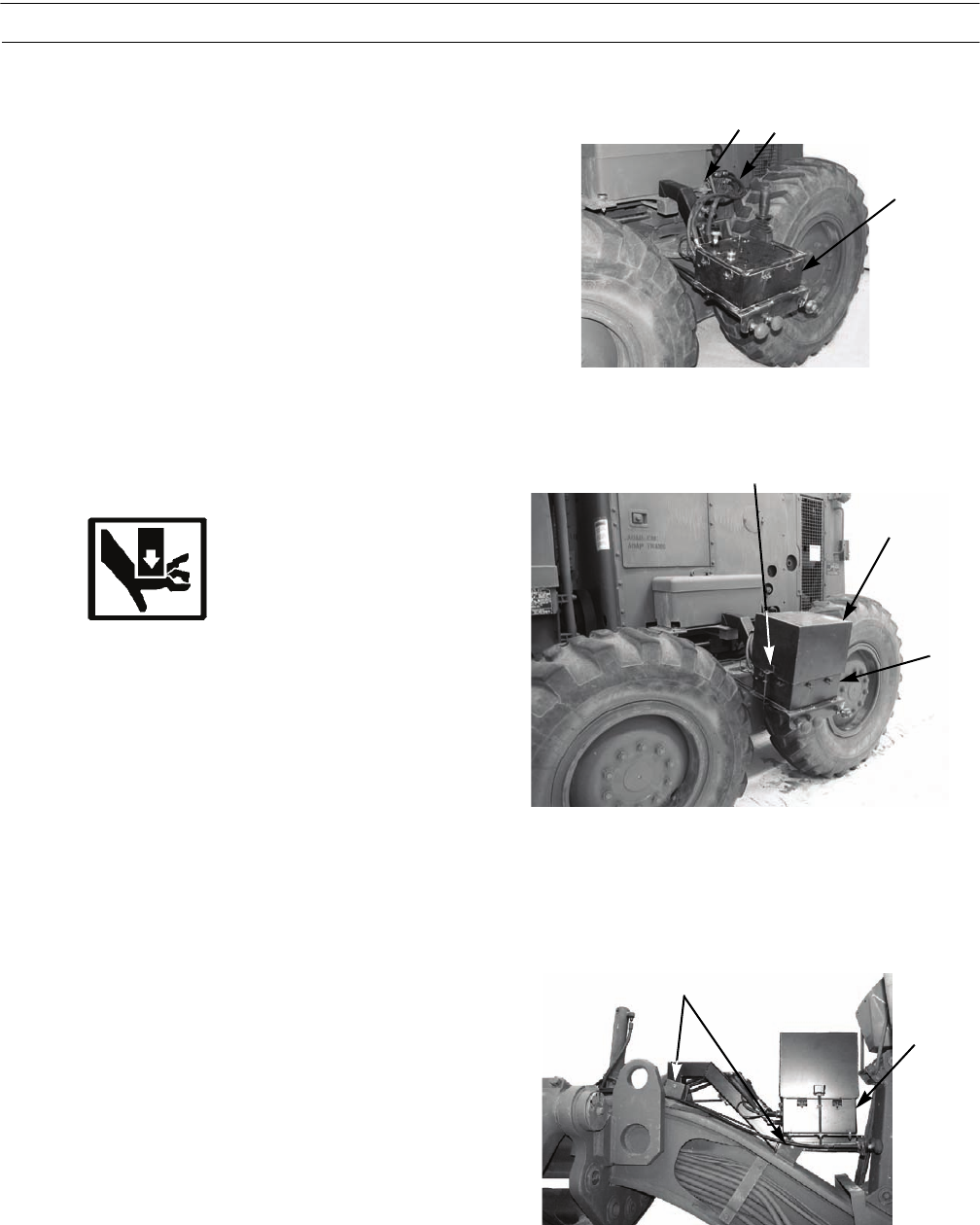

44. Disconnect remote control hoses (76), electrical con-
nector (75), and cables of the remote control box (72).
Install dust plugs on all connections.
45. Install cover (74) and two bolts (73) on remote control
box (72).
WARNING
Use extreme caution when handling heavy
parts. Provide adequate support and use
assistance during procedure. Failure to fol-
low this warning may result in injury to
personnel.
NOTE
Remote control box weighs 68 lb (31 kg).
46. With assistance, remove remote control box (72) from
the rear frame and install it on the top of the front
frame.
47. Install two bolts (71) and nuts (70) on remote control
box.
48. Install two straps (Item 20, Table 1, WP 0021 00) on
remote control box hoses and cables.
75
76
397-1085
72
74
72
397-1084
73
70,71
72
397-1083
