Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 225

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-21
DRIVING THE REAR FRAME - CONTINUED
WARNING
• Stop the unit immediately if the LOW AIR indicator light illuminates. Determine the source of the prob-
lem and correct before continuing operation. The LOW AIR light will come on momentarily after start-
ing engine.
• Never shift to any gear higher than 1st gear.
• Use extreme caution when operating with the remote control. Be ready at all times to release the steer-
ing control button and pull the emergency brake control if a dangerous situation should occur. Failure to
follow these warnings may result in injury to personnel or damage to machine.
4. Moving the machine
:
WARNING
Gear selection control has all six gears available. Only use 1st gear. Failure to follow this warning may result
in injury to personnel or damage to machine.
a. Shift the transmission to 1st gear.
b. Move the transmission direction control to the desired direction.
c. Move the differential lock switch to OFF.
d. Turn off the parking/emergency brake by pushing in the control knob.
e. Release the service brakes by pressing button on steering control. Machine will move when button is pressed.
NOTE
• It is not necessary to push button on clutch control when engaging clutch.
• Button is only used when connecting clutch cable and engine is off.
f. Engage clutch gradually by rotating the clutch control to the right. Stop additional clutch engagement when the
engine starts to lug.
CAUTION
DO NOT steer with differential lock switch in ON position.
g. If necessary, turn on the differential lock switch.

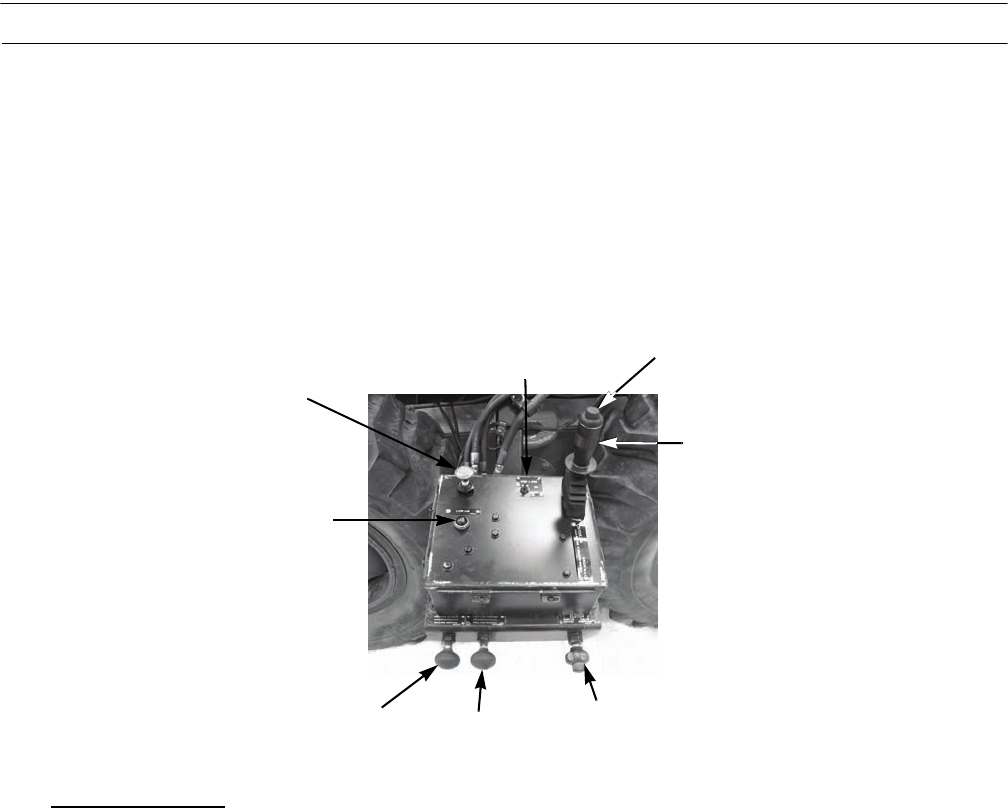

GEAR
FORWARD/
CLUTCH
LOW AIR
PARKING
DIFFERENTIAL
LOCK SWITCH
STEERING
SERVICE
397-1087
BRAKE
CONTROL
PRESSURE
INDICATOR
BRAKE
CONTROL
CONTROL
SELECTION
CONTROL
REVERSE
CONTROL
CONTROL
