Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 168

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-24
67
(Con’t)
a. Check radiator for debris.
b. Remove debris. If debris cannot be
removed, notify Unit Maintenance.
c. Visually check radiator for signs
of leakage or damage.
Damage that would impair
operation is evident.
68 After Air System
Tank

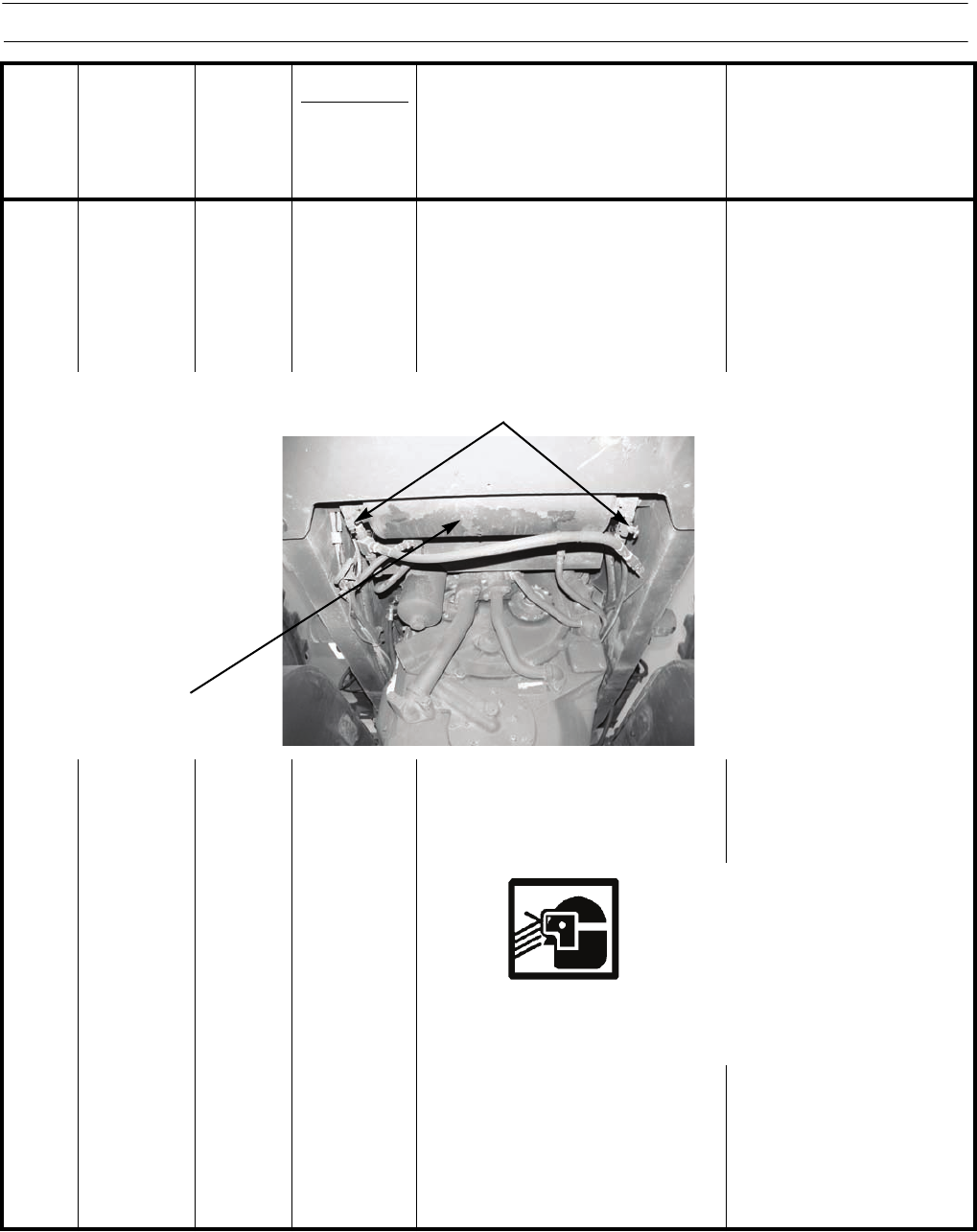

a. Check air tank, lines, and valves
under rear of engine compartment
for leaks and damaged or missing
parts.
Any air leak or damage that
would impair operation is evi-
dent.
WARNING
Wear suitable eye protection and keep face and eyes away
from exhausting air tank drain valves. Failure to do so may
cause injury to personnel.
b. Open both drain valves on each
end of air tank. Drain all moisture
and sediment. Check for oil in
draining air. If oil is noted, notify
Unit Maintenance. Close drain
valves when all air and moisture
has vented.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
AIR TANK
DRAIN VALVES
397-1052
