Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 148

OPERATORS MANUAL
TM 5-3805-261-10

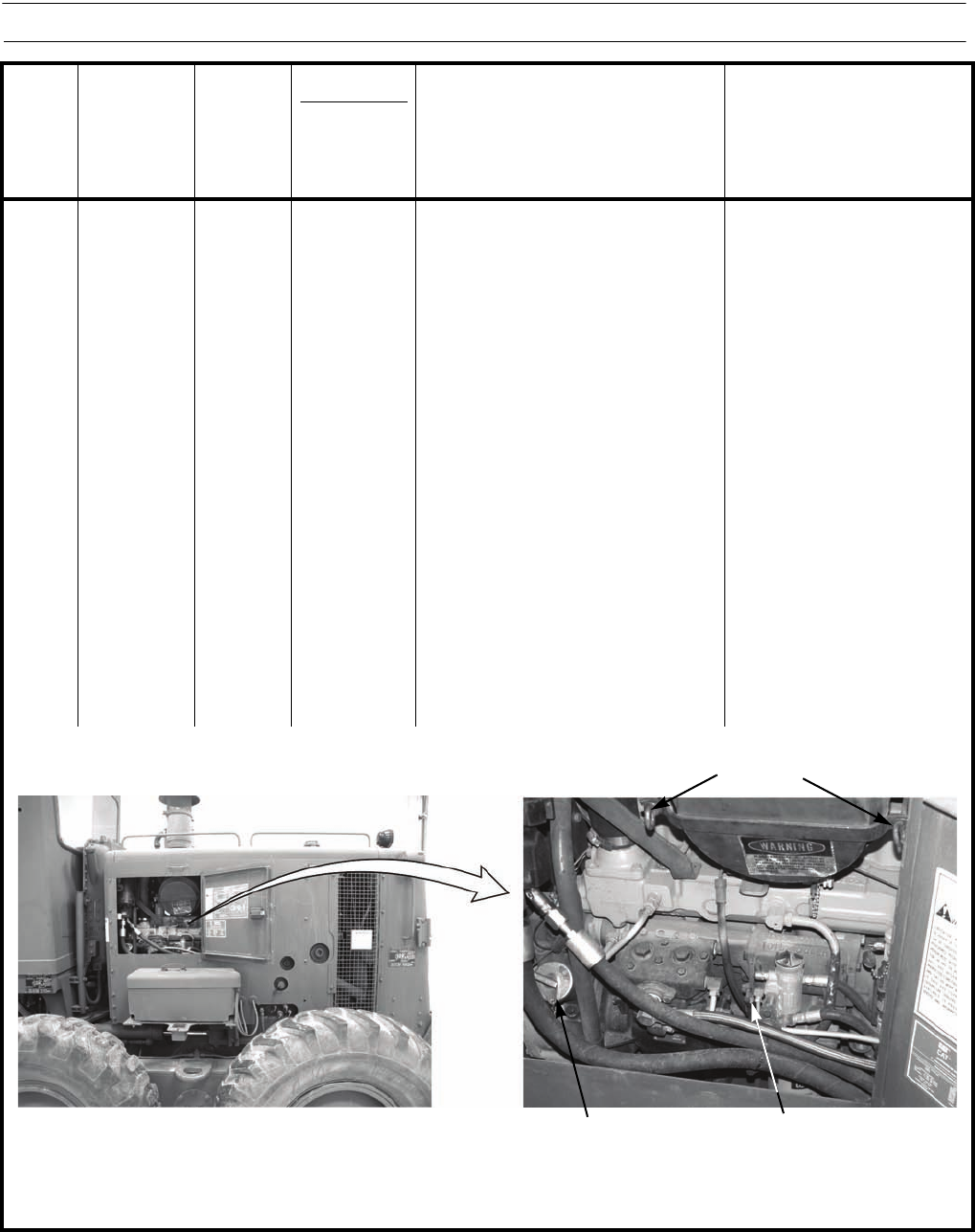

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-4
7 Before 0.1
Hours
Engine Oil
Level Check
a. Clean area around engine dipstick
and fill cap.
b. Remove dipstick, clean, and rein-
stall. Remove dipstick and check
level of oil on dipstick. Level
should be in area indicated on the
ENGINE STOPPED AND OIL
COLD side of the dipstick. Main-
tain the level in the SAFE RANGE
on the dipstick.
c. Add oil (Item 10, 11, 12, or 14,
WP 0022 00) as required through
filler opening. Reinstall fill cap.
8 Before Primary and
Secondary
Air Filters
a. Loosen both eyebolts and remove
air filter cover.
b. Make sure primary and secondary
air filters are present.
c. Install cover and tighten eyebolts.
d. Close left side engine compart-
ment access door.
Missing or damaged air filter
components.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
ENGINE OIL FILL CAP
EYE BOLTS
397-937
ENGINE OIL DIPSTICK
