Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 224

OPERATORS MANUAL
TM 5-3805-261-10
SECTIONALIZATION FOR AIR TRANSPORT - CONTINUED 0019 00
0019 00-20
DISASSEMBLY - CONTINUED

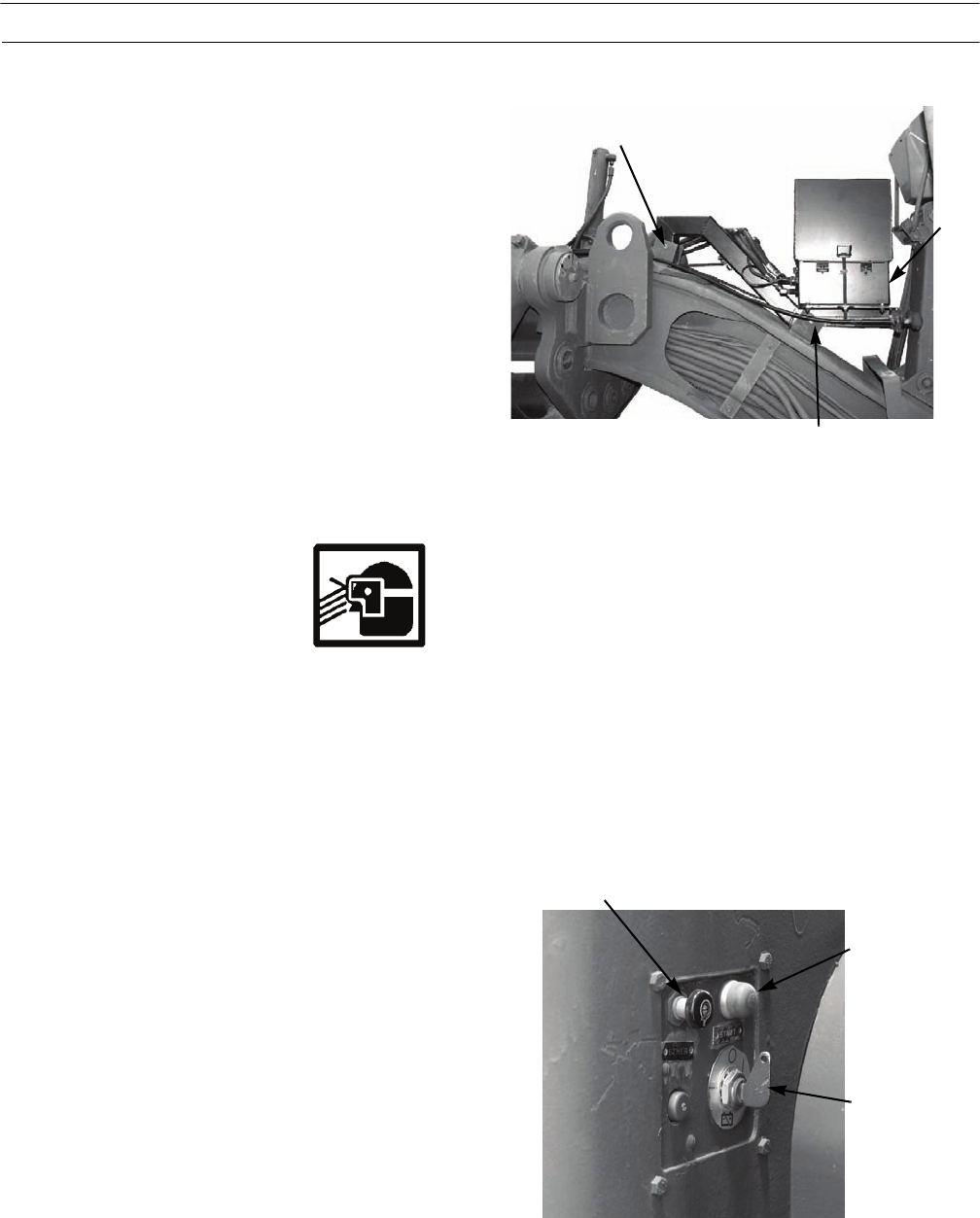

82. Install two bolts (70) and nuts (71) on remote control
box (72).
83. Install two straps (Item 20, WP 0021 00) on remote
control box hoses and cables.
84. Store the articulation cylinder pins, pump driveshaft,
driveshaft guard, screw jacks, tools, jumpers, and all
other loose parts in the tool box on the front frame.
Secure toolbox lid. Refer to the tool box inventory list
and ensure that all parts are accounted for.
85. Cover the pivot pins and pivot pin bores with plastic
or other material to prevent foreign matter from accu-
mulating on the machined surfaces. Secure the cover-
ing with tape.
DRIVING THE REAR FRAME
WARNING
Wear hearing protection while operating the rear section of the grader. Failure to follow this warning may
result in hearing loss.
NOTE
• Remote control operation can be accomplished by one person. Use a ground guide to aid in starting and
aligning the frames for reassembly.
• The backup alarm should sound when the transmission direction lever is placed in reverse (R).
1. Turn the battery disconnect switch on.
2. Move the throttle to the low idle position.
3. Press the start button to start the engine. The ether
starting aid may be required in cold weather condi-
tions (WP 0006 00).
70,71
70,71
397-1083
72
ETHER STARTING
AID
ENGINE
BATTERY
DISCONNECT
SWITCH
397-1088
START
BUTTON
