Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 160

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-16
47 After 0.1 Hours Engine Oil
Level Check
NOTE
To ensure an accurate reading, machine must be parked on
level ground. Allow machine to idle for 10 minutes.
a. Clean area around engine dipstick
and fill cap.
b. With engine at low idle, remove
dipstick, clean, and reinstall.
Remove dipstick and check level of
oil on ENGINE IDLING side of
dipstick. Level should be between
ADD and FULL.
c. Add oil (Item 10, 11, 12, 13, or 14,
WP 0022 00) as required through
filler opening. Reinstall fill cap.
d. Close engine compartment access
doors.
e. Shut down engine (WP 0005 00).
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:

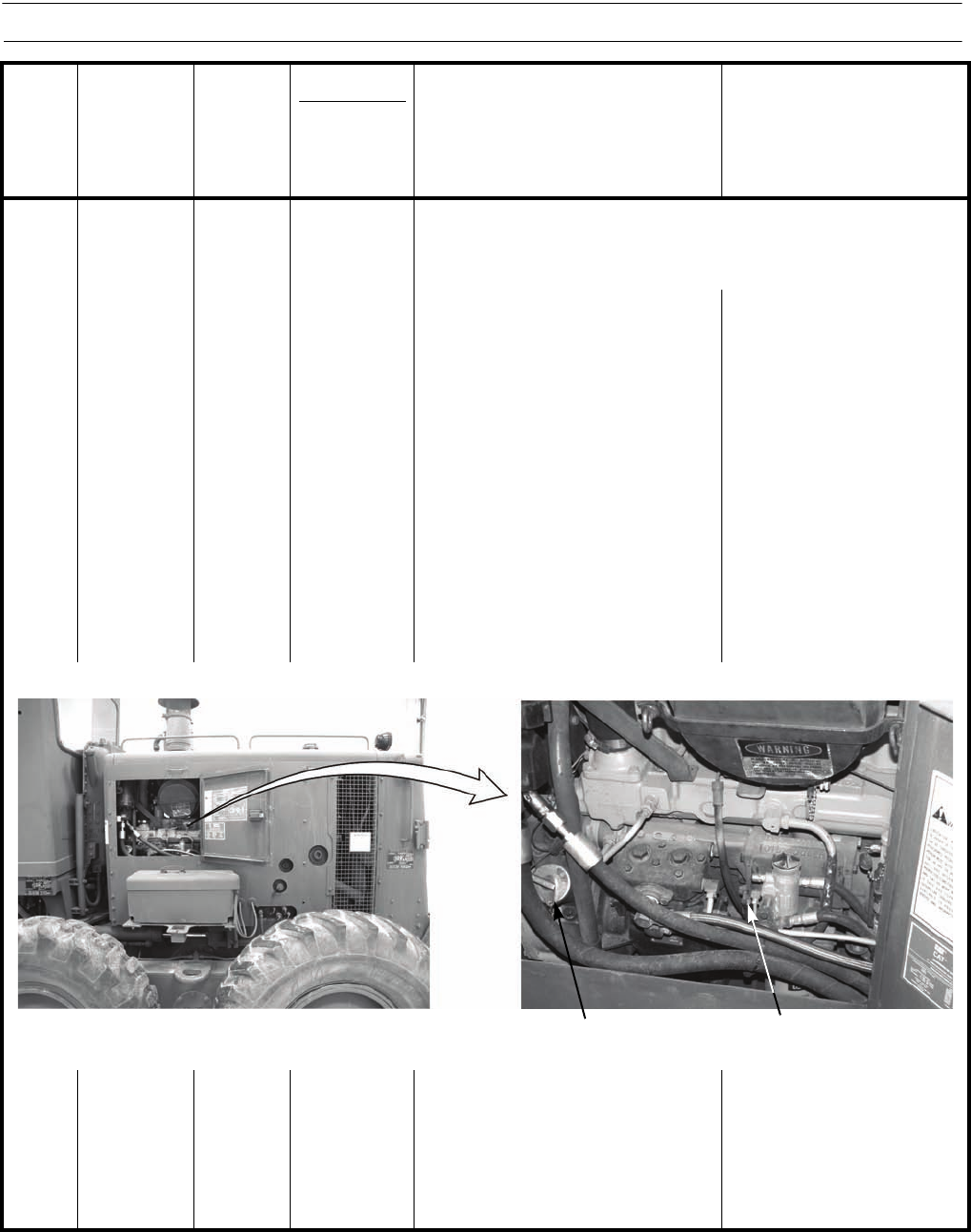

ENGINE OIL FILL CAP
397-937
ENGINE OIL DIPSTICK
