Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 183

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-39
102 Monthly 0.2 Hours Blade Lift
and Center-
shift Cylin-
ders
a. Apply GAA grease (Item 8, WP
0022 00) to blade lift cylinder
grease fittings.
b. Apply GAA grease (Item 8, WP
0022 00) to centershift cylinder
grease fittings.
NOTE
If any remote lubrication lines are damaged, notify Unit
Maintenance. These lines must be filled with grease.
103 Monthly 0.2 Hours Radiator
Fan Bearing
Apply GAA grease (Item 8, WP 0022
00) to fan bearing grease fittings.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:

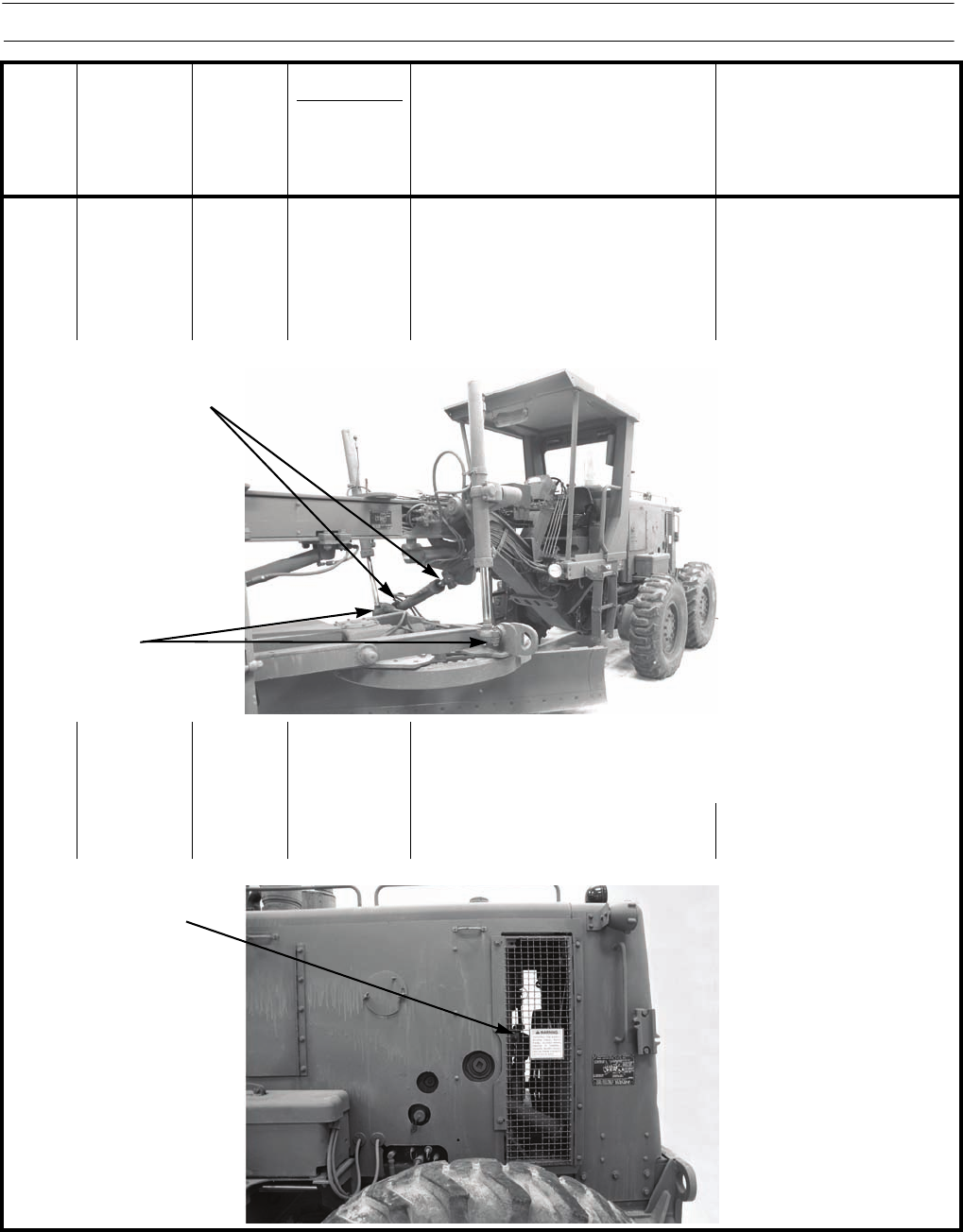

CENTERSHIFT
CYLINDER - GAA
BLADE LIFT
CYLINDER - GAA
397-1059
FAN BEARING - GAA
397-1060
