Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 173

OPERATORS MANUAL
TM 5-3805-261-10
PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-29
88 After Right Front
Wheel and
Tire
a. Visually check right front tire for
cuts or bulges in tread or sidewall
area. Check for uneven wear or
underinflation. Look for foreign
material embedded in tread or side-
wall area. Remove foreign material
if found.
Tire has cuts or bulges in tread
or sidewall area or other dam-
age that would impair opera-
tion.
b. Check for loose or missing lug
nuts, and valve stem with cap.
Damaged valve stem or miss-
ing two or more lug nuts.

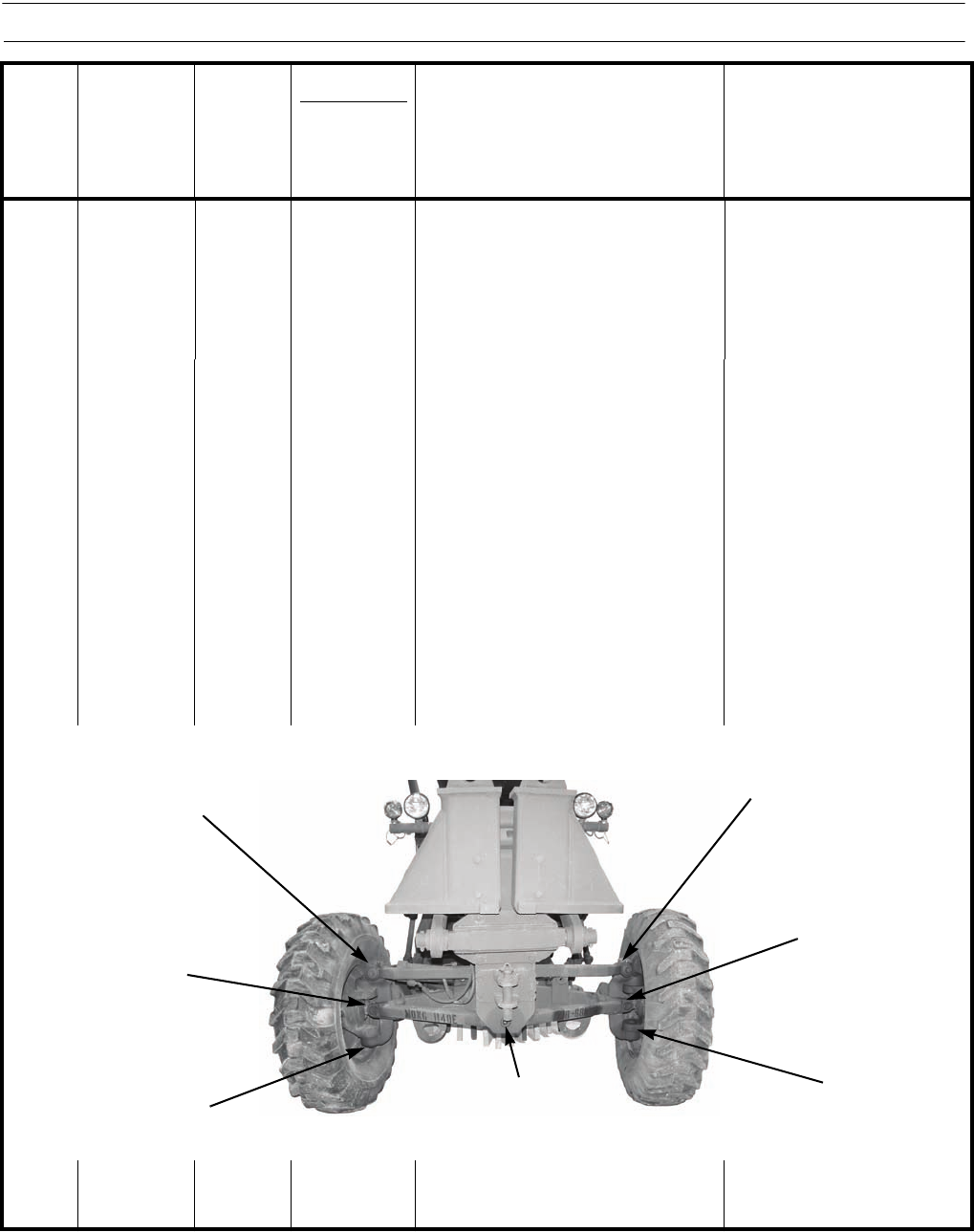

89 Weekly 0.2 Hours Front End
Grease
Points
a. Apply GAA grease (Item 8, WP
0022 00) to two lean bar bearing
grease fittings.
b. Apply GAA grease (Item 8, WP
0022 00) to four wheel lean bearing
grease fittings.
c. Apply GAA grease (Item 8, WP
0022 00) to four king pin bearing
grease fittings.
d. Apply GAA grease (Item 8, WP
0022 00) to axle oscillation bearing
grease fittings.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
AXLE OSCILLATION
KING PIN
WHEEL LEAN
BEARINGS - GAA
LEAN BAR
BEARINGS - GAA
KING PIN
BEARINGS - GAA
BEARINGS - GAA
WHEEL LEAN
LEAN BAR
BEARINGS - GAA
397-1053
BEARING - GAA
(1 FITTING)
(2 FITTINGS)
(1 FITTING)
(2 FITTINGS)
(2 FITTINGS)
BEARINGS - GAA
(2 FITTINGS)
(FRONT)
