Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 50

OPERATORS MANUAL
TM 5-3805-261-10
DESCRIPTION AND USE OF OPERATOR CONTROLS AND INDICATORS - CONTINUED 0004 00
0004 00-14

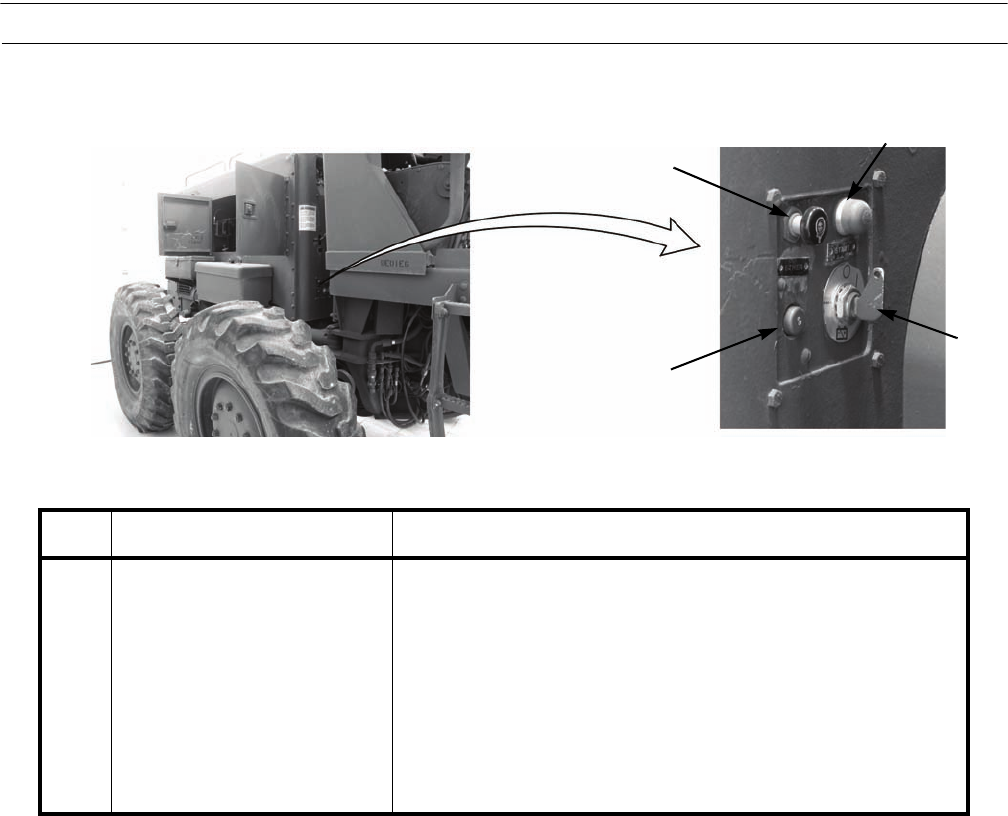

ENGINE COMPARTMENT EXTERIOR CONTROLS 0004 00
KEY CONTROL OR INDICATOR FUNCTION
70 Ether Starting Aid Switch
(130GS and 130GSCE)
Controls ether starting aid. Ether is injected into intake at a calibrated
amount for each button press.
71 Engine Start Switch (130GS
and 130GSCE)
Press to crank engine.
72 Battery Disconnect Switch
(130GS and 130GSCE)
To activate electrical system, insert key and turn switch right (ON).
Turn switch left (OFF) and remove key to turn off electrical system.
73 Main Circuit Breaker (130GS
and 130GSCE)
Provides overload protection for the electrical system. Press to reset.
397-943
