Caterpillar GRADER, ROAD, MOTORIZED, DIESEL ENGINE DRIVEN (DED), HEAVY, COMMERCIAL CONSTRUCTION EQUIPMENT (CCE) OPERATORS MANUAL Page 188

OPERATORS MANUAL
TM 5-3805-261-10

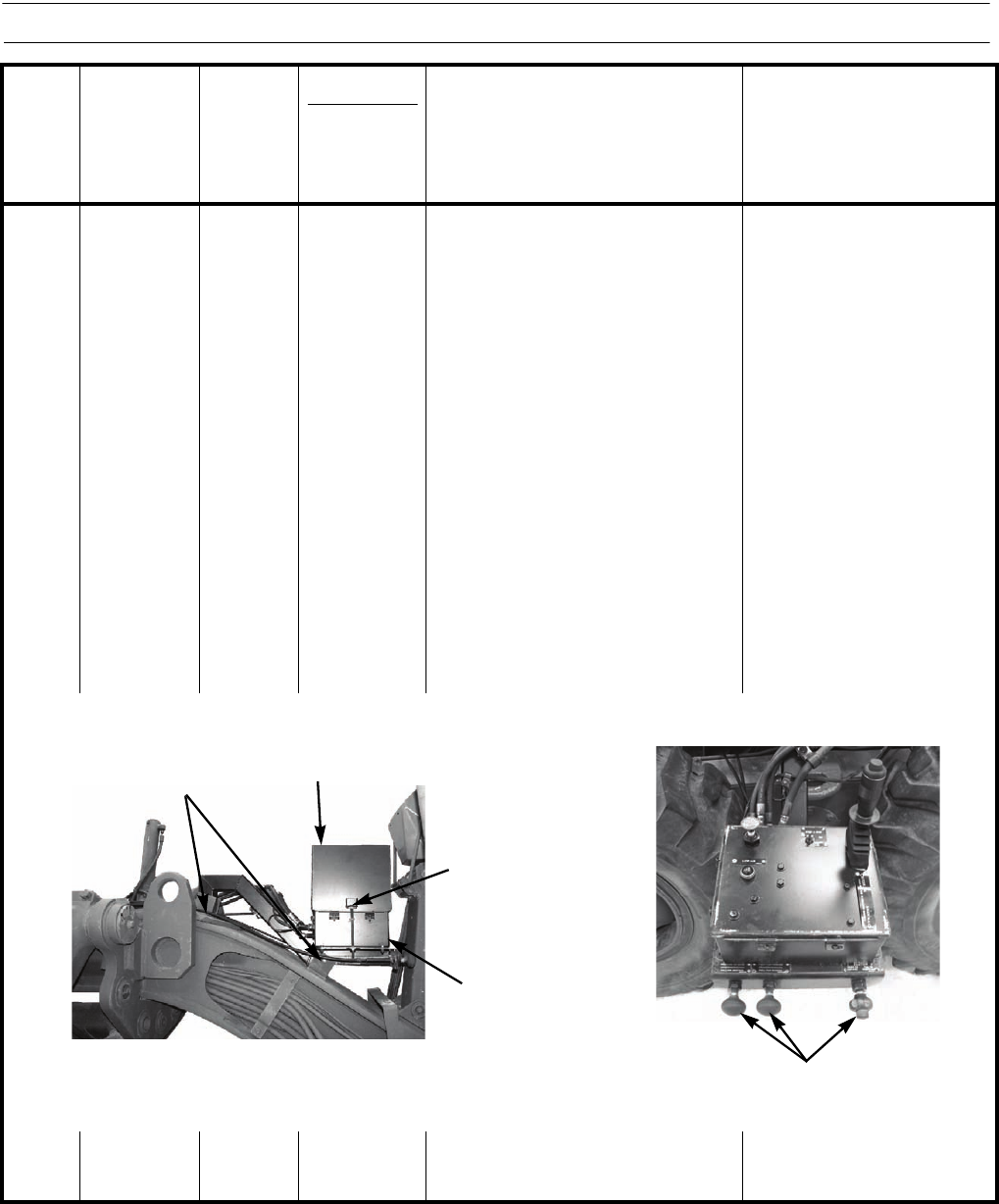

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED 0013 00
0013 00-44
END OF WORK PACKAGE
108
(Con’t)
e. Remove two bolts from control
box cover and remove cover.
f. Check controls for damage and
debris. Remove debris. Notify Unit
Maintenance if damaged.
g. Lubricate push/pull cables with
dry lubricant (Item 9, WP 0022
00).
h. Extend and retract all push/pull
cable controls. Check for binding
and damage. Notify Unit Mainte-
nance if damaged or if cables do not
move freely.
i. Install control box cover and
tighten two cover mounting bolts.
j. Install control box on frame of
machine. Install two mounting
bolts.
ITEM
NO. INTERVAL
MAN-
HOURS
LOCATION
ITEM TO
CHECK/
SERVICE PROCEDURE
NOT FULLY MISSION
CAPABLE IF:
CONTROL BOX
MOUNTING BOLTS
CONTROL BOX
COVER
CONTROL BOX
COVER MOUNTING
BOLTS
CONTROL BOX
PUSH/PULL
397-1083
397-1087
CABLE CONTROLS
