247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 92

Operation and Maintenance Manual
92 SEBU7494-06
Maintenance Section
Maintenance Access
g00952659

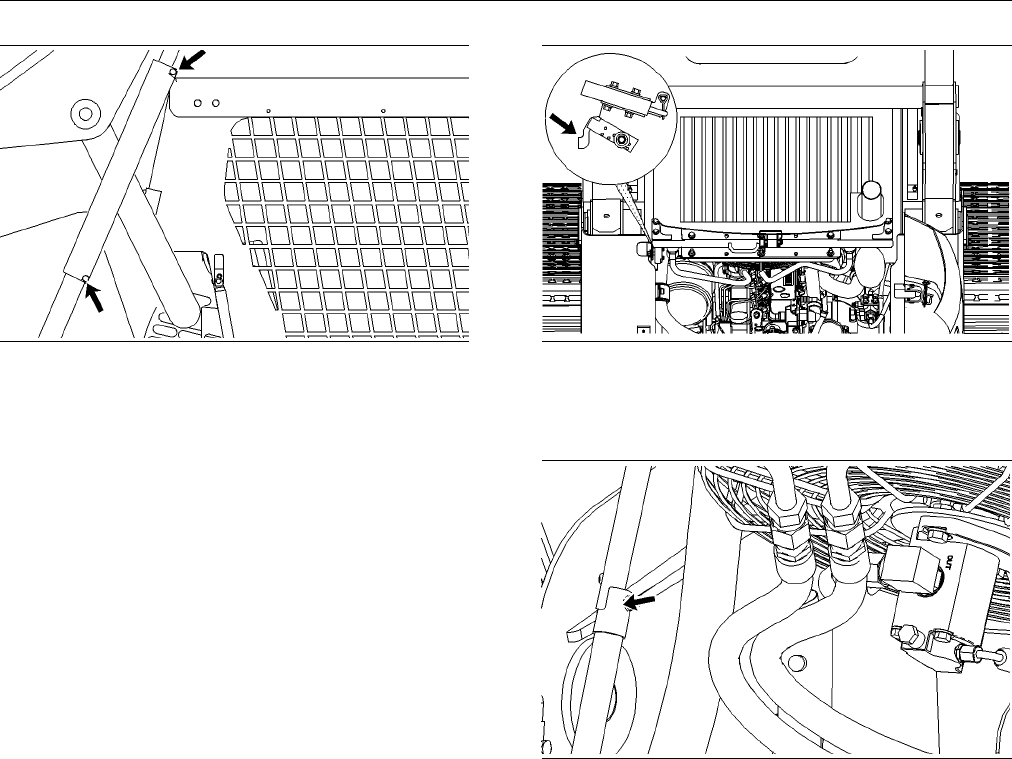

Illustration 88
4. The second person should then install the brace
over the rod of one of the lift cylinders.
5. Lower the loader arms slowly until the brace is
held tightly between the rod and the cylinder.
6. Secure the two retaining pins through the brace
below the rod.
Disengage the Lift Arm Brace
(Extended Lift)
1. Mount the machine. Fasten the seat belt. Lower
thearmrestandremainintheseatuntilthebrace
is removed.
2. Slowly raise the lift arms until the brace is free.
3. A second person must remove the retaining pins
and the brace from the rod.
4. Slowly lower the lift arms to the ground.
5. The second person should return the brace to
the storage location. Attach the brace with the
retaining pins.
i01848989
Radiat or Tilting
SMCS Code
: 1353-506; 1353-509
1. Open the engine access door. Refer to Operation
and Maint
enance Manual, “Access Doors and
Covers”.
g00941929
Illustration 89
2. Pull the release lever for the radiator latch. Tilt the
radiator upward.
g00960146
Illustration 90
3. Make sure that the strut lock is in the LOCKED
position.
4. In order to tilt the radiator downward, push the
strut lock to the left.
5. Tilt the radiator downward. Make sure that the
radiator is in the LOCKED position.
6. Close the engine access door.
Tilting the Radiator Guard
1. Open the engine access door. Refer to Operation
and Maintenance Manual, “Access Doors and
Covers”.
