Window Washer Reservoir - Fill
g00954398

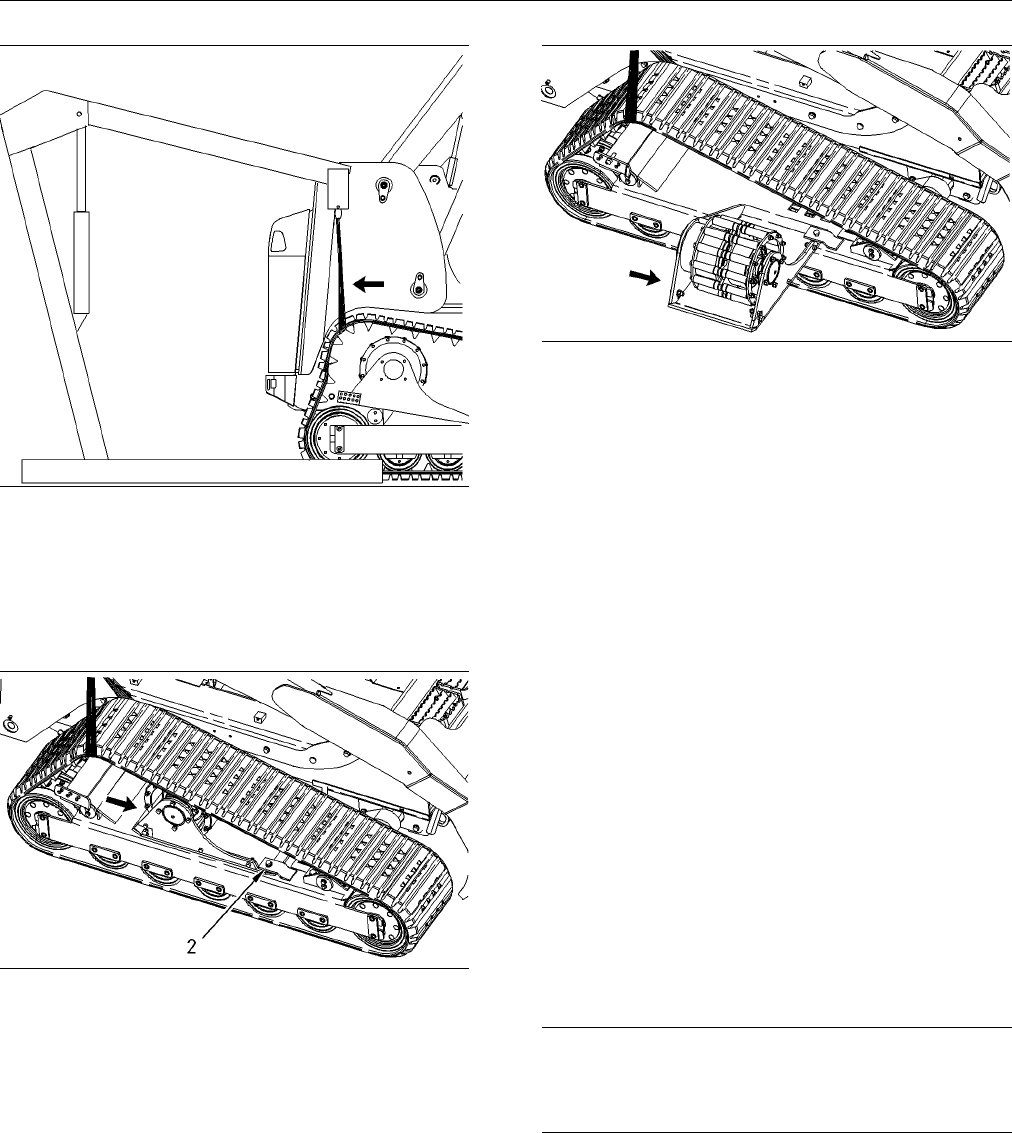

Illustration 193
7. Use a lifting device that is suitable in order to lift
the track. Lift the track in order to remove the drive
sprocket. It may be necessary to insert a chock in
front of the rear idler in order to prevent the track
from spinning as you lift the track.
g00954428
Illustration 194
8. Use the track tensioner and slide the drive frame
forward into the bracket. Fully insert one of the
bolts for the drive frame through the bracket and
the drive frame (2).
9. Remove the track tensioner.
g00954780
Illustration 195
10. Swing the drive frame outward. This will provide
clearance in order to remove the track.
11. Remove the lifting device.
12. Remove the track. Start by removing the track at
the front of the machine. Slide the drive lugs of
the track past the front idlers and continue toward
the rear of the machine.
Installing the Track 287
1. Follow the steps in reverse order in order to
replace the track.
2. Tighten the track to the proper tension. Refer
to Operation and Maintenance Manual, “Track
(Rubber) - Inspect/Adjust”.
i01810053
Window Washer Reservoir -
Fill
(If Equip
ped)
SMCS Code: 7306-544-KE
NOTICE
When opera
ting in freezing temperatures, use
Caterpillar nonfreezing window washer solvent or
equivalent. System damage can result from freezing.
