247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 68

Operation and Maintenance Manual
68 SEBU7494-06
Operation Section
Operation
Operating on a Transition

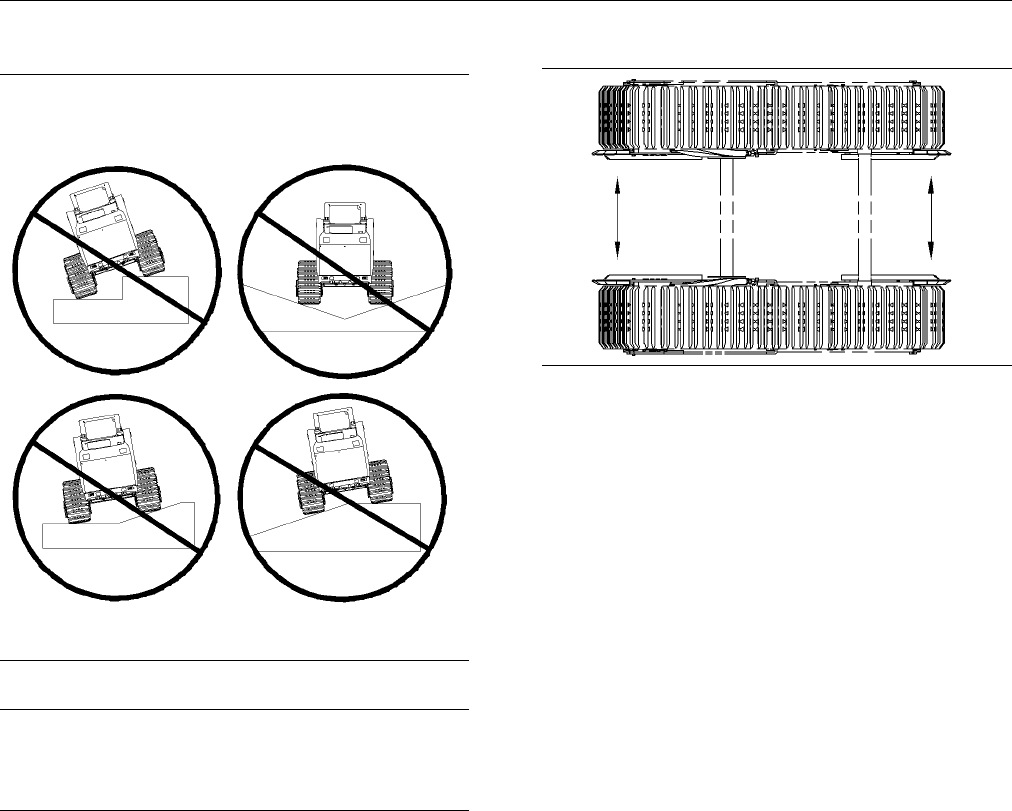

g00803882
Illustration 49
NOTICE
Avoid operating this machine on transitions. Operating
this mach
ine on transitions may cause the tracks to
derail.
When the machine is operated on a transition, the
tracks ma
y not be supported fully.
When the tracks are not supported fully, the wheels
may ride o
n top of the drive lugs of the tracks.
The track will derail if you continue to travel on the
transition.
If you must travel on a transition, travel the machine
at 90° to the transition. Do not perform hard turns or
fast tur
ns when you are operating the machine on
the transition.
Track Guides
g00929633
Illustratio
n50
Track Guides are available for the 267 and 277
machines on
ly. The use of track guides on the 267
and 277 machines will minimize the risk of derailing
the tracks on a transition or a slope. Track guides
should not b
eusedasasubstituteforproper
machine operation. Even if track guides are
installed, the machine should not be operated on
slopes tha
t are greater than 3 to 1 (18.4°)..
Track guides are installed on the undercarriage
frame. The
track guides work in the following manner.
When a track starts to derail the track will contact the
guide. The track will start to climb on top of the guide.
If the ope
rator continues to run the machine in the
same direction, the drive motor for the track will stall.
At this point, the operator can reverse the direction of
the machi
ne and the track will go back into position.
The life of the tracks and the bogies will be reduced
if the tr
acks are derailed against the track guides.
Any wear or damage to the tracks, the bogies or
the undercarriage components that is caused by
deraili
ng the tracks is not warrantable.
Track guides will wear with use. Track guides that are
worn may
damage the tracks. Damage to the tracks
that results from worn track guides is not warrantable.
Replace the track guides as it is necessary.
Contact your local Caterpillar dealer for the correct
installation procedure. Refer to Special Instruction,
REHS11
99, “Installation Procedure for the Multi
Terrain Loader Track Guide”.
