247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 13

Operation and Maintenance Manual
SEBU7494-06 13
Safety Section
Safety Messages
Mounting and Dismounting (6)

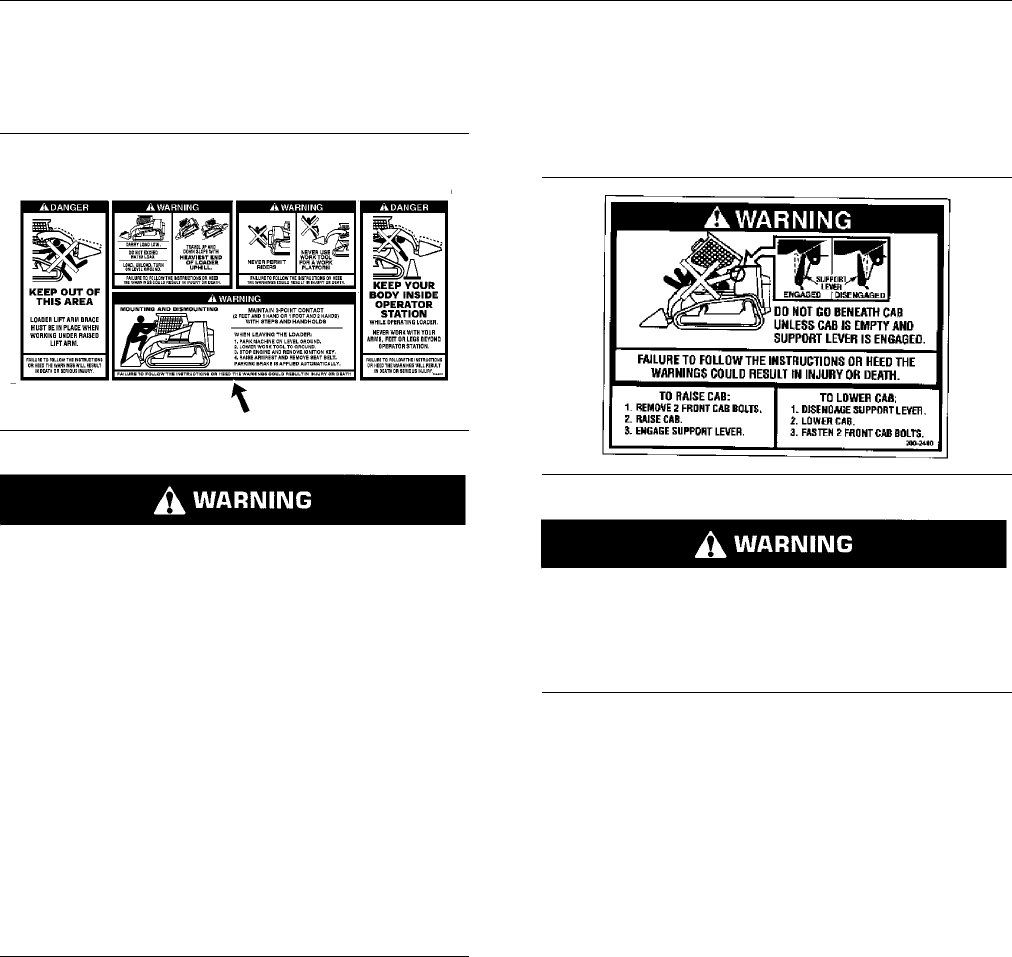

This warning message is located below the operator
seat.
g00943129
Mounting and Dismounting
Maintain 3-point contact (2 feet and 1 hand or 1
foot and 2 hands) with steps and handholds
When Leaving Loader:
1. Park machine on level ground
2. Lower work tool to ground
3. Stop engine and remove ignition key
4. Raise arm rest and remove seat belt
Park Brake is applied automatically
Failure to follow the instructions or heed the warn-
ings could result in injury or death
Cab Support (7)
This warning message is located on the left side of
the machine near the cab support lever. This warning
message is also located inside the cab on the left
side.
g00943135
Do not go beneath cab unless cab is empty and
support lever is engaged.
Failure to follow the instructions or heed the warn-
ings could result in injury or death.
