247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 61

Operation and Maintenance Manual
SEBU7494-06 61
Operation Section
Machine Operation

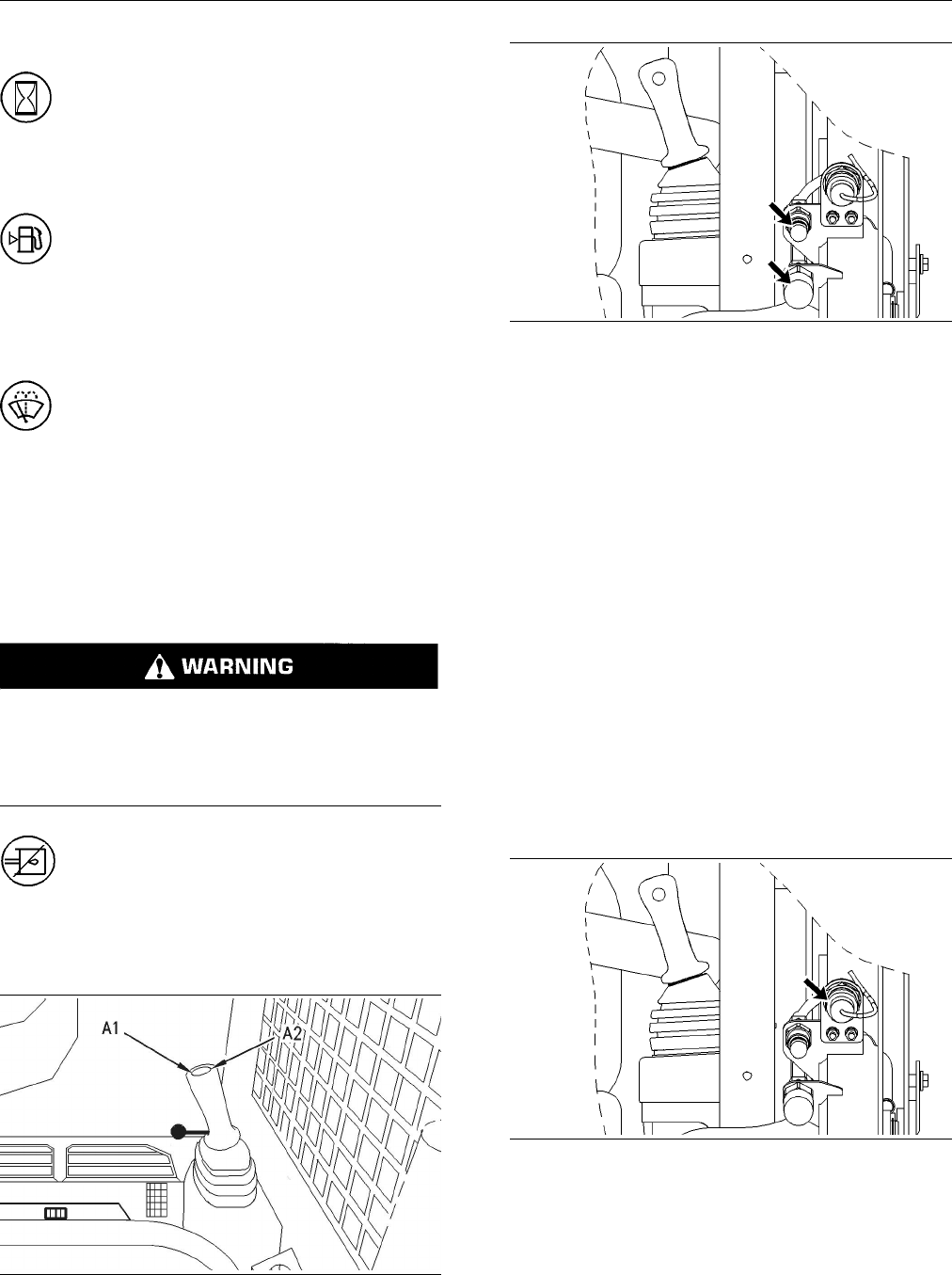

Service Hour Meter (19)
Service Hour Meter – The service hour
meter should be used to determine service
hour maintenance intervals.
Fuel Level Gauge (20)
Fuel Level Gauge – Theneedleinthe
yellow range indicates low fuel.
Window Wiper and Window Washer
(21)
Window Wiper and Window Washer (If
Equipped) – Movetheswitchtothemiddle
position in order to turn on the wiper. Press
on the right side of the switch in order to operate the
washer. Press on the left side of the switch in order
to turn off the wipers.
Hydraulic Shutoff Control (22)
Note: Activate the hydraulic shutoff control when you
are roading the machine.
Personal injury or death can result from the work
tool falling.
Fully lower the loader arms before you release the
hydraulic system pressure.
Hydraulic S hutoff Control – Press on
the bottom of the switch in order to disable
the hydraulic functions. Press the top of the
switch in order to activate the hydraulic functions.
Auxiliary Hydraulic Control (23)
g0090285
3
Illustration 40
g00902862
Illustration 41
Note: Simple hydromechanical work tools may be
shipped without hydraulic oil. Uneven movement
may occur until all the air has been removed from the
work tool. You may need to add hydraulic oil to the
machine after the machine fills the circuits of the work
tool. Refer to Operation and Maintenance Manual,
“Hydraulic System Oil Level - Check” for the proper
procedure for checking the hydraulic oil level.
Auxiliary Hydraulic Control – Press the left side of
the auxiliary hydraulic control (A1) in order to provide
hydraulic oil flow to the lower auxiliary hydraulic
line. Press the right side of the auxiliary hydraulic
control (A2) in order to provide hydraulic oil flow to
the upper auxiliary hydraulic line. The machine may
be equipped with a auxiliary hydraulic control that is
proportional. On machines that are equipped with
a proportional control, hydraulic flow will vary with
the amount of pressure that is applied to auxiliary
hydraulic control.
Auxiliary Electrical Control (24)
g00897773
Illustration 42
