247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 10

Operation and Maintenance Manual
10 SEBU7494-06
Safety Section
Safety Messages
There are sever
al specific safety messages on this
machine. The exact location of the hazards and
the description of the hazards are reviewed in this
section. Plea
se become familiarized with all safety
messages.
Make sure tha
t all of the safety messages are legible.
Clean the safety messages or replace the safety
messages if you cannot read the words. Replace
the illustra
tions if the illustrations are not legible.
When you clean the safety messages, use a cloth,
water and soap. Do not use solvent, gasoline, or
other harsh
chemicals to clean the safety messages.
Solvents, gasoline, or harsh chemicals could loosen
the adhesive that secures the safety message. Loose
adhesive wi
ll allow the safety message to fall.
Replace any safety message that is damaged, or
missing. If
a safety message is attached to a part
that is replaced, install a safety message on the
replacement part. Any Caterpillar dealer can provide
new safety
messages.

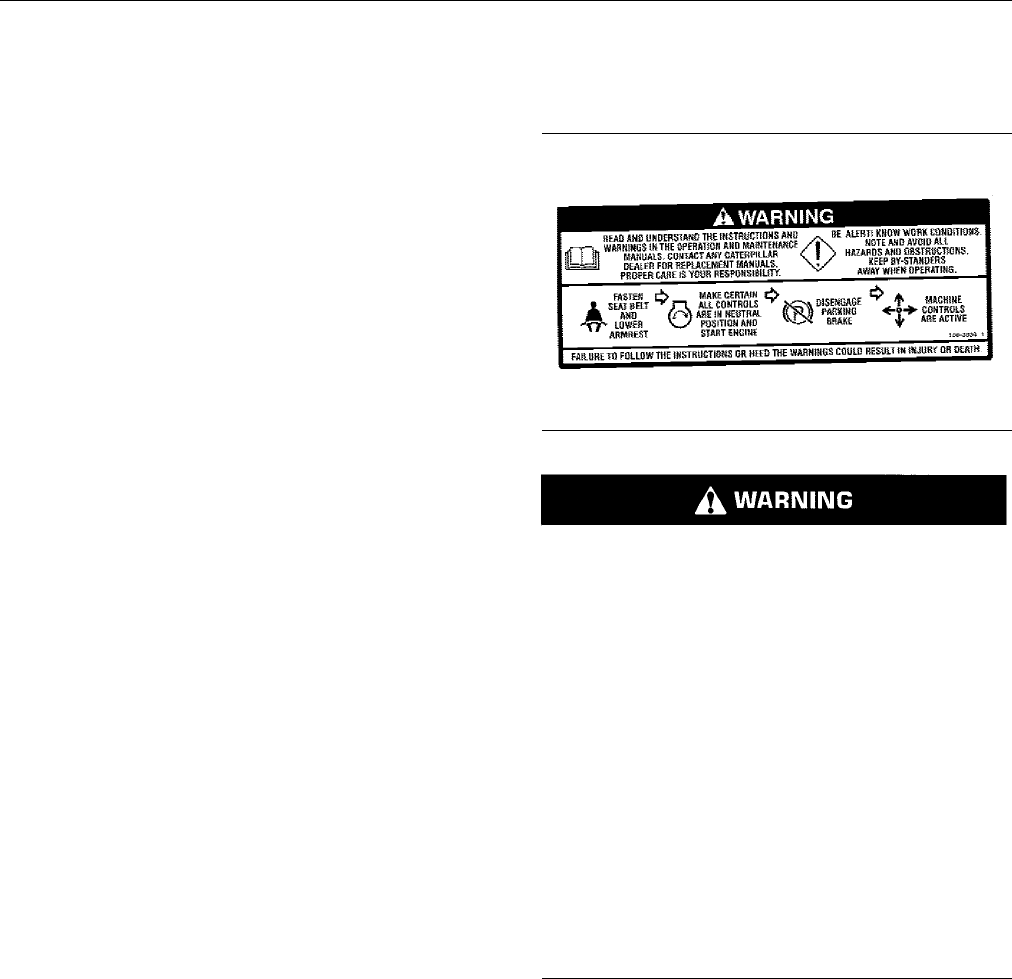

Do Not Operate (1)
This warning message is located inside the cab on
the left side.
g00943091
Read and understand the instructions and warn-
ings in the operation and maintenance manuals.
Contact any Caterpillar dealer for replacement
manuals. P roper care is your responsibility.
Be alert! Know work conditions. Note and avoid all
hazards and obstructions. Keep by-standers away
when operating.
Fasten seat belt and lower armrest.
Make certain all controls are in neutral position
and start engine.
Disengage parking brake.
Machine controls are active.
Failure to follow the instructions or heed the warn-
ings could result injury or death.
