Engine Oil Level - Check
i01878938
Engine Oil Level - Check
SMCS Code: 1348-535-FLV
NOTICE
Do not overfill the crankcase. Engine damage can re-
sult.
1. Stop the engine and allow the oil to drain back
into the oil pan.
2. Open the engine access door. Refer to Operation
and Maintenance Manual, “Access Doors and
Covers”.
3. Tilt the radiator upward. Refer to Operation and
Maintenance M
anual, “Radiator Tilting”.

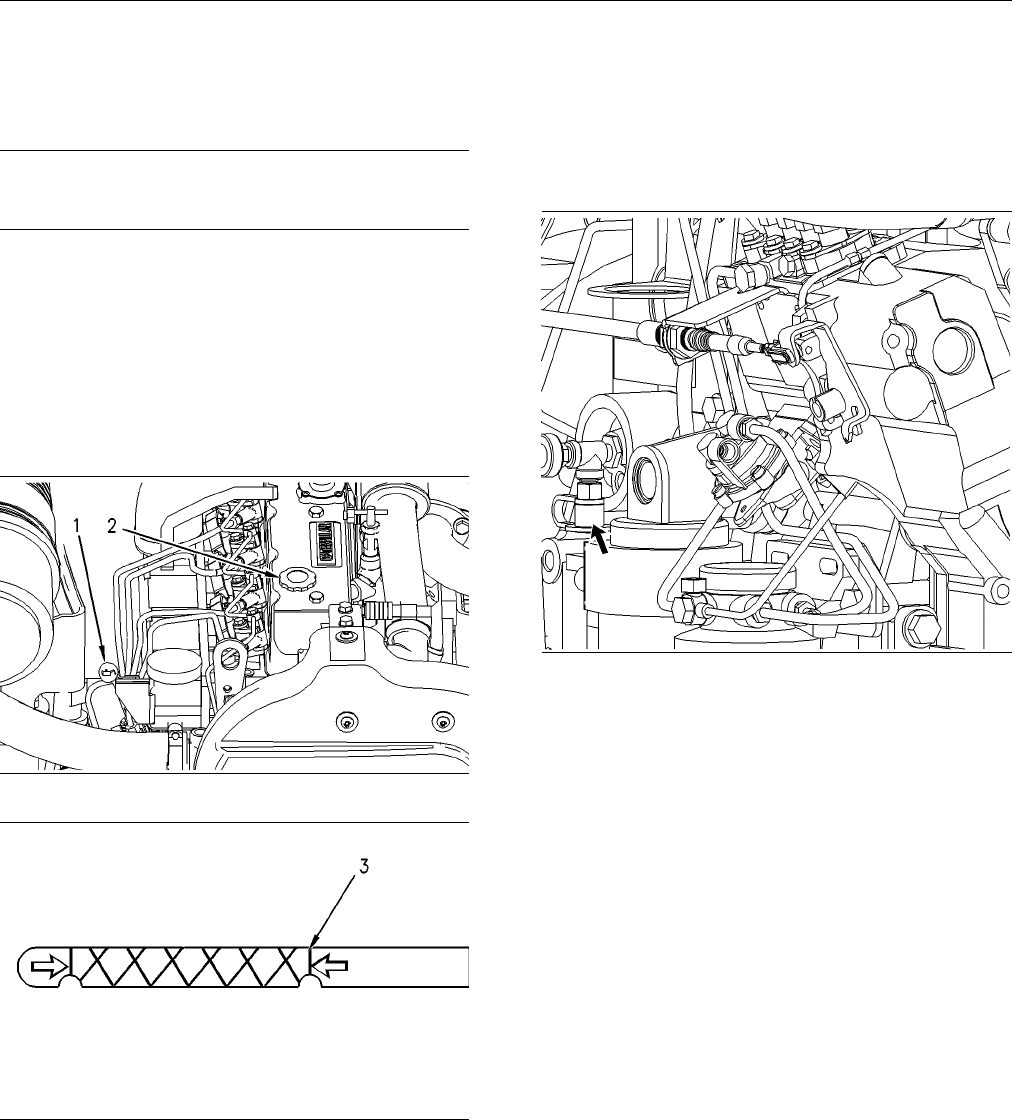

g00956243
Illustration 125
g00850465
Illustration 126
4. Maintain the oil level to the “FULL” mark (3) on
the dipstick (1).
5. If necessary, remove the oil filler cap (2) and add
oil.
6. Clean the oil filler cap and install the oil filler cap.
7. T ilt the radiator downward.
8. Close the engin
e access door.
i01850670
Engine Oil S ample - O bt ain
SMCS Code: 1348-554-SM; 7542-008
g00942687
Illustration 127
The sampling port for the engine oil is located on the
left side of the engine block.
i01878955
Engine Oil and Filter - Chang e
SMCS Code: 1308-510; 1348-044
The normal oil change interval for the machine is
Every 500 Service Hours or every year when the
following conditions are met:
•
Caterpillar oil or API Specification CG-4 multigrade
oil is used.
•
Caterpillar filters are used.
•
The altitude does not exceed 2300 m (7545 ft).
•
Sulfur content in the fuel is between 0.05% and
0.50%.
An oil change interval of Every 250 Service Hours or
every month is required when the following conditions
occur:
•
Caterpillar oil or API Specification CG-4 multigrade
oil is not used.
