247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 114

Operation and Maintenance Manual
114 SEBU7494-06
Maintenance Section
EngineAirFilterServiceIndicator-Inspect
4. Cover the air in
let opening. Clean the inside of
the air cleaner housing.
5. Inspect the ga
sket between the air inlet pipe and
the air cleaner housing. Replace the gasket if the
gasket is damaged.
6. Uncover the air inlet opening. Install a new
secondary element.
7. Install the primary element and the air cleaner
housing cover.
8. Reset the engine air filter service indicator. Refer
to Operation and Maintenance Manual, “Engine
Air Filter Se
rvice Indicator - Inspect”.
i02108294
Engine Air Filter Service
Indicator -
Inspect
SMCS Code: 7452-040
NOTICE
Service the
air cleaner only with the engine stopped.
Engine damage could result.

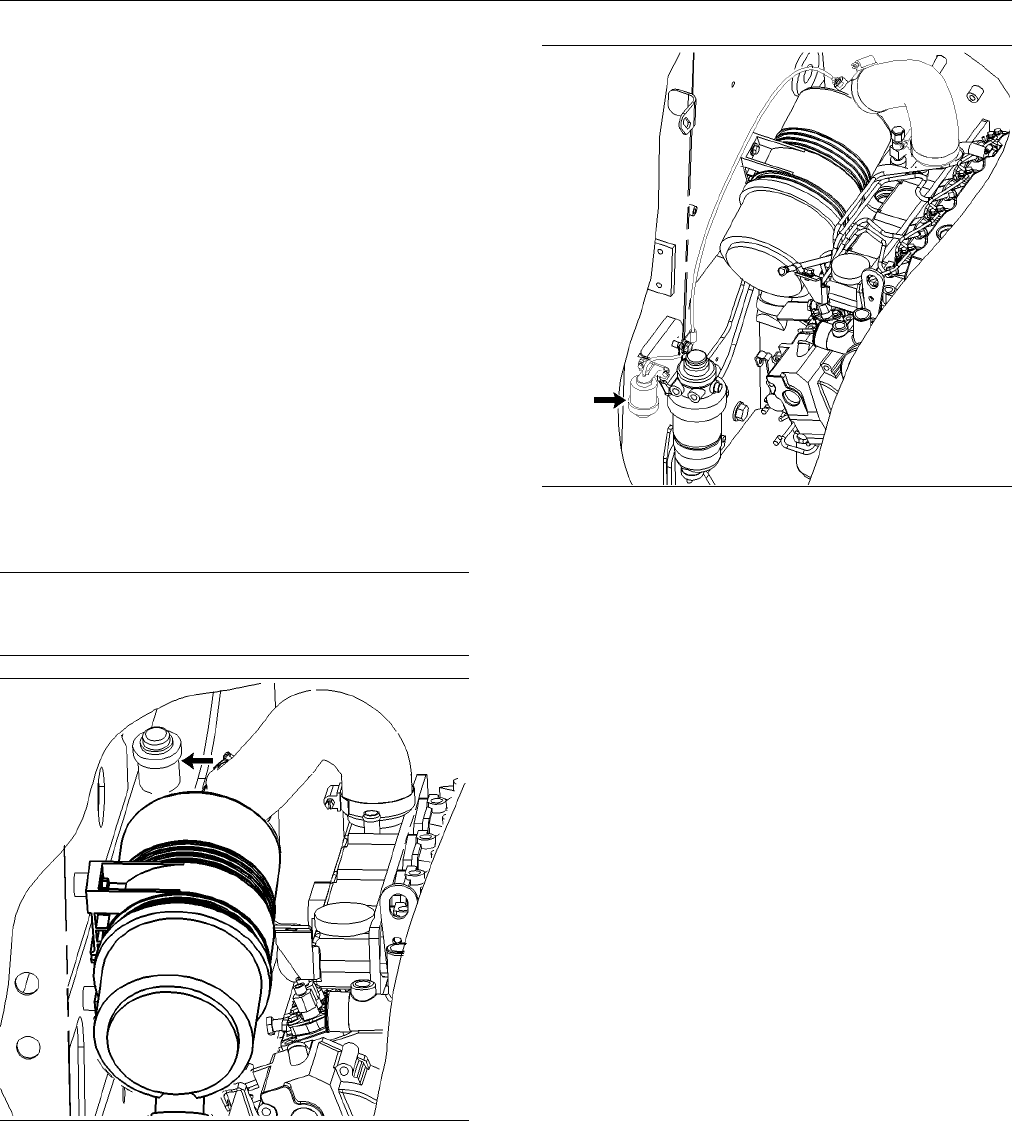

g00929221
Illustration 120
Type 1
g00929224
Illustration 121
Type 2
1. Mount the machine.
2. Fasten the seat belt. Lower the armrest.
3. Start the engine.
4. Run the engine at high idle.
5. Stop the engine.
6. Open the engine access door. Refer to Operation
and Maintenance Manual, “Access Doors and
Covers”.
7. Tilt the radiator upward if it is necessary. Refer to
Operation and Maintenance Manual, “Radiator
Tilting”.
8. Inspect the engine air filter service indicator. If the
yellow piston in the filter service indicator enters
the red zone, service the air cleaner.
Note: See the Operation and Maintenance Manual,
“Engine Air Filter Primary Element - Clean/Replace”.
See the Operation and Maintenance Manual, “Engine
Air Filter Secondary Element - Replace”.
9. Reset the engine air filter service indicator.
10. Tilt the radiator downward.
11. Close the engine access door.
