Refrigerant Dryer - Replace
i01968724
Refrig erant Dryer - R eplac e
(If Equipped)
SMCS Code: 7322-510
Personal injury c an result from contact with refrig-
erant.
Contact with refrigerant can cause frost bite. Keep
face and hands
away to he lp prevent injury.
Protective goggles must always be worn when re-
frigerant lin
es are opened, even if the gauges in-
dicate the system is empty of refrigerant.
Always use pr
ecaution when a fitting is removed.
Slowly loosen the fitting. If the system is still un-
der pressure, release it slowly in a well ventilated
area.
Personal injury or death can result from inhaling
refrigeran
t through a lit cigarette.
Inhaling air conditioner refrigerant gas through a
lit cigaret
te or other smoking method or inhaling
fumes released from a flame contacting air con-
ditioner refrigerant gas, can cause bodily harm or
death.
Do not smoke when servicing air conditioners or
wherever r
efrigerant gas may be present.
Use a certified recovery and recycling cart to prop-
erly remov
e the refrigerant from the air condition-
ing system.
NOTICE
If the refrigerant system has been open to the outside
air (without being plugged) for more than 30 minutes,
the receiver-dryer must be replaced. Moisture will en-
ter an open refrigerant system and cause corrosion
which will lead to component failure.
Refer to Service Manual, SENR5664, “Air
Conditioning and Heating R-134a For All Caterpillar
Machines
” for the proper procedure to change the
receiver-dryer assembly and for the procedure to
reclaim the refrigerant gas.
Note: The receiver-dryer must also be replaced when
the air conditioning system is evacuated.
i01968864
Rollover Protective Structure
(ROPS) and Fal
ling Object
Protective Structure (FO PS) -
Inspect
SMCS Code: 7323-040; 7325-040

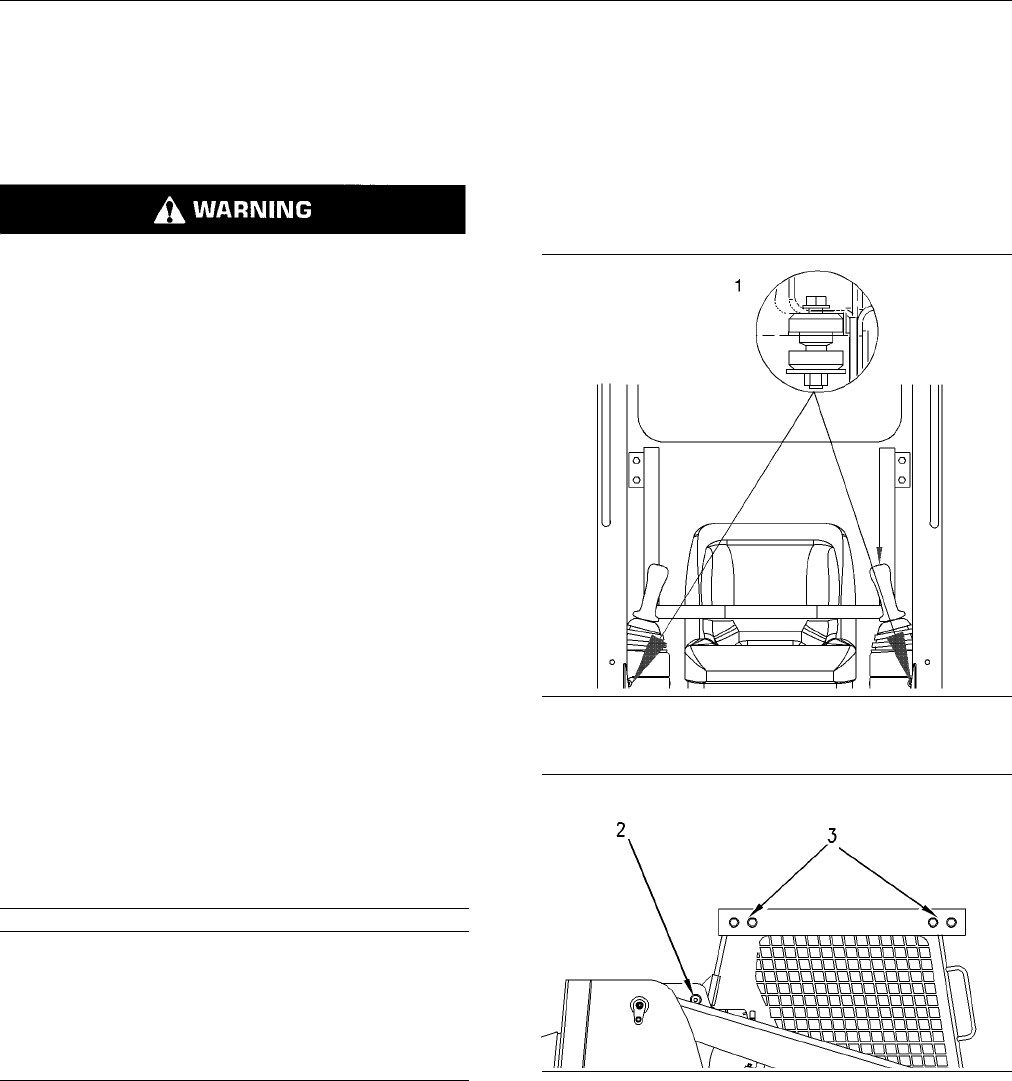

g01022156
Illustration 157
(1) Front RO PS retaining bolt (one bolt per side)
g00925477
Illustration 158
(2) Rear ROPS retaining bolt ( one bolt per side)
(3) R etaining bolts for the FOPS 2
Note: There is a total of four retaining bolts for the
ROPS. There is a total of eight retaining bolts for the
FOPS 2.
