247, 257, 267, 277 and 287 Multi Terrain Loaders Operation and Maintenance Manual Page 91

Operation and Maintenance Manual
SEBU7494-06 91
Maintenance Section
Maintenance Access
5. Raise the lift a
rms until the brace falls onto the
cylinder rod. Slowly lower the lift arms until the
brace stops movement.

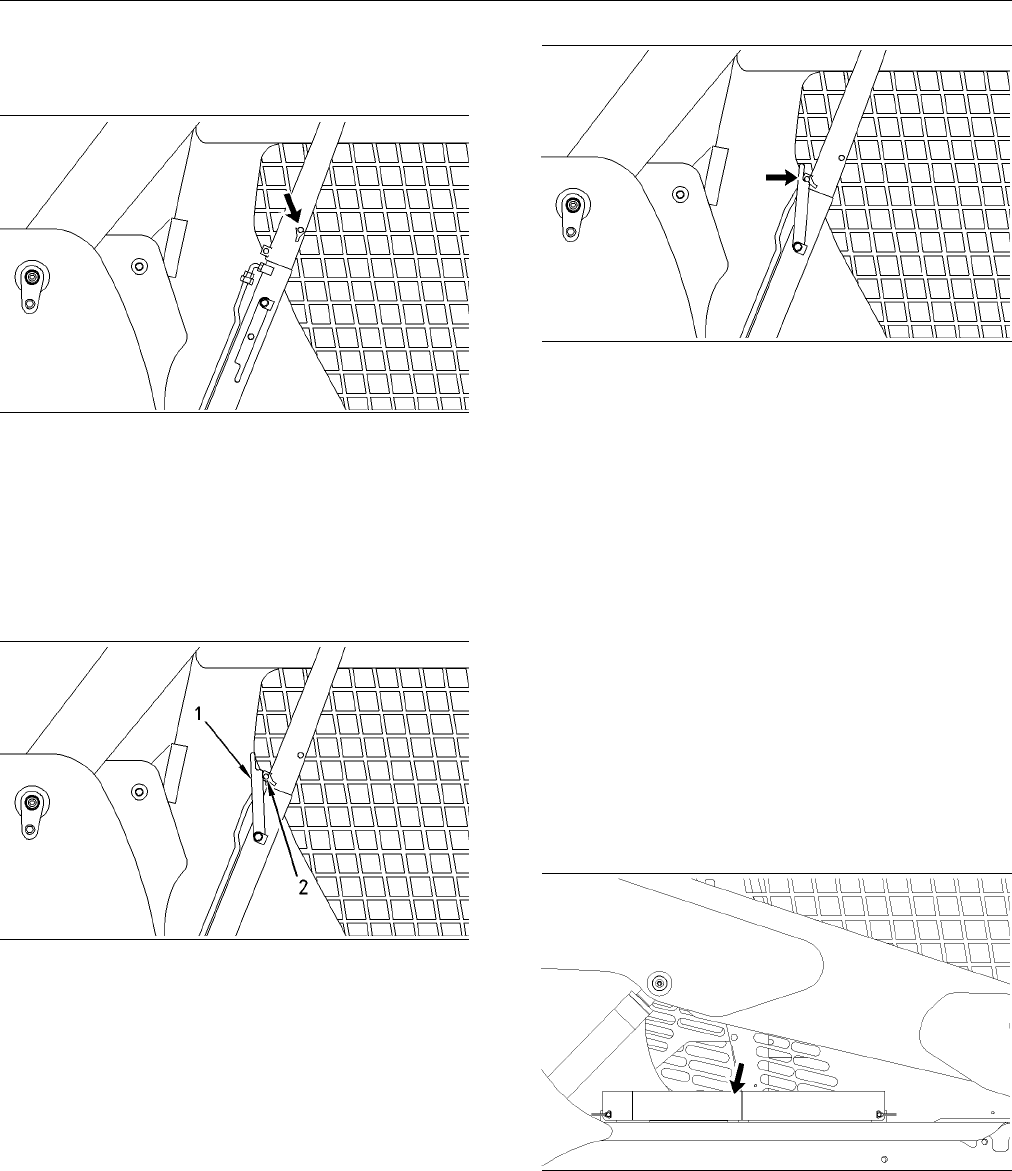

g00952492
Illustrati
on 84
6. Stop the engine. Exit the machine. Secure the
retaining p
in through the brace below the cylinder
rod.
Disengage the Lift Arm Brace
(Radial Li
ft)
g00952586
Illustration 85
1. Remove the retaining pin from the brace and
install the pin (2) in the holding block.
2. Detach and swing the pivot lever (1) clockwise
onto the retaining pin.
3. Mount the machine. Secure the seat belt and
lower the armrest. Start the engine.
g00952609
Illustration 86
4. Slowly raise the loader lift arms until the lever
engages the retaining pin.
5. Slowly lower the lift arms to the ground. Stop the
engine. Exit the machine.
6. Raise and secure the brace to the lift arm with the
retaining p in.
7. Install the pivot lever into the STORED position.
Engage the Lift Arm Brace
(Extended Lift)
1. Empty the work tool. Remove the work tool. Park
the machine on level ground. Raise the lift arms to
maximum height.
2. Remain in the seat with the seat belt fastened until
the brace is installed.
g009302
02
Illustration 87
3. A second person must remove the brace from the
storage position by removing the retaining pins.
